Test Description

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

The numbers below refer to the step numbers on the diagnostic table.

  1. 2. This step begins the procedure that will allow the technician to determine the components responsible for setting DTC C0543.
  2. 3. This step will help determine if there are objects caught in the rear wheels.

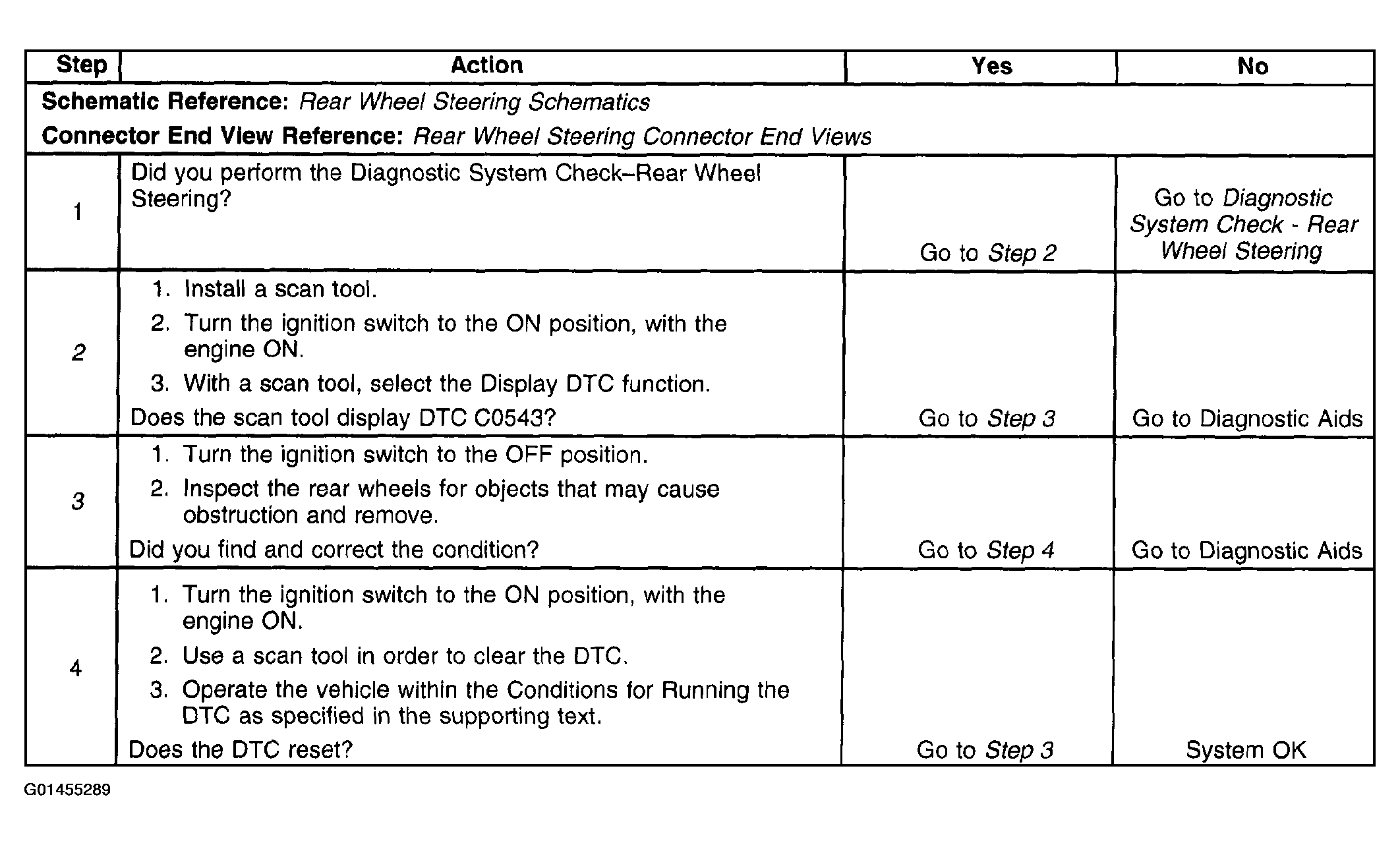

    Fig 1: DTC C0543
    G01455289Courtesy of GENERAL MOTORS CORP.
