Test Description

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

The numbers below refer to the step numbers on the diagnostic table.

  1. 2. This step will help the technician determine if there is an intermittent connection at the harness connector of the rear wheel steering motor.

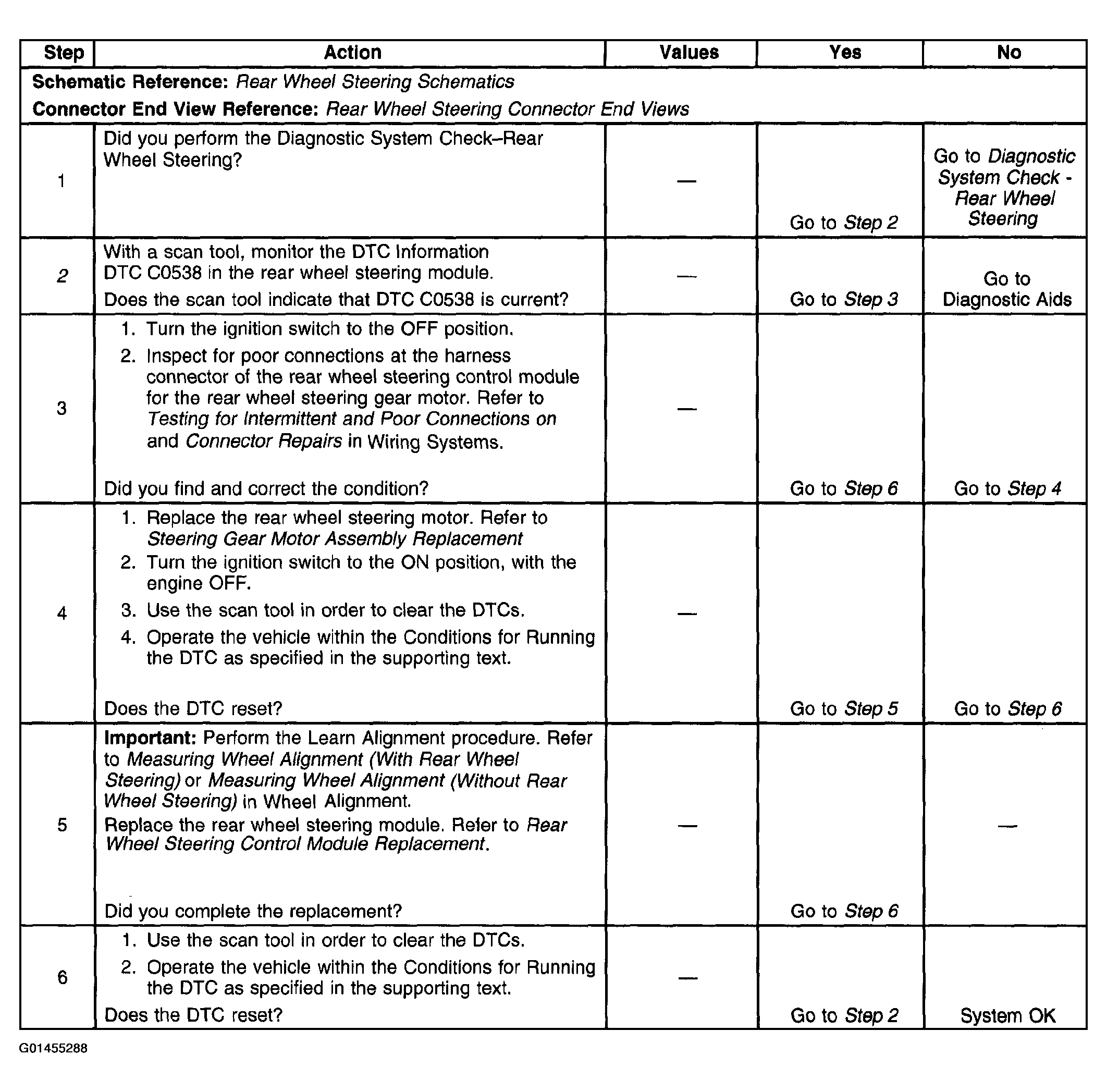

    Fig 1: DTC C0538
    G01455288Courtesy of GENERAL MOTORS CORP.
