Test Description

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

The numbers below refer to the step numbers on the diagnostic table.

  1. 2. This step tests for the proper operation of the rear steering position sensor.
  2. 3. This step tests for the proper operation of the rear steering motor position sensor.
  3. 4. This step performs the diagnostic procedure for the rear steering position sensor.
  4. 5. This step performs the diagnostic procedure for the rear steering motor position sensor.

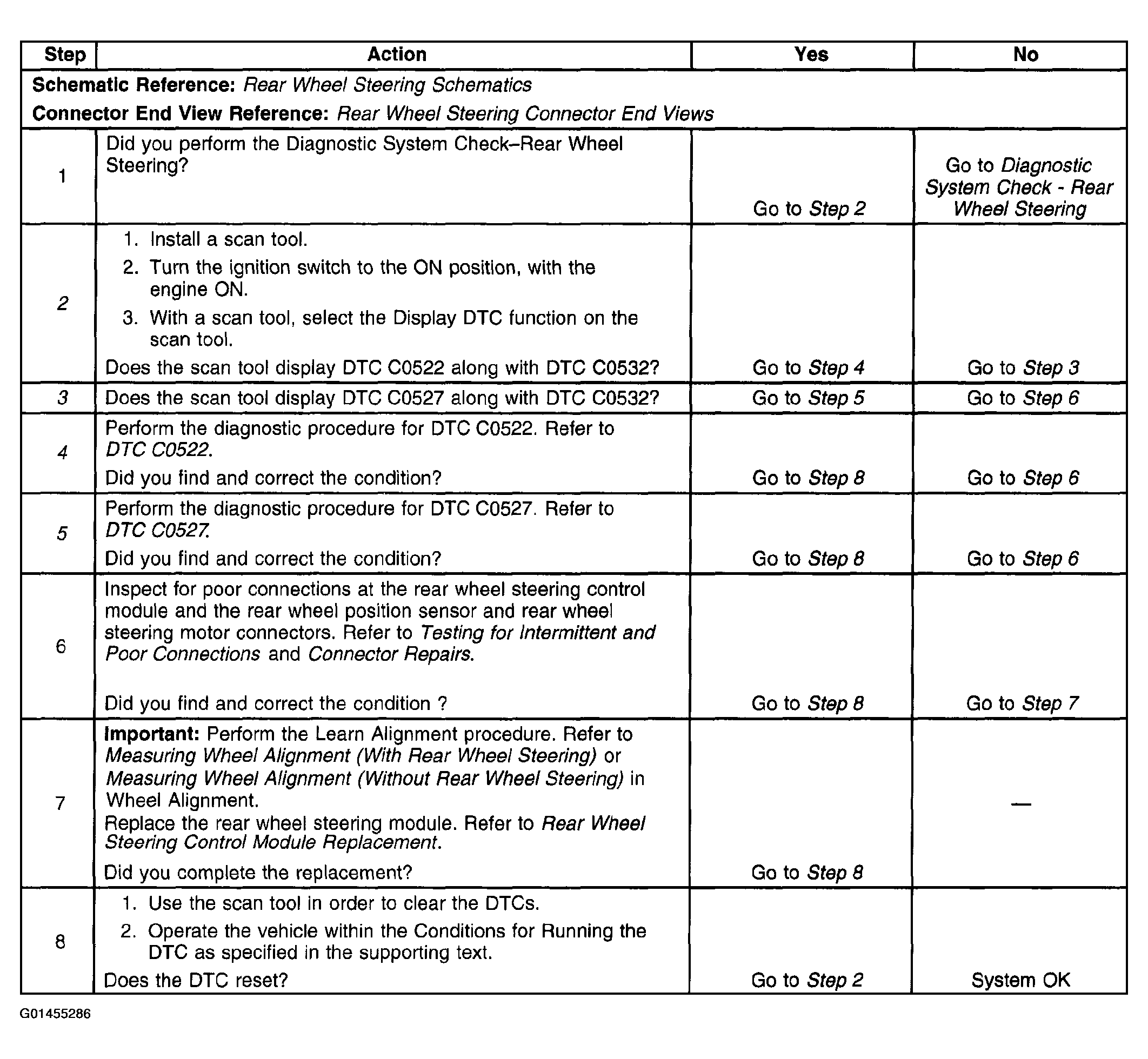

    Fig 1: DTC C0532
    G01455286Courtesy of GENERAL MOTORS CORP.
