Test Description

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

The numbers below refer to the step numbers on the diagnostic table.

  1. 2. This step helps the technician determine if the fault is current.
  2. 3. This step determines if the DTC is the result of an intermittent connection at the control module.

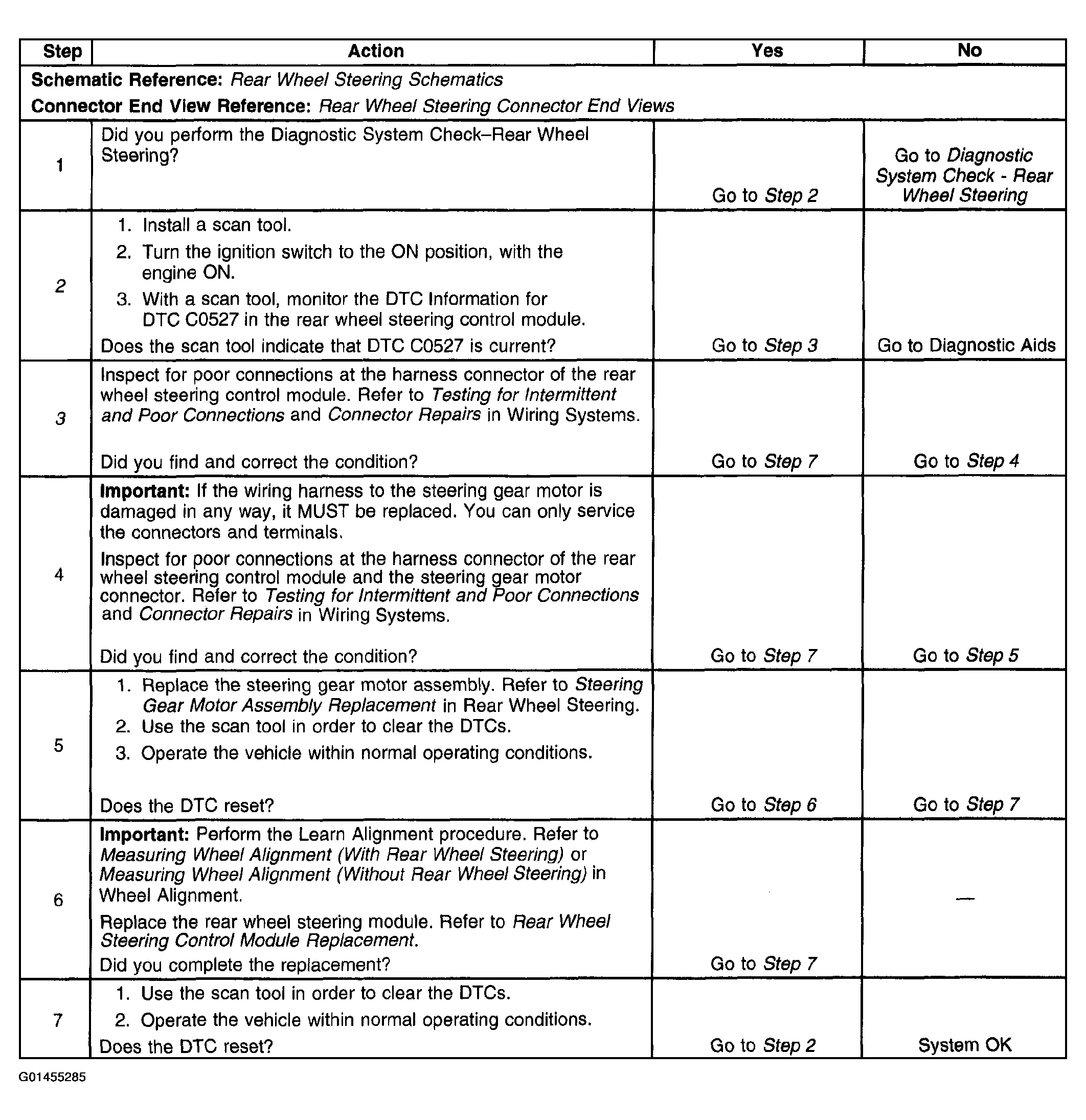

    Fig 1: DTC C0527
    G01455285Courtesy of GENERAL MOTORS CORP.
