Rear Wheel Steering Connector End Views

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

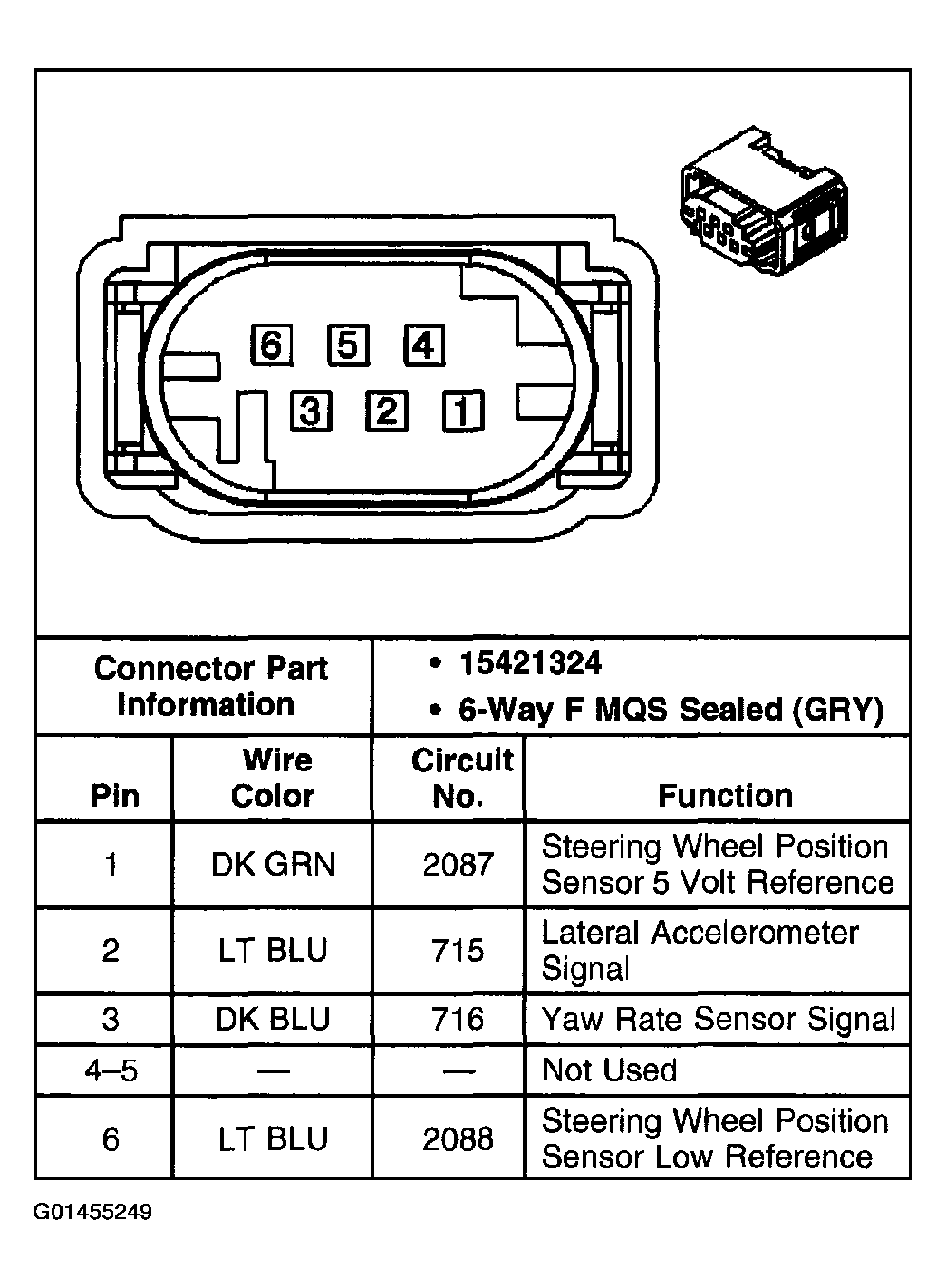

Fig 1: Combination Yaw Rate Sensor/Lateral Accelerometer Sensor

G01455249

Courtesy of GENERAL MOTORS CORP.

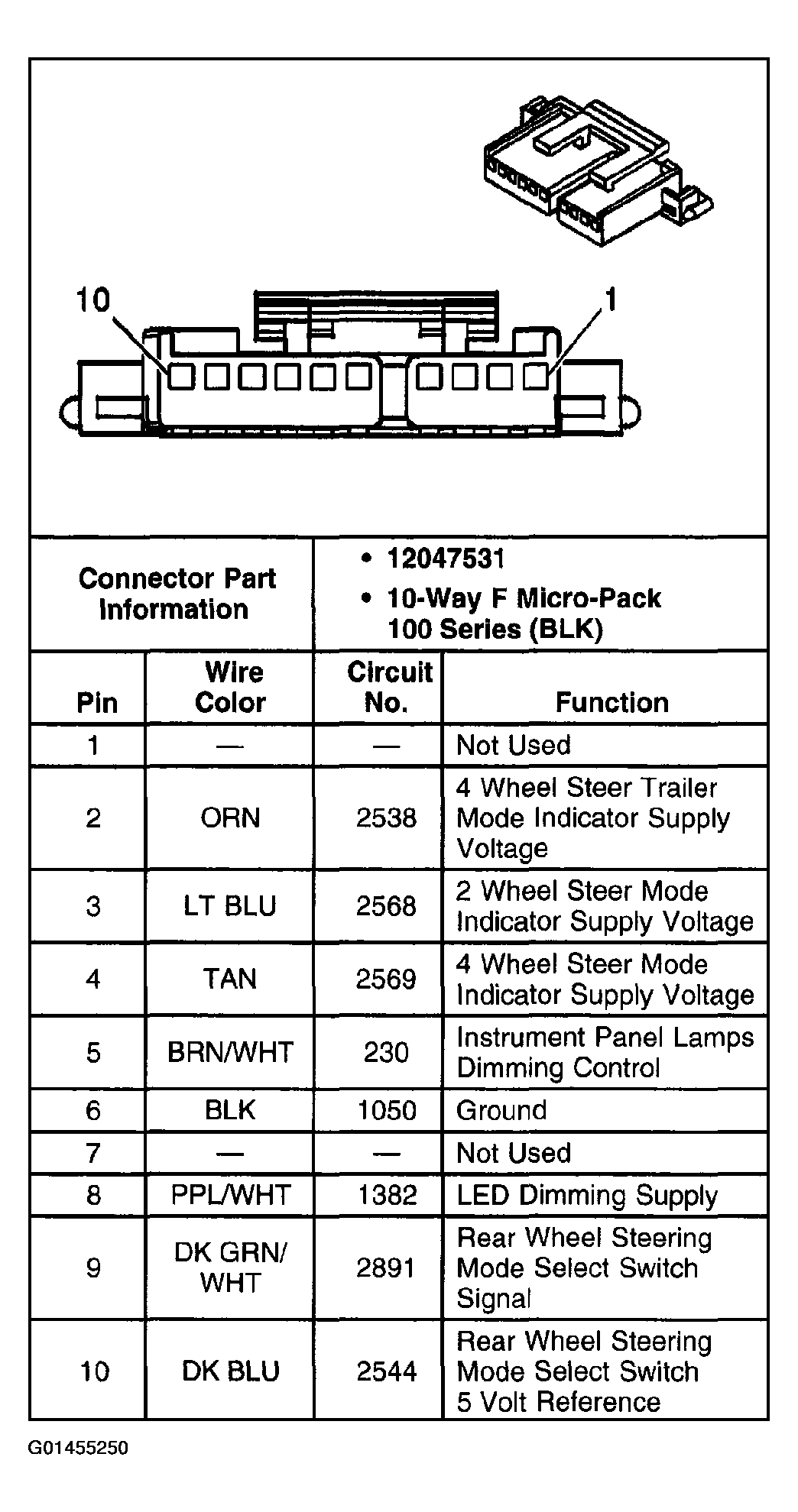

Fig 2: Rear Wheel Steering Mode Select Switch

G01455250

Courtesy of GENERAL MOTORS CORP.

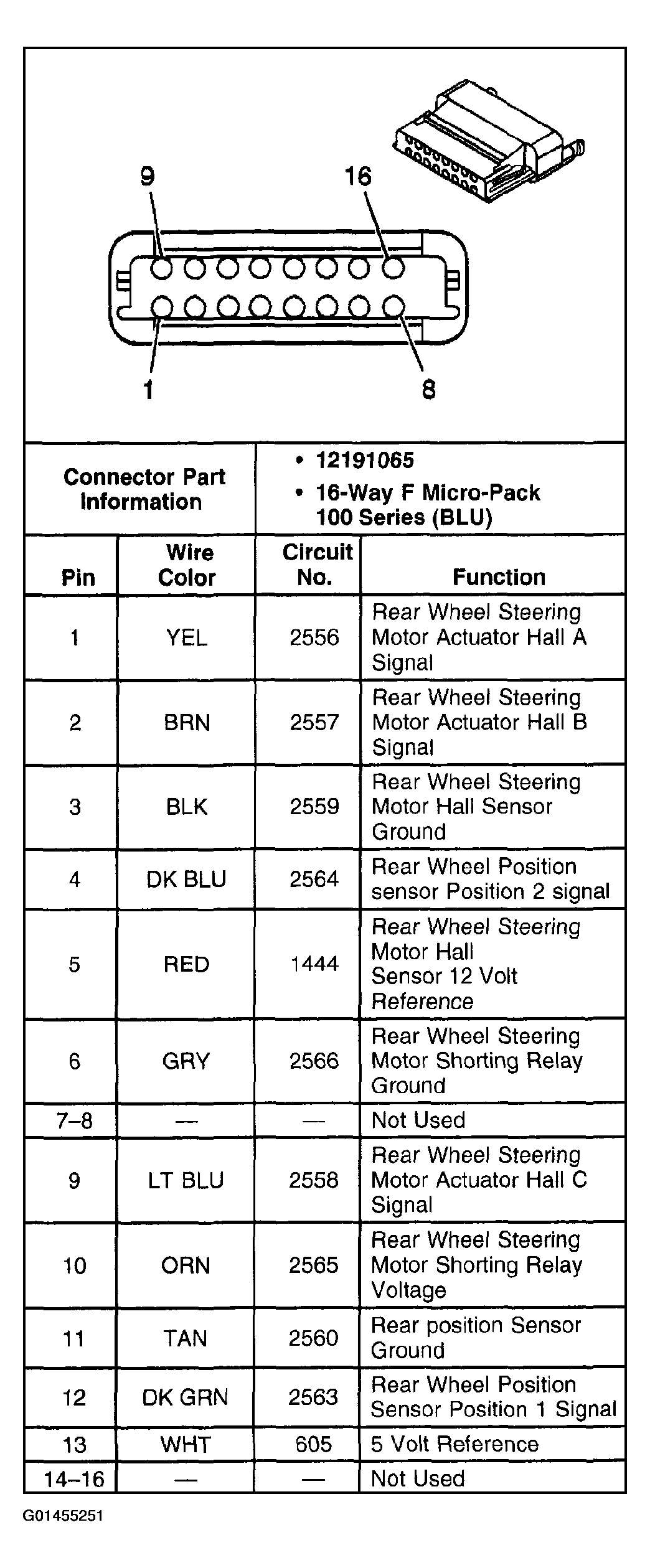

Fig 3: Rear Wheel Steering Control Module - C1

G01455251

Courtesy of GENERAL MOTORS CORP.

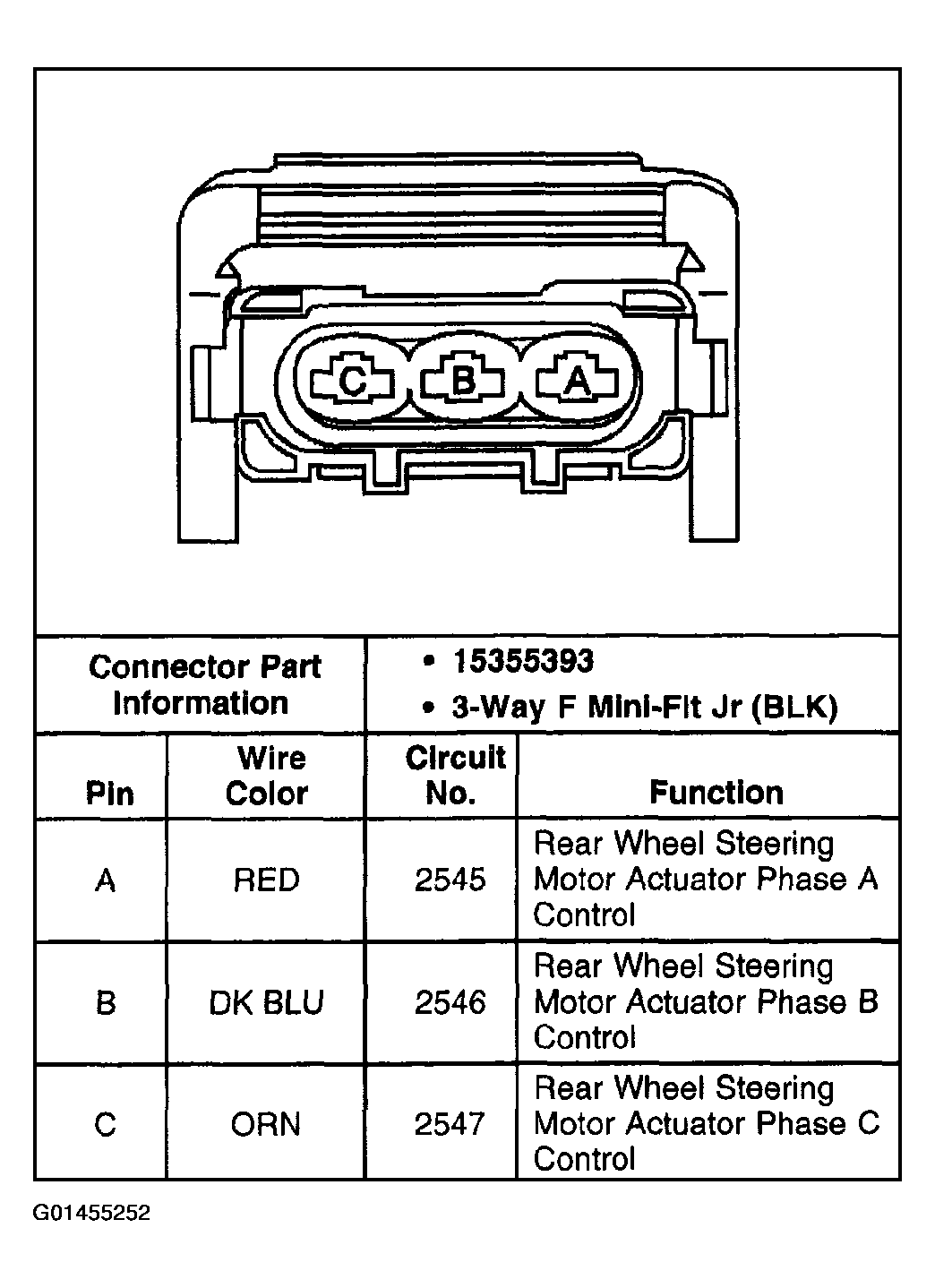

Fig 4: Rear Wheel Steering Control Module - C2

G01455252

Courtesy of GENERAL MOTORS CORP.

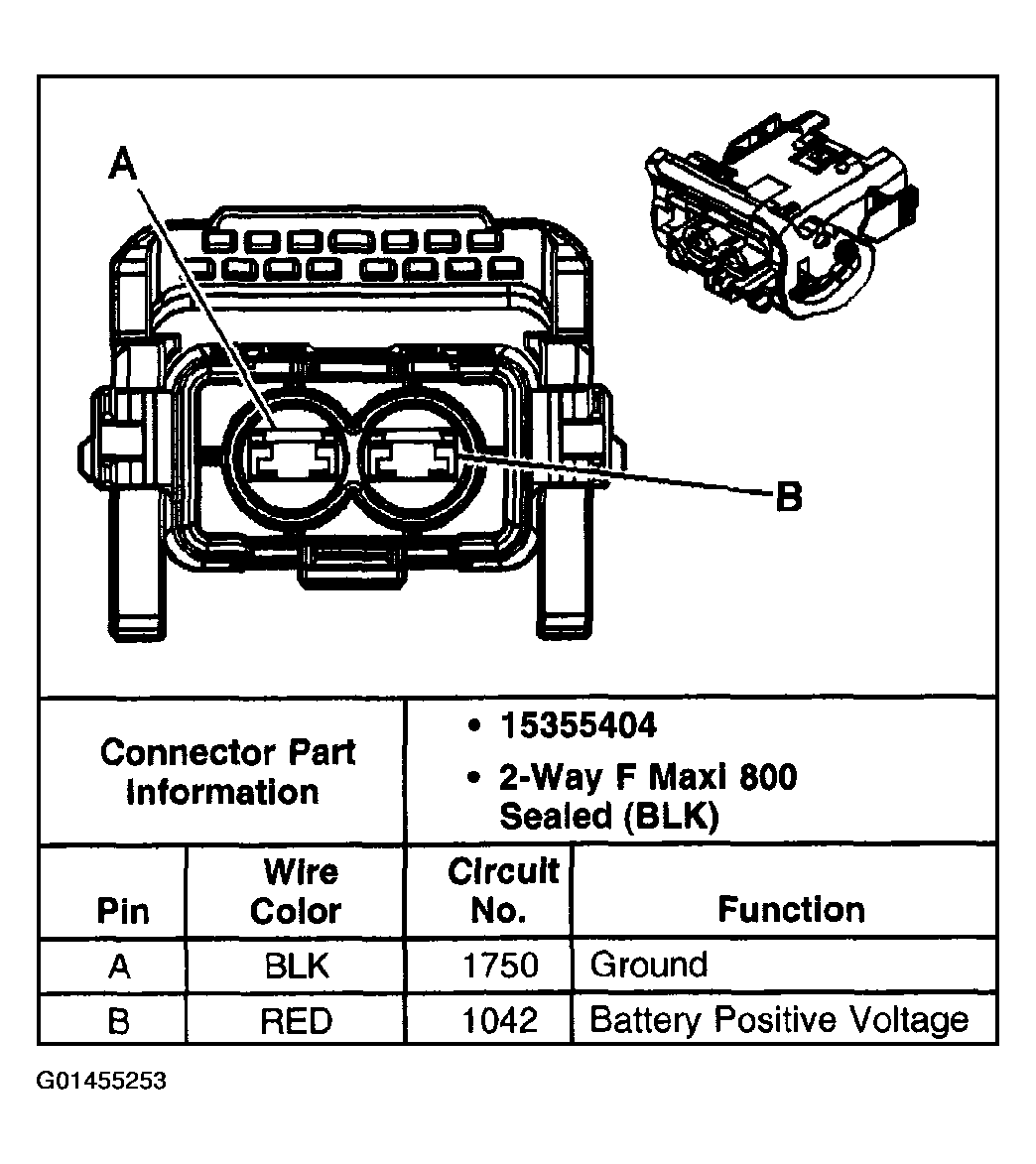

Fig 5: Rear Wheel Steering Control Module - C3

G01455253

Courtesy of GENERAL MOTORS CORP.

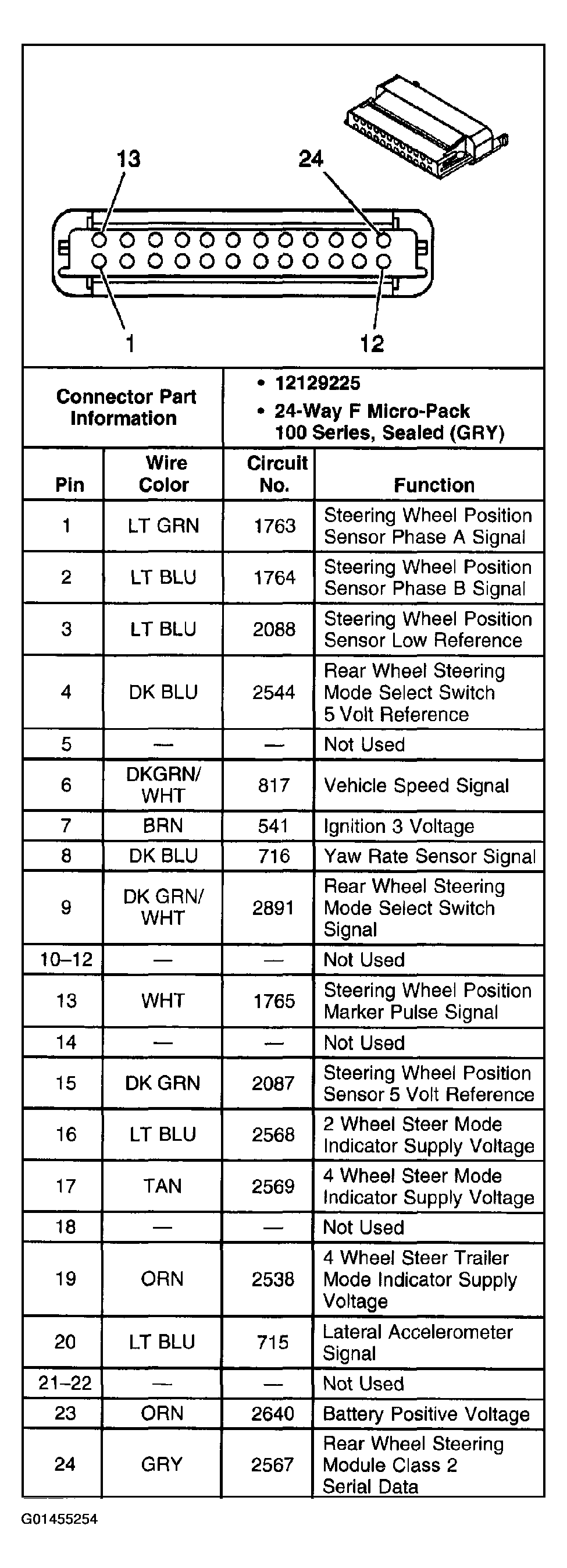

Fig 6: Rear Wheel Steering Module - C4

G01455254

Courtesy of GENERAL MOTORS CORP.

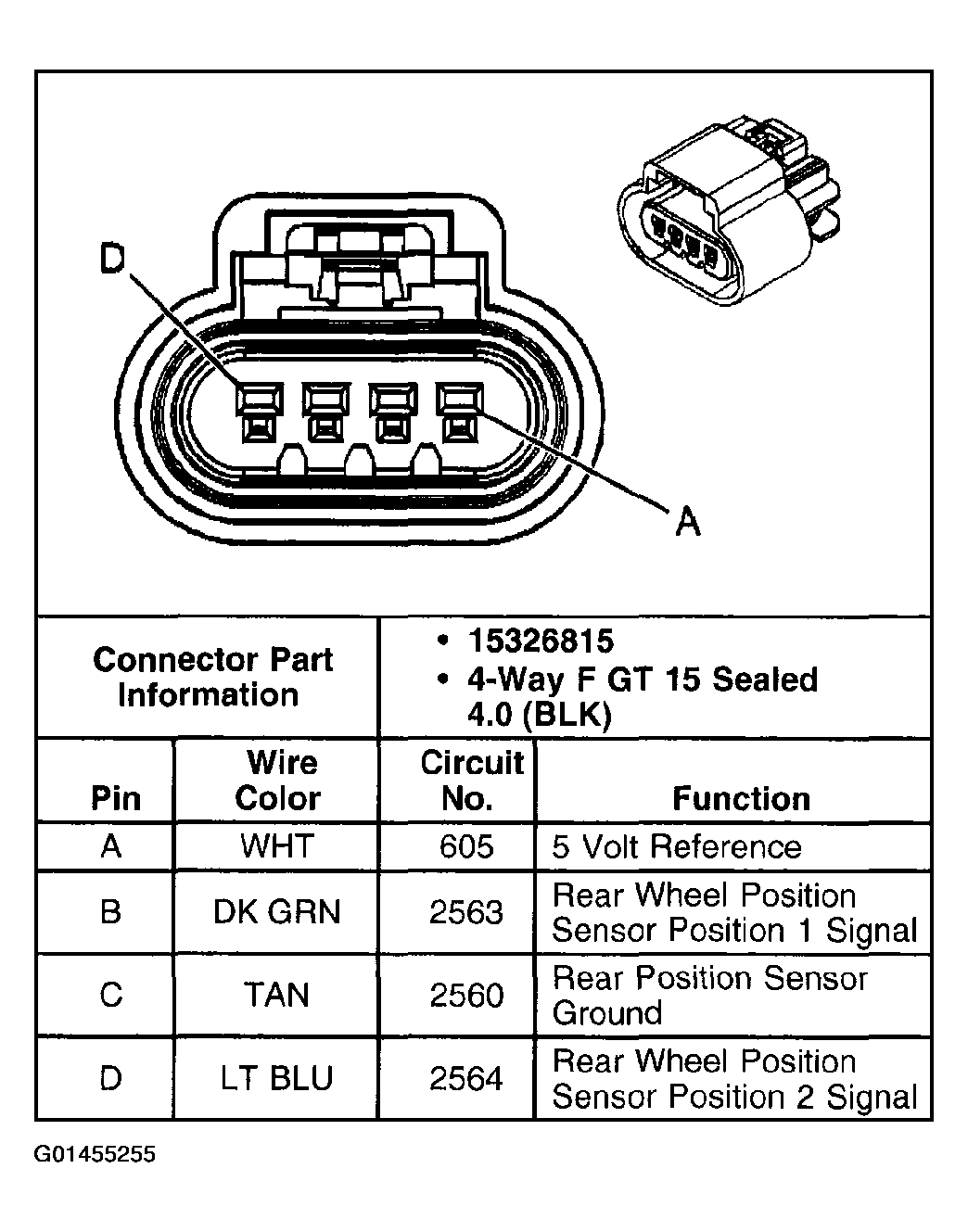

Fig 7: Rear Wheel Position Sensor

G01455255

Courtesy of GENERAL MOTORS CORP.

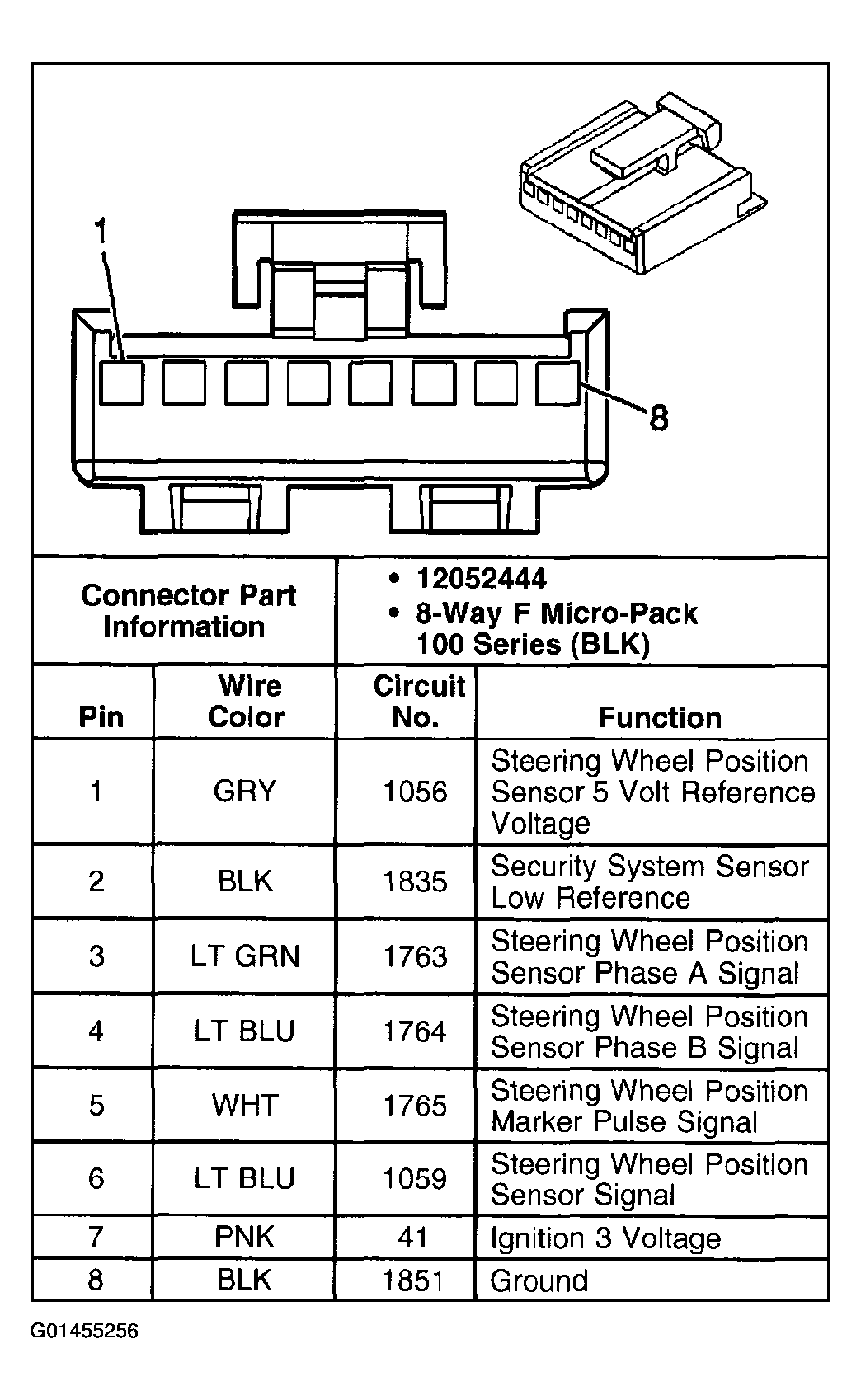

Fig 8: Steering Wheel Speed/Position Sensor

G01455256

Courtesy of GENERAL MOTORS CORP.
