Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the headliner. Refer to HEADLINER REPLACEMENT in Interior Trim.
  2. Remove the sunshade stop screw from the sunshade track.
  3. To remove the sunshade stop, press the sunshade stop locking tab in and slide sunshade stop out of the sunshade track.

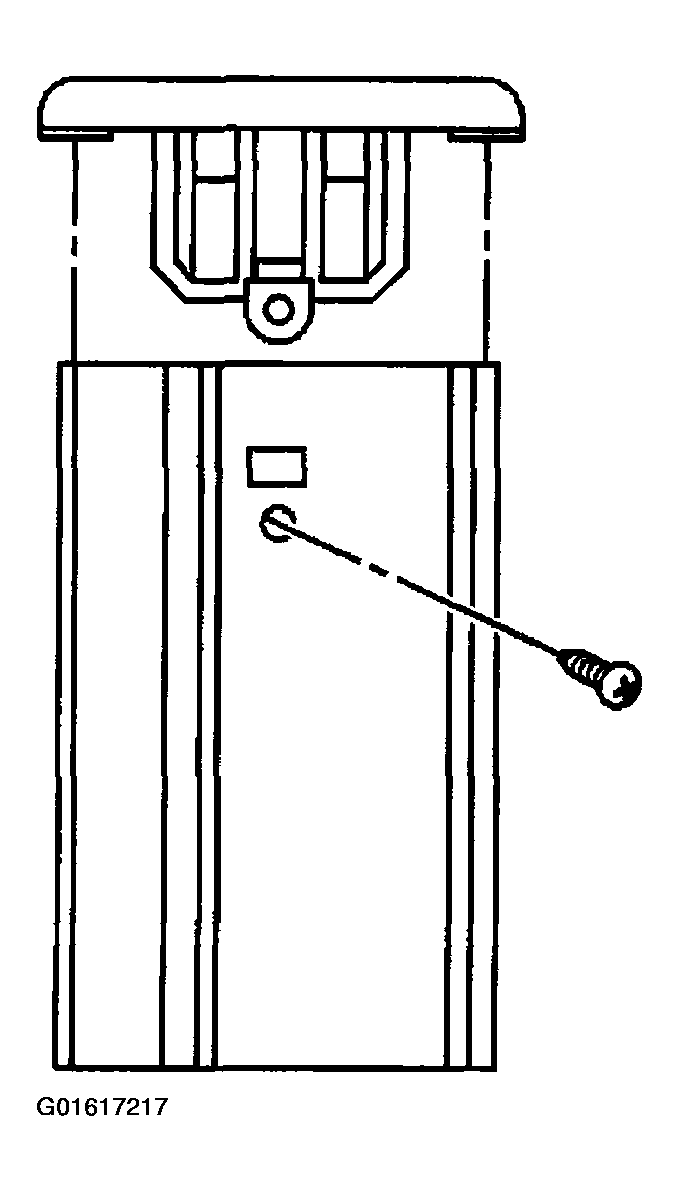

    Fig 1: Sunshade Stop Screw
    G01617217Courtesy of GENERAL MOTORS CORP.
