Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the sunshade stop to the sunshade track.
  2. Press the sunshade stop into the sunshade track until fully seated.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  3. Install the sunshade stop screw to the sunshade track.

    Tighten

    Tighten the sunshade stop screw to 2 N.m (18 lb in).

  4. Install the headliner. Refer to HEADLINER REPLACEMENT in Interior Trim.

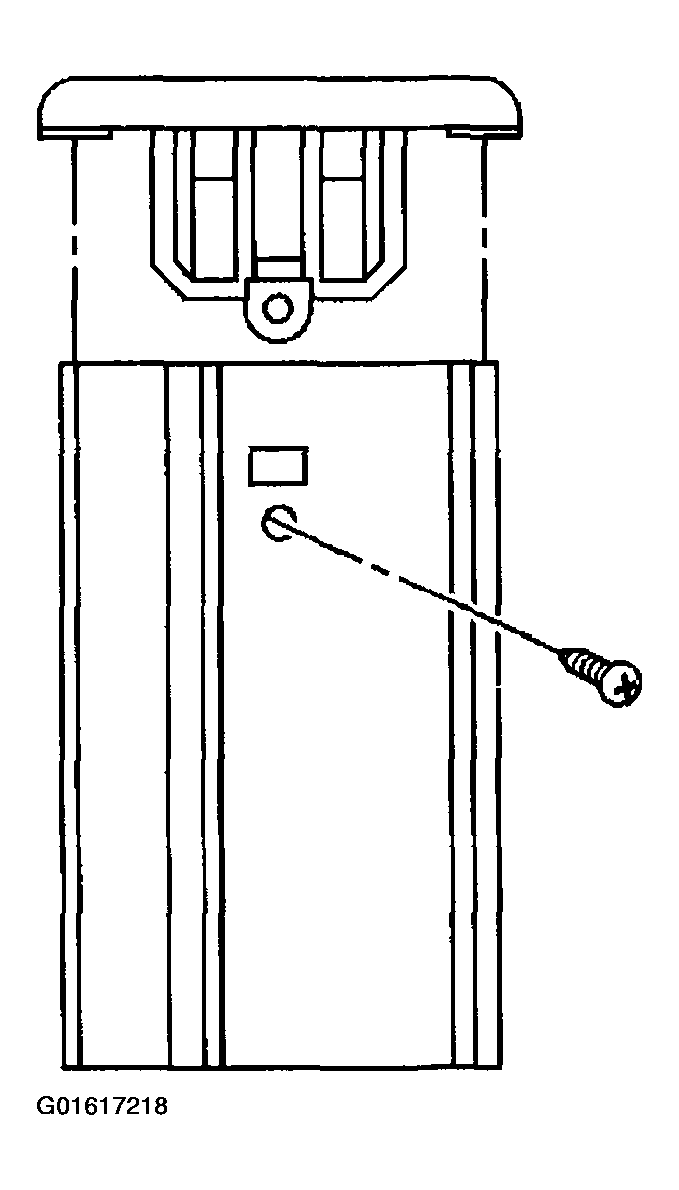

    Fig 1: Sunshade Stop Screw
    G01617218Courtesy of GENERAL MOTORS CORP.
