Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the sunroof glass panel from the sunroof module. Refer to Sunroof Glass Panel Replacement .
  2. Fully close the sunshade.
  3. From the top of the vehicle, use your thumbs to push the sunshade retainers towards the center of the vehicle.
    Fig 1: Sunshade Retainers
    G01617213Courtesy of GENERAL MOTORS CORP.
  4. Lift upward and slightly forward on the sunshade to clear the rear brace.
  5. Remove the sunshade from the sunroof module.

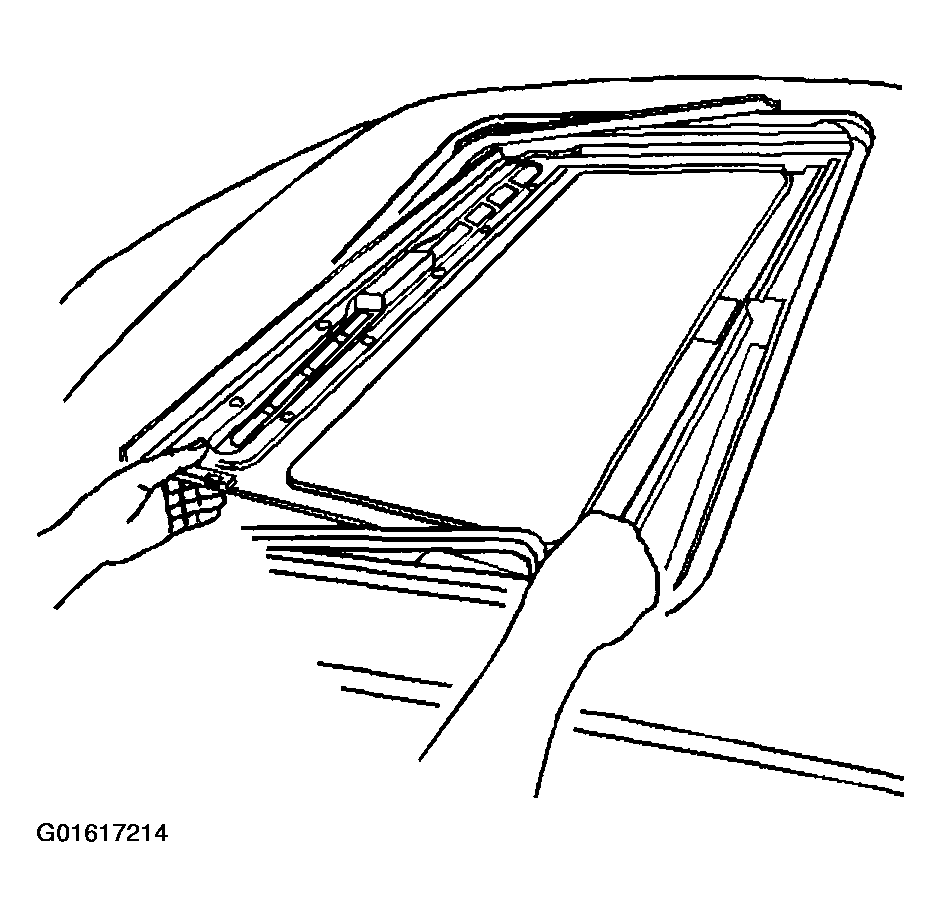

    Fig 2: Sunshade Panel
    G01617214Courtesy of GENERAL MOTORS CORP.
