Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. From the outside of the vehicle, install the front of one side of the sunshade retainers into the sunshade track.
  2. Lower the sunshade to clear the rear brace then install the rear retainer into the track.

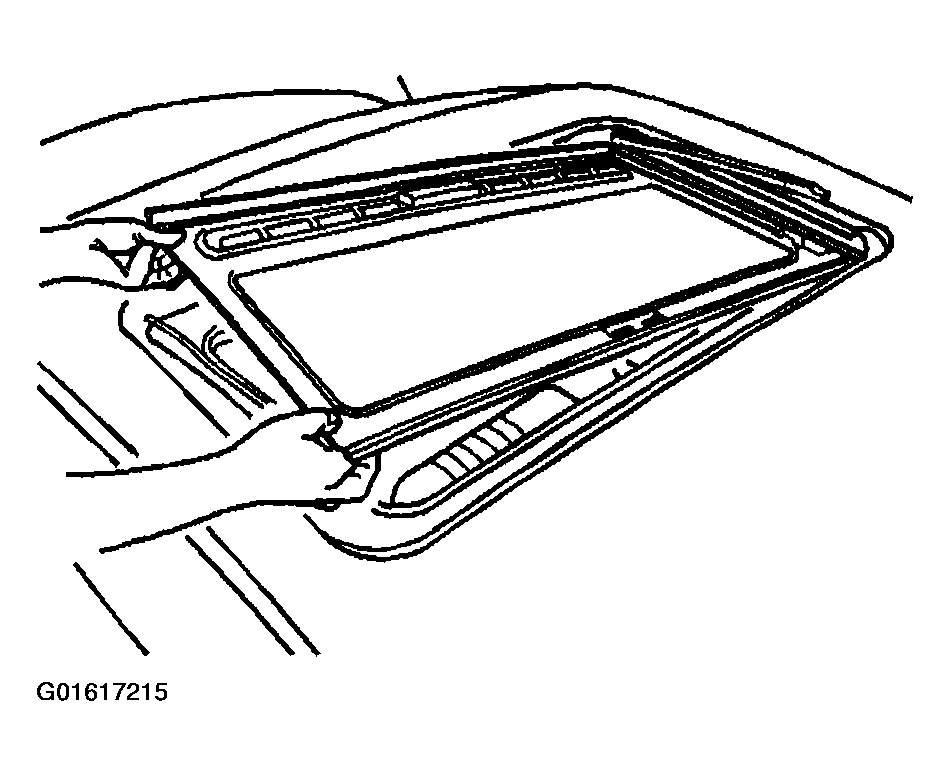

    Fig 1: Sunshade Panel
    G01617215Courtesy of GENERAL MOTORS CORP.
  3. While pushing in the sunshade retainers push down and position the opposite side retainers into sunshade track.
  4. Inspect the sunshade for proper operation.
  5. Install the sunroof glass panel. Refer to Sunroof Glass Panel Replacement .
    Fig 2: Sunshade Retainers
    G01617216Courtesy of GENERAL MOTORS CORP.
