Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the sunshade panel fully rearward.
  2. Position the sunroof glass panel to the vent position.
  3. Remove the sunroof glass panel screws from the sunroof glass panel.
  4. Remove the sunroof glass panel from the sunroof module.

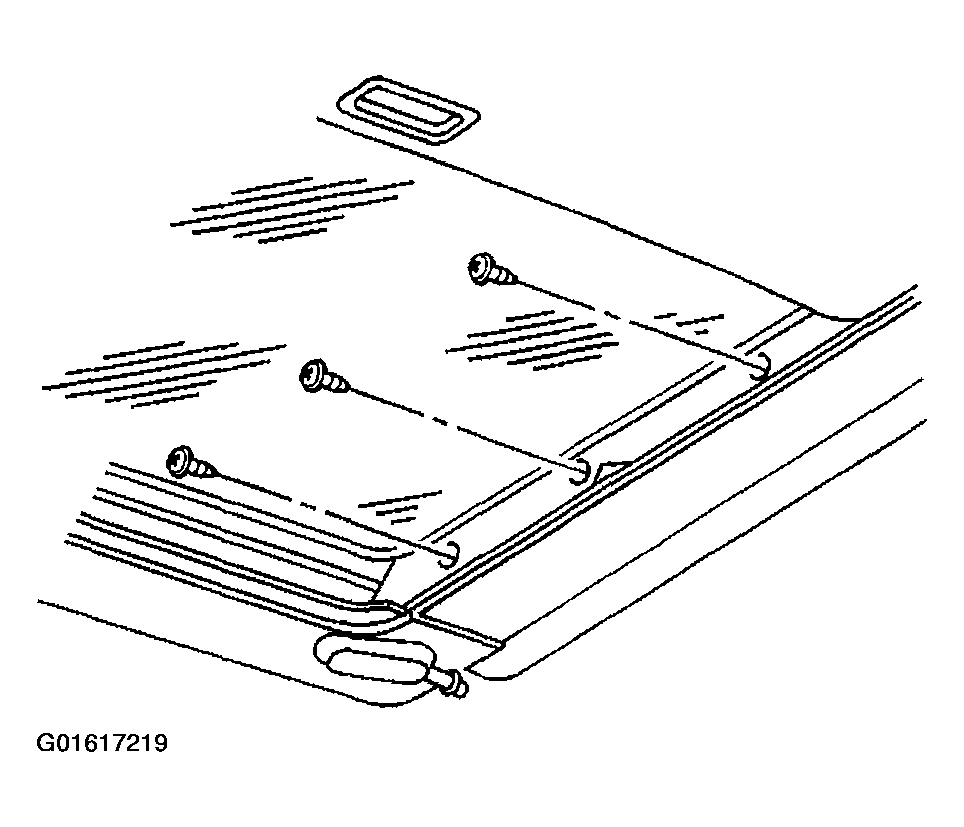

    Fig 1: Sunroof Glass Panel Screws
    G01617219Courtesy of GENERAL MOTORS CORP.
