Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the sunroof glass panel to the sunroof module.

    Ensure that the information logo stencil is towards the rear of the sunroof opening.

    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the sunroof glass panel screws to the sunroof glass panel.

    Tighten

    Tighten the sunroof glass panel screws to 4 N.m (35 lb in).

  3. Adjust the sunroof glass panel as necessary. Refer to Sunroof Glass Height and Opening Fit Adjustment .
  4. Inspect the sunroof glass panel for proper operation.

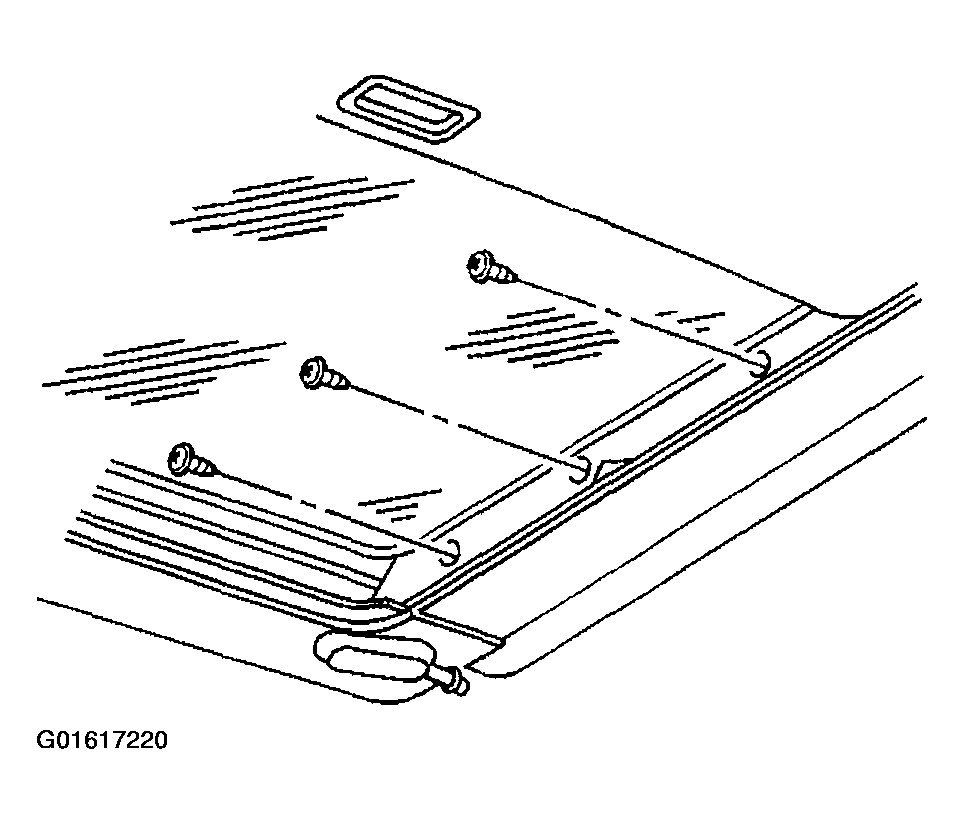

    Fig 1: Sunroof Glass Panel Screws
    G01617220Courtesy of GENERAL MOTORS CORP.
