Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Bravada, 2002 GMC Envoy XL, 2002 GMC Envoy, and 2002 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the radiator inlet hose from the water outlet housing. Refer to Radiator Hose Replacement - Outlet (Body VIN Code 3) .
  2. Remove the power steering pump bracket. Refer to POWER STEERING PUMP in Power Steering System.
  3. Remove the water outlet housing bolts.

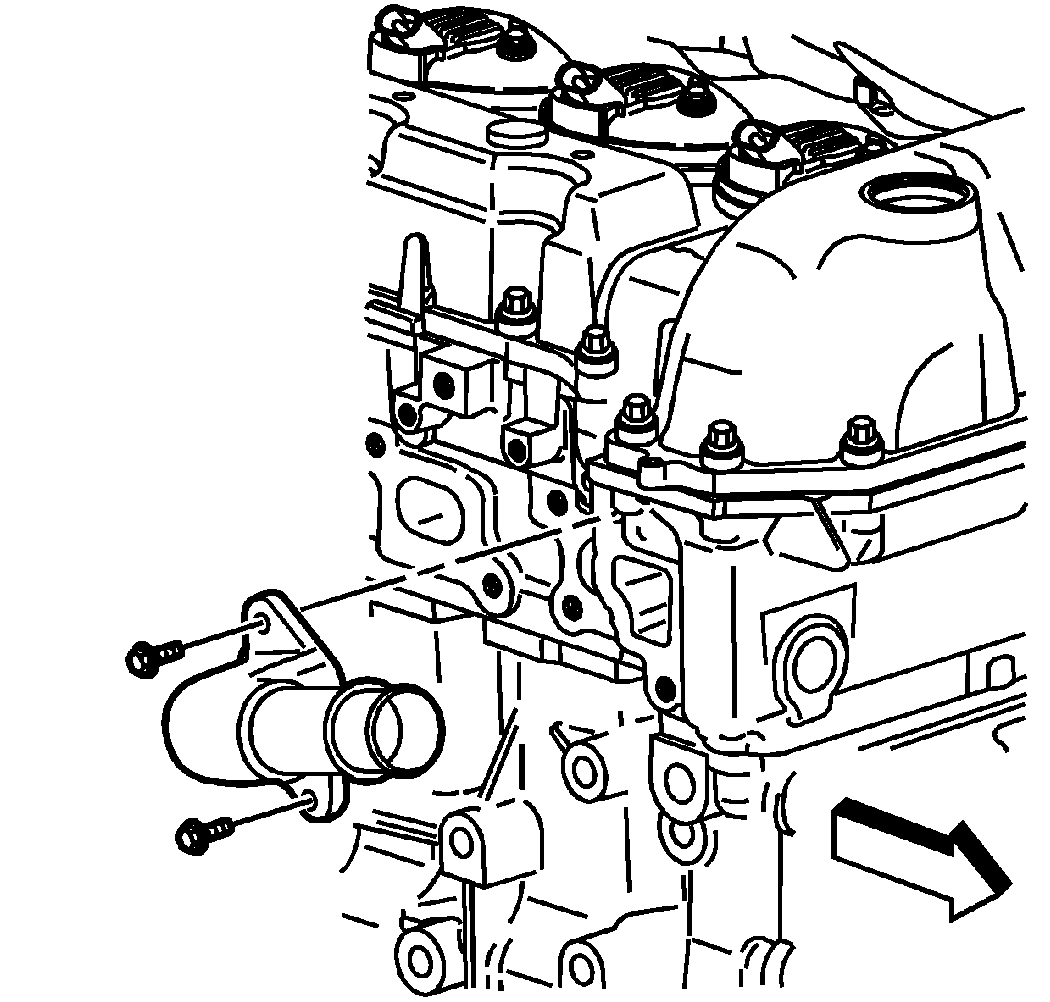

    Fig 1: View Of Water Outlet
    GM637653Courtesy of GENERAL MOTORS CORP.
  4. Remove the water outlet housing and seal. Discard the old seal.
