Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Bravada, 2002 GMC Envoy XL, 2002 GMC Envoy, and 2002 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Drain the engine coolant. Refer to Draining and Filling Cooling System .
  2. Reposition the inlet radiator hose clamp (2) at the radiator using J 38185  .

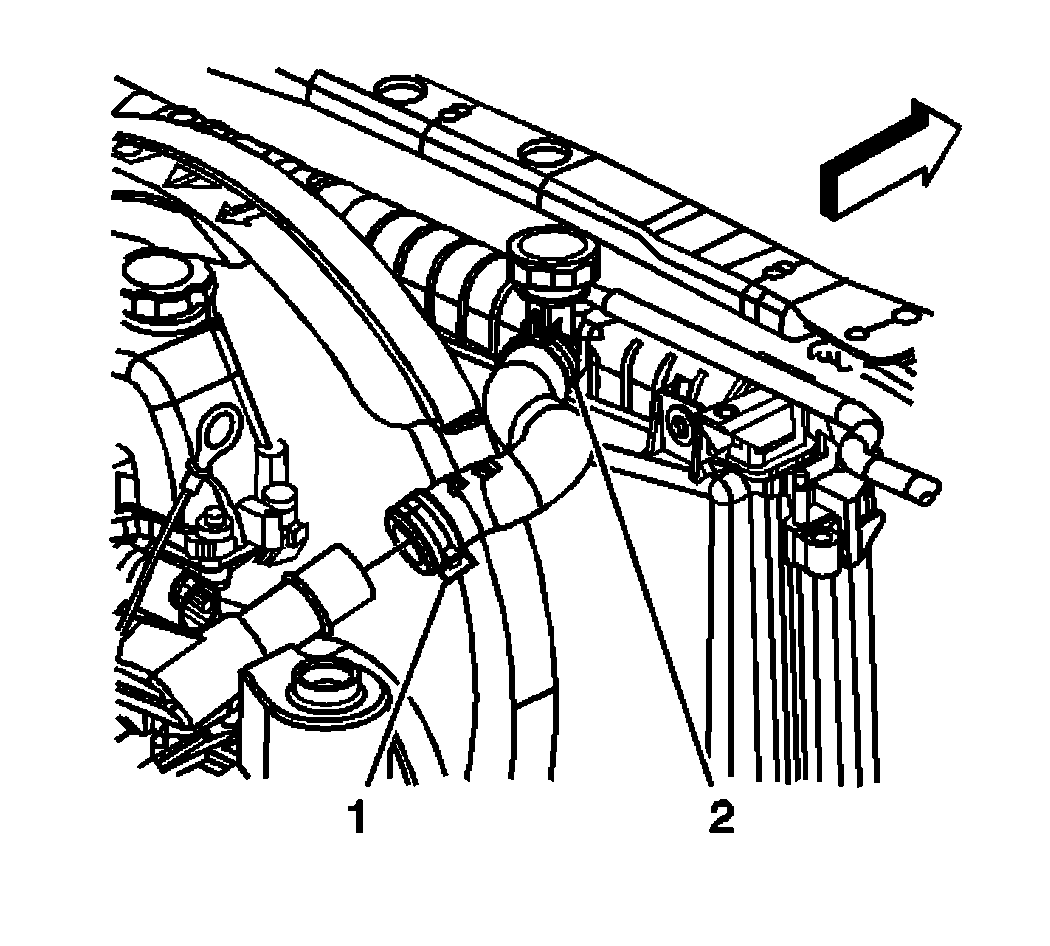

    Fig 1: View Of Radiator Hose Clamps
    GM753673Courtesy of GENERAL MOTORS CORP.
  3. Remove the inlet radiator hose from the radiator.
  4. Reposition the inlet radiator hose clamp (1) at the engine outlet using J 38185  .
  5. Remove the inlet radiator hose from the engine.
