Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Bravada, 2002 GMC Envoy XL, 2002 GMC Envoy, and 2002 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the inlet radiator hose clamps to the radiator hose (1).
  2. Install the inlet radiator hose (1) to the radiator.

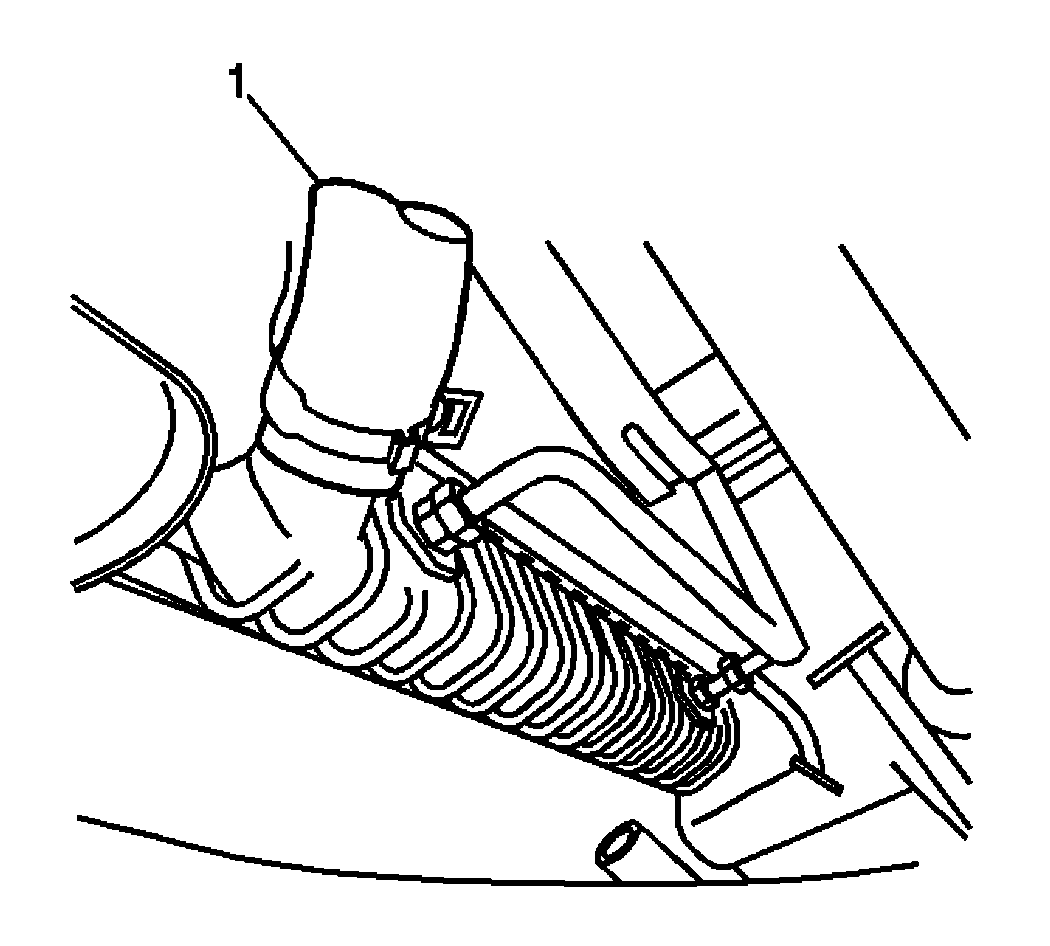

    Fig 1: View Of Radiator Hose
    GM750179Courtesy of GENERAL MOTORS CORP.
  3. Reposition the inlet radiator hose clamp using J 38185  .
  4. Install the lower radiator support shield, if equipped. Refer to RADIATOR SUPPORT SHIELD REPLACEMENT in Frame and Underbody.
  5. Lower the vehicle.
  6. Install the inlet radiator hose to the thermostat (1).

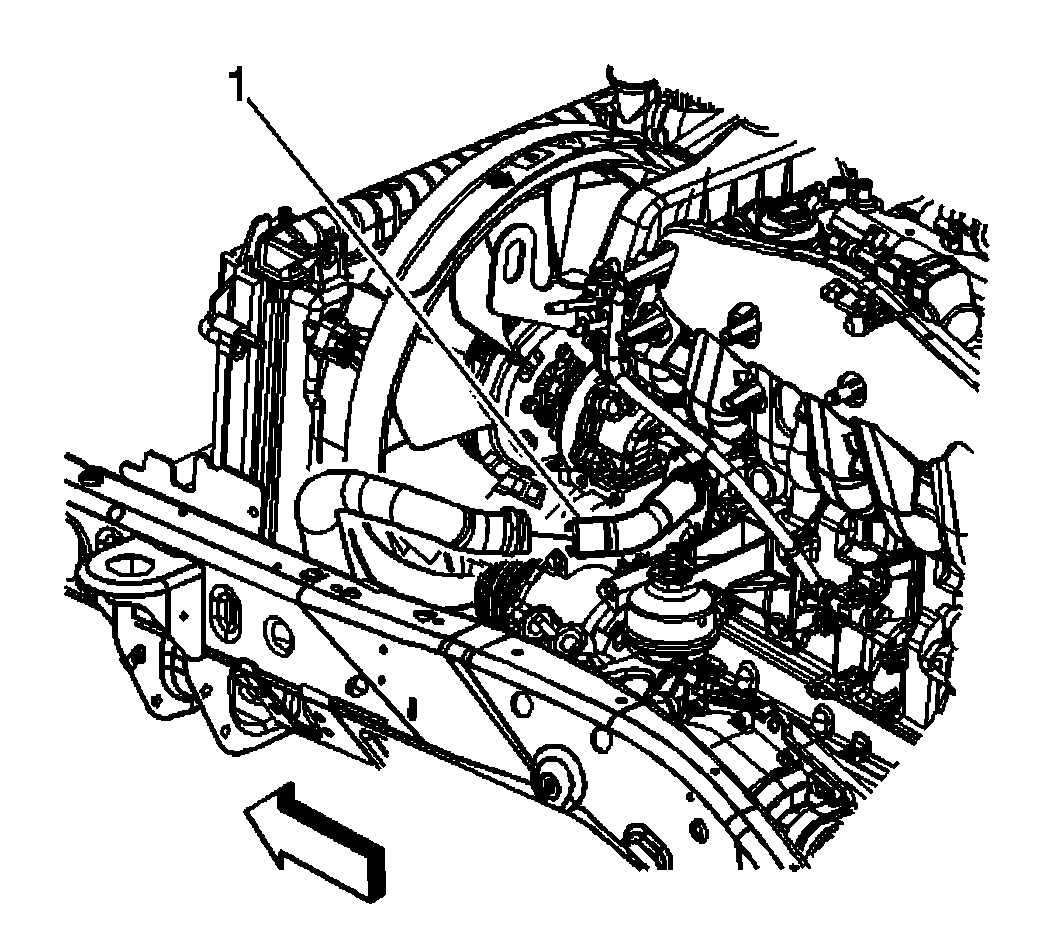

    Fig 2: Removing/Installing Radiator Hose To Thermostat
    GM753670Courtesy of GENERAL MOTORS CORP.
  7. Reposition the inlet radiator hose using J 38185  .
  8. Fill the cooling system. Refer to Draining and Filling Cooling System .
