Three-Dimensional Measurements

WARNING: This page is about a different car, the 2002 Oldsmobile Bravada, 2002 GMC Envoy XL, 2002 GMC Envoy, and 2002 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

Three-dimensional measurements are provided in the absences of dimension information from your equipment supplier. Universal 3-dimensional measuring equipment is required to use these numbers. You may need to adjust the height dimensions to match the datum height of your equipment. Only the width dimensions can be used to measure point-to-point. All holes, slots and fasteners are measured from the center.

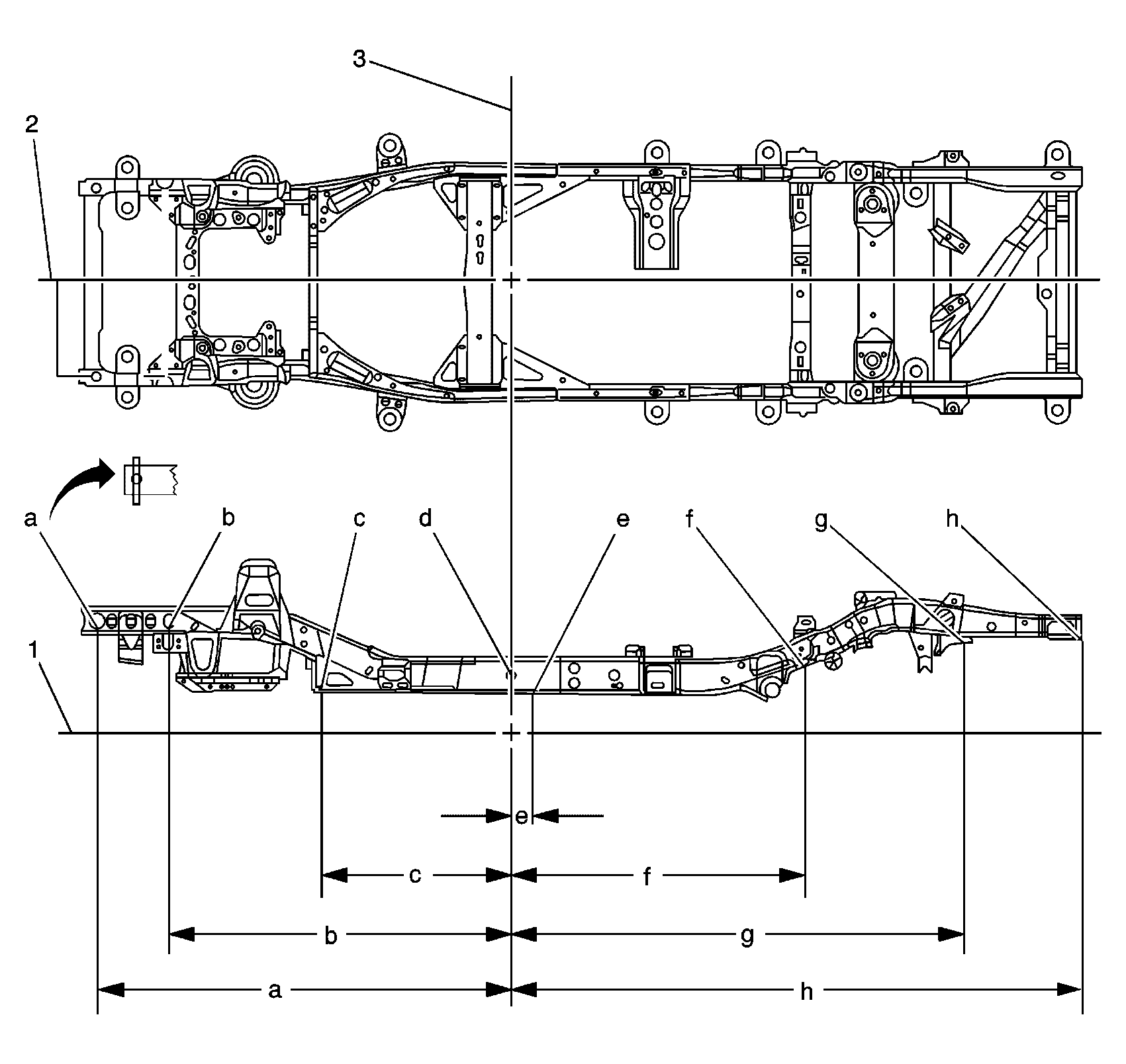

Fig 1: Three-Dimensional Frame Measurements (Trailblazer, Envoy, Bravada)

Courtesy of GENERAL MOTORS CORP.

Dimensions - Frame (Trailblazer, Envoy, Bravada)

Location	Description	Length	Width	Height
1	Datum Line	0	0	0
2	Center Line	0	0	0
3	Zero Line	0	0	0
a	Front Bumper Mounting Hole	1895 mm	416 mm	546 mm
b	Die Mark Arrow	1545 mm	416 mm	552 mm
c	Gusset Hole	837 mm	322 mm	295 mm
d	Gage Hole	0 mm	541 mm	379 mm
e	Gage Hole	55 mm	503 mm	313 mm
f	Gage Hole	1389 mm	495 mm	449 mm
g	Gage Hole	2100 mm	497 mm	569 mm
h	Side Member Rail RR	2626 mm	537 mm	569 mm
2WD shown; 4WD dimensions are the same, graphics similar. All dimensions are measured in millimeters, from a zero line, center line, and a common datum. All dimensions are symmetrical, unless otherwise specified.
