Point to Point Measurements
WARNING: This page is about a different car, the 2002 Oldsmobile Bravada, 2002 GMC Envoy XL, 2002 GMC Envoy, and 2002 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
Point-to-point measurements are for reference only. Use these measurements for diagnosis for validating. Point-to-point measurements do not afford the accuracy that 3-Dimensional measuring systems have. Point-to-point measurements are duplicated with tram bar pointers set at equal lengths. All holes, slots and fasteners are measured to the center.

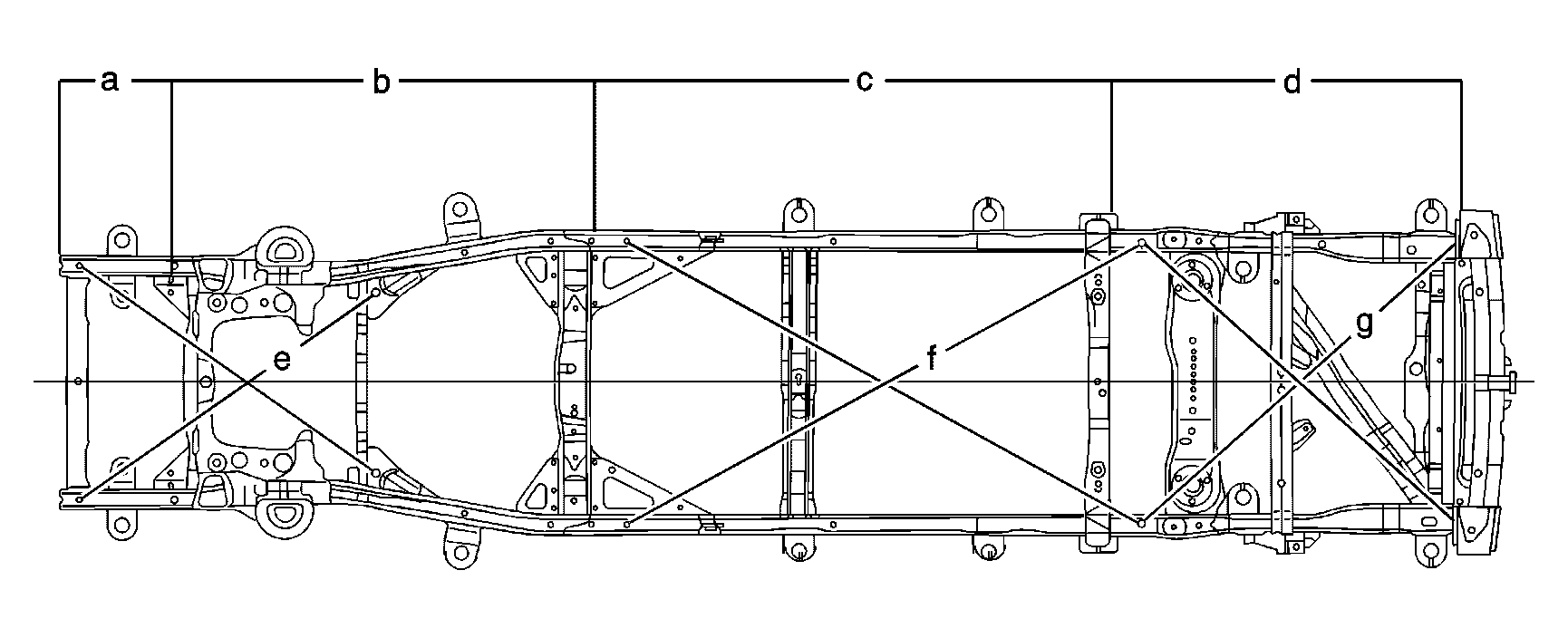

Dimensions - Frame (Trailblazer EXT, Envoy XL)
| Location | Point to Point |
|---|---|
| a | 420 mm |
| b | 1544 mm |
| c | 1795 mm |
| d | 1237 mm |
| e | 1290 mm |
| f | 2006 mm |
| g | 1611 mm |
