Removal Procedure

WARNING: This page is about a different car, the 2003 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

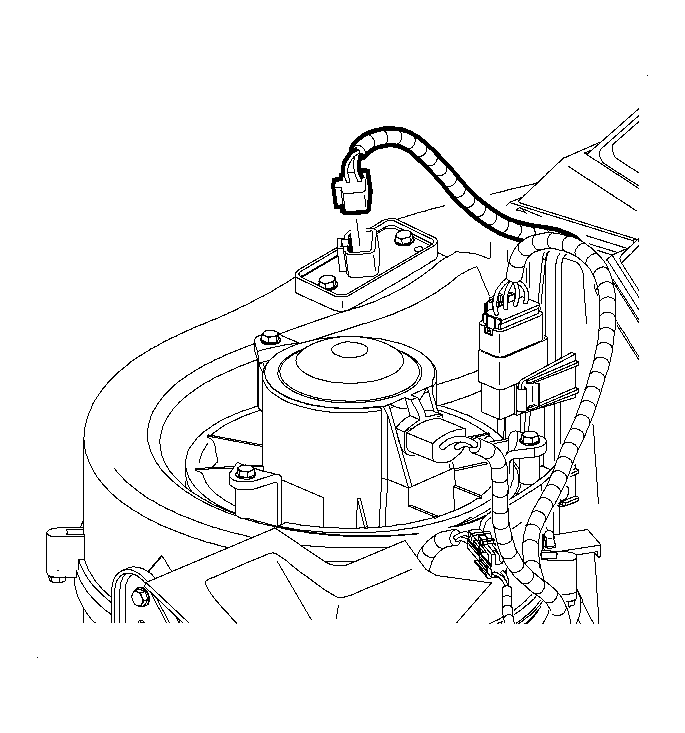

    Fig 1: Electrical Connector & Blower Motor Resistor
    GM932426Courtesy of GENERAL MOTORS CORP.
  1. Remove the right side insulator/closeout panel. Refer to Closeout/Insulator Panel Replacement - Right in Instrument Panel, Gages and Console.
  2. Disconnect the electrical connector from the blower motor resistor.
    3. Fig 2: Blower Motor Resistor, Screws & Blower Case Assembly
    GM933084Courtesy of GENERAL MOTORS CORP.
  3. Remove the blower motor resistor screws from the HVAC module.
  4. Remove the blower motor resistor from the HVAC module.
