Installation Procedure

WARNING: This page is about a different car, the 2003 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

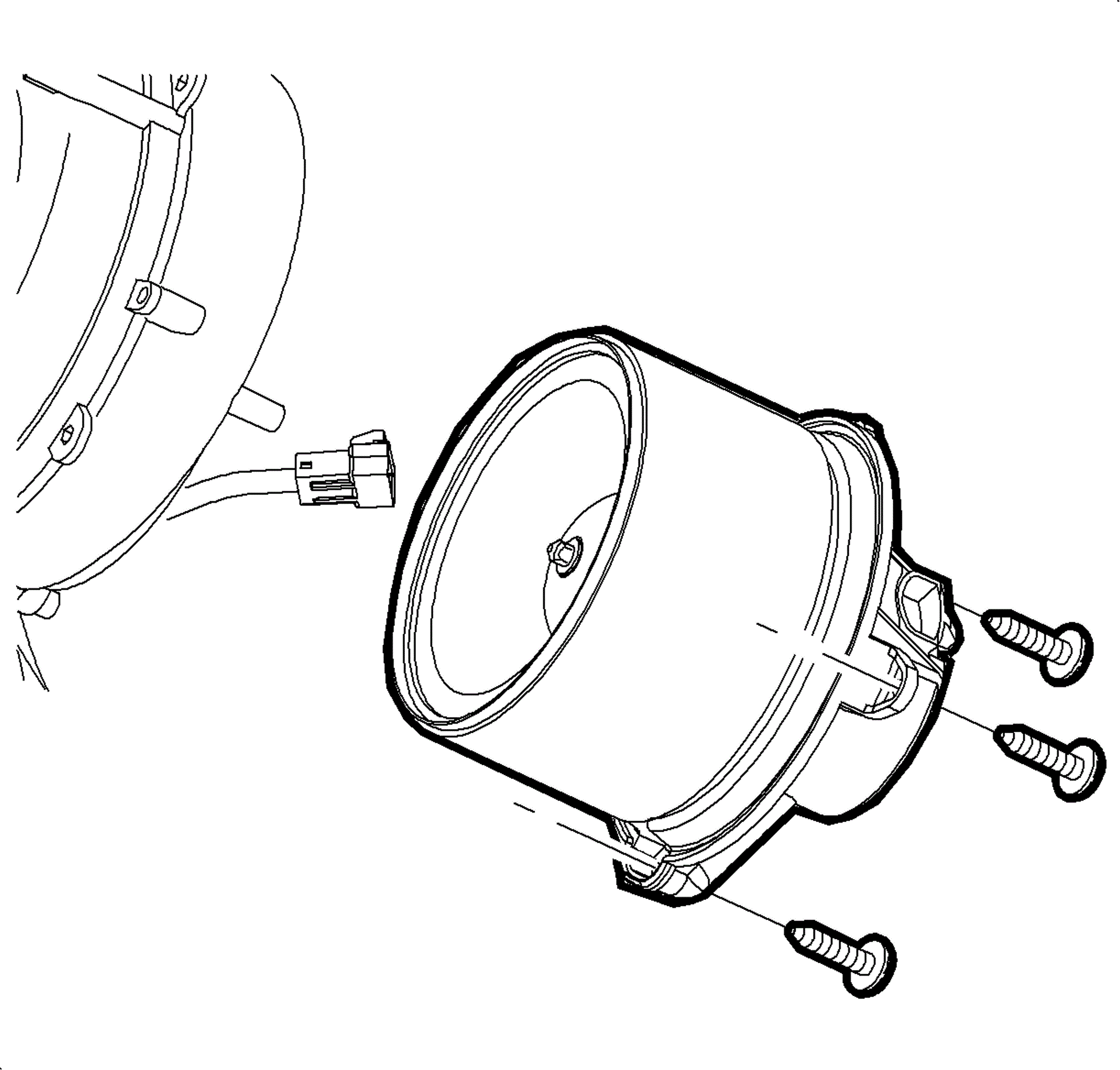

    Fig 1: Blower Motor Screws & Blower Case Assembly
    GM933076Courtesy of GENERAL MOTORS CORP.
  1. Install the blower motor to the HVAC module.
    2. NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the blower motor screws to the HVAC module.

    Tighten:  Tighten the screws to 1 N.m (9 lb in).

    3. Fig 2: Electrical Connector & Blower Motor
    GM932494Courtesy of GENERAL MOTORS CORP.
  3. Connect the electrical connector to the blower motor.
  4. Install the passenger side insulator/closeout panel. Refer to Closeout/Insulator Panel Replacement - Right in Instrument Panel, Gages and Console.
