Installation Procedure

WARNING: This page is about a different car, the 2003 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Inspect the seals and replace if damaged using Kent Industries adhesive backed foam tape P/N 46485 or equivalent.

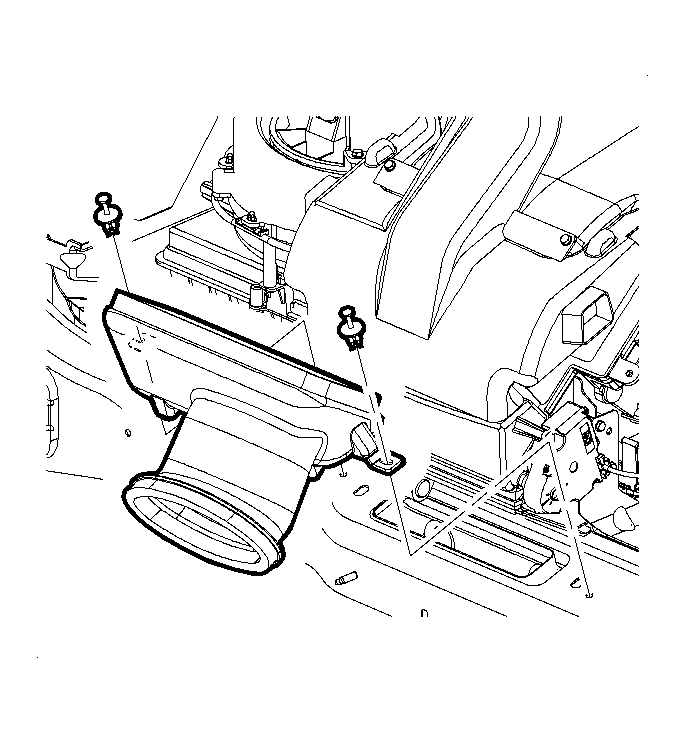

    2. Fig 1: Center I/P Air Outlet Duct & Retainers
    GM931922Courtesy of GENERAL MOTORS CORP.
  2. Install the auxiliary duct to the cross car beam.
  3. Install the auxiliary duct push pins to the cross car beam.
  4. Install the instrument panel retainer. Refer to Instrument Panel (I/P) Retainer Replacement in Instrument Panel, Gages and Console.
