Removal Procedure

WARNING: This page is about a different car, the 2003 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the HVAC module. Refer to HVAC Module Assembly Replacement .
    2. Fig 1: Electrical Connector & Recirculation Actuator
    GM933004Courtesy of GENERAL MOTORS CORP.
  2. Disconnect the electrical connector from the recirculation actuator.
  3. Unclip the wire harness from the HVAC module end bracket.
  4. Remove the end bracket screws from the air inlet assembly.
  5. Remove the end bracket nuts from the blower case assembly.
  6. Remove the end bracket from the blower case assembly.

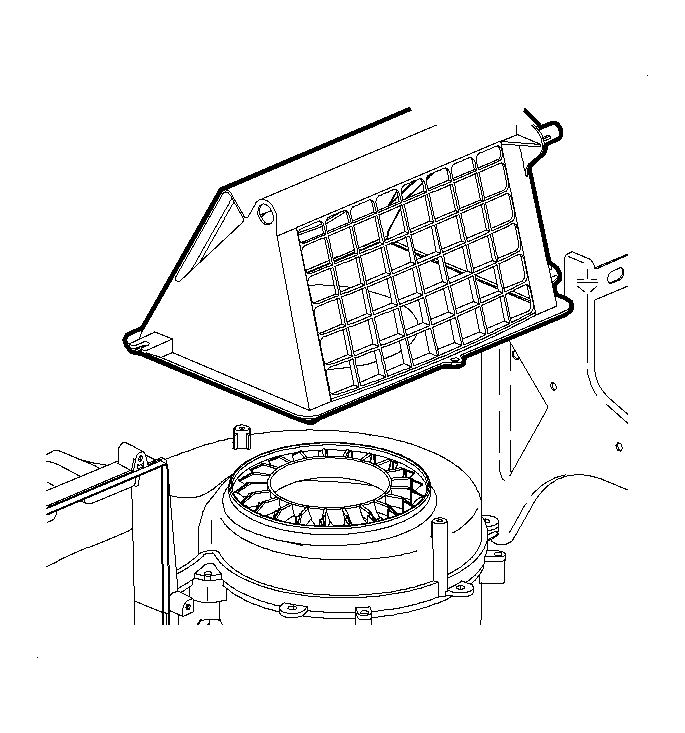

    7. Fig 2: Air Inlet Assembly
    GM932977Courtesy of GENERAL MOTORS CORP.
  7. Remove the recirculation actuator screws.
  8. Remove the recirculation actuator.
  9. Remove the air inlet assembly screws.
  10. Remove the air inlet assembly.
