Removal Procedure

WARNING: This page is about a different car, the 2003 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

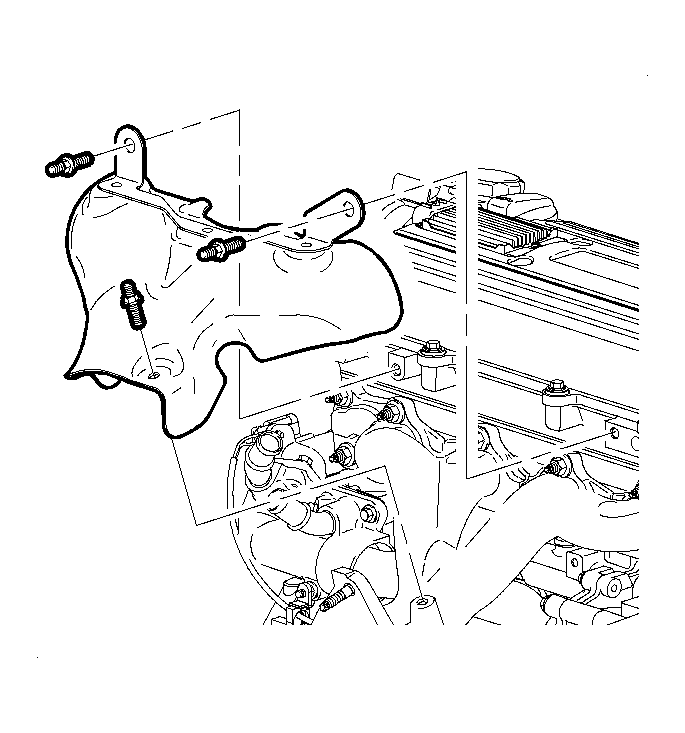

    Fig 1: Exhaust Heat Shield Bolts (2.2L)
    GM951386Courtesy of GENERAL MOTORS CORP.
  1. Remove exhaust heat shield bolts.
  2. Remove exhaust heat shield.
