Transaxle Mount Assembly (Rear): Installation

WARNING: This page is about a different car, the 2003 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the mount.
  2. Install the mount bolts and tighten to specification. See TORQUE SPECIFICATIONS  .

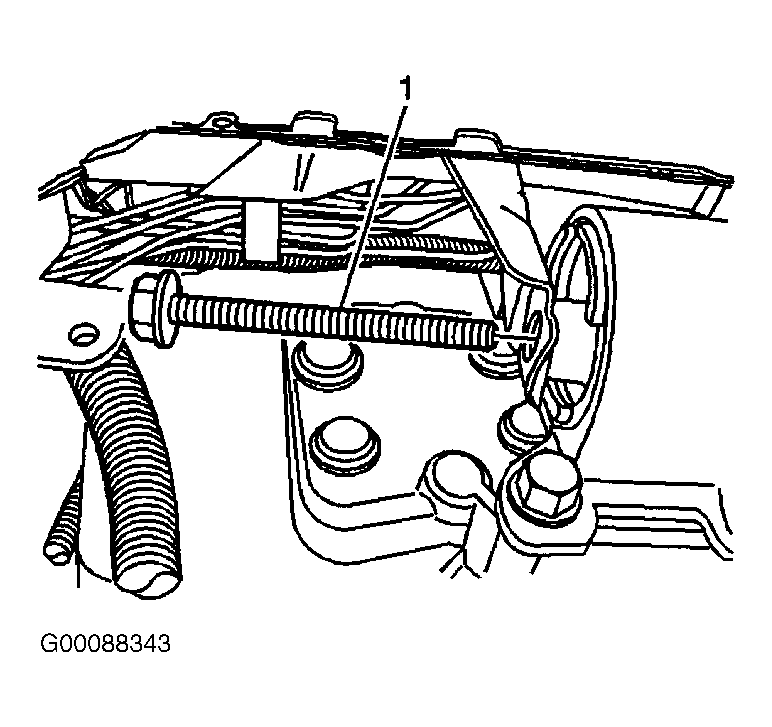

  3. Install the mount-through bolt. See Figure . Tighten the bolt to specification. See TORQUE SPECIFICATIONS  .

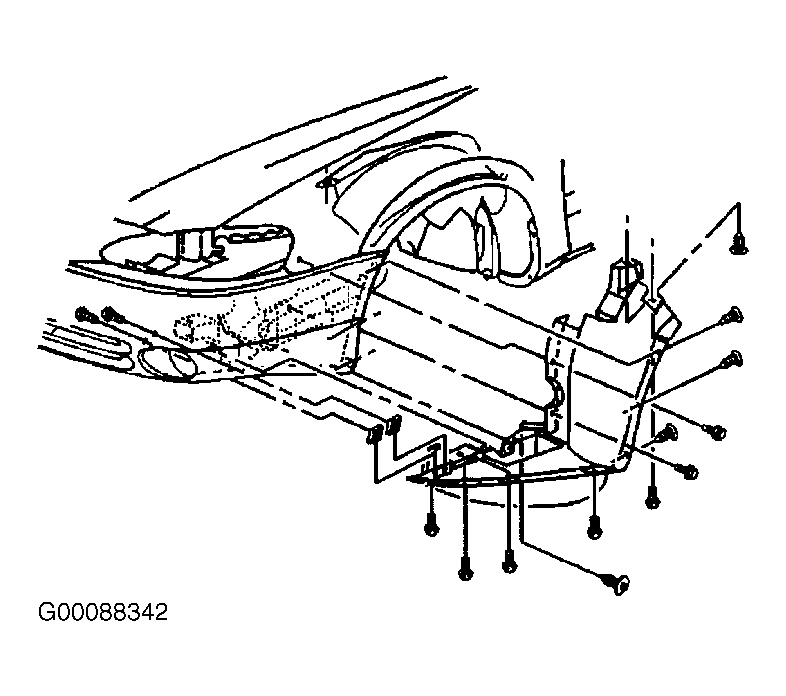

  4. Install the front fender liner. See Figure .
  5. Install the left front wheel.
  6. Lower the vehicle.
