Park/Neutral Position Switch: Removal

WARNING: This page is about a different car, the 2003 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the switch electrical connector. See Fig 1 .
Remove the attaching bolts and hardware. See Fig 2 .
Remove the PNP switch assembly. See Fig 3 .

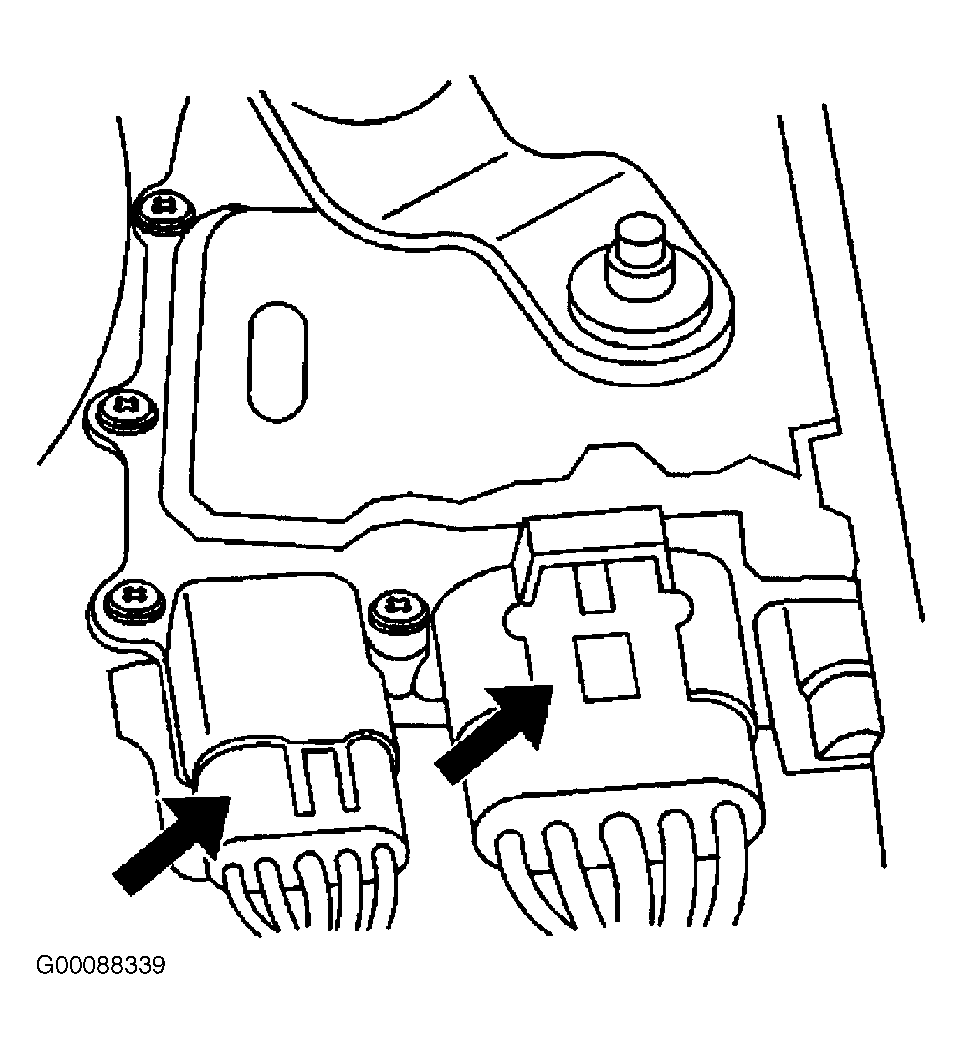

Fig 1: Locating PNP Switch Connectors

Courtesy of GENERAL MOTORS CORP.

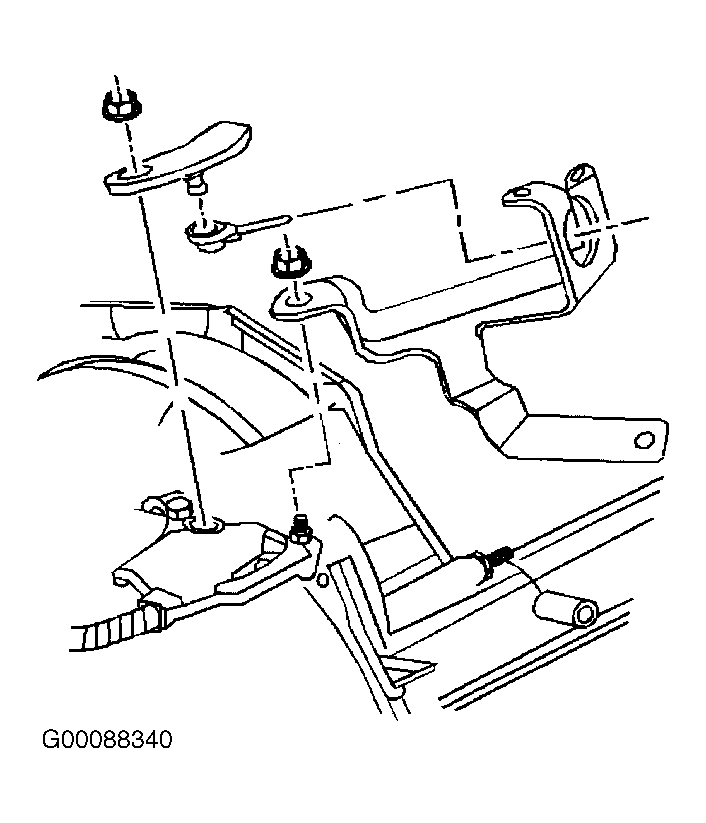

Fig 2: Removing & Installing PNP Attaching Hardware

Courtesy of GENERAL MOTORS CORP.

Fig 3: Removing & Installing PNP Switch

Courtesy of GENERAL MOTORS CORP.
