Oil Feed Pipes: Installation
WARNING: This page is about a different car, the 2003 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
- Install the 8 low/reverse band oil pipe assembly seals.

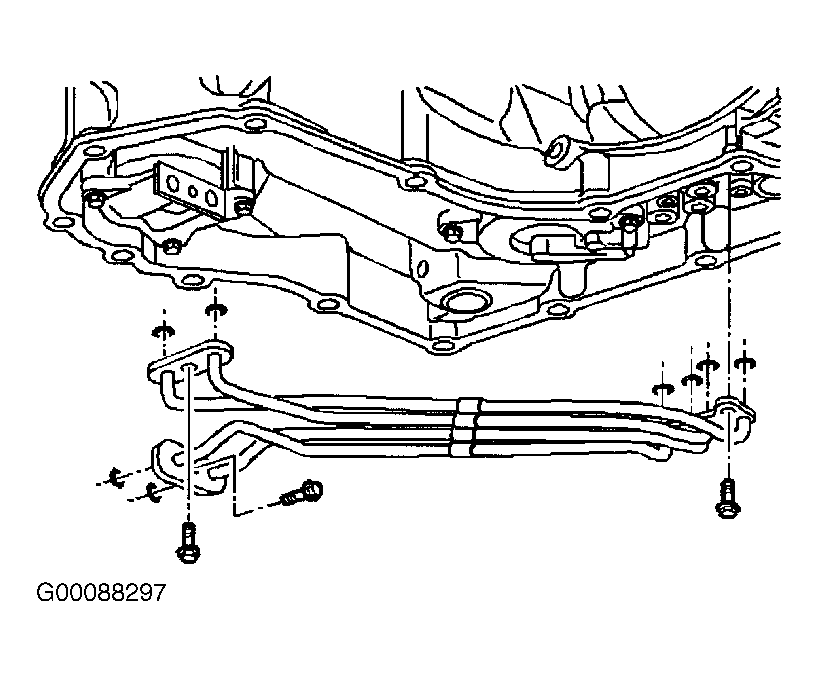

- Install the low/reverse band oil feed pipe assembly onto the transaxle. See Figure .
- Hand start the bolts that attach the oil feed pipe assembly to the transaxle. Tighten the bolts to specification. See TORQUE SPECIFICATIONS .
- Install the transaxle oil filter assembly.
- Install the oil pan and gasket. See DRAINING & REFILLING under LUBRICATION.
- Lower the vehicle.
- Refill the transaxle with appropriate fluid to proper level. See LUBRICATION .
- Inspect the transaxle oil level. See CHECKING FLUID LEVEL .
