Installation Procedure

WARNING: This page is about a different car, the 2003 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

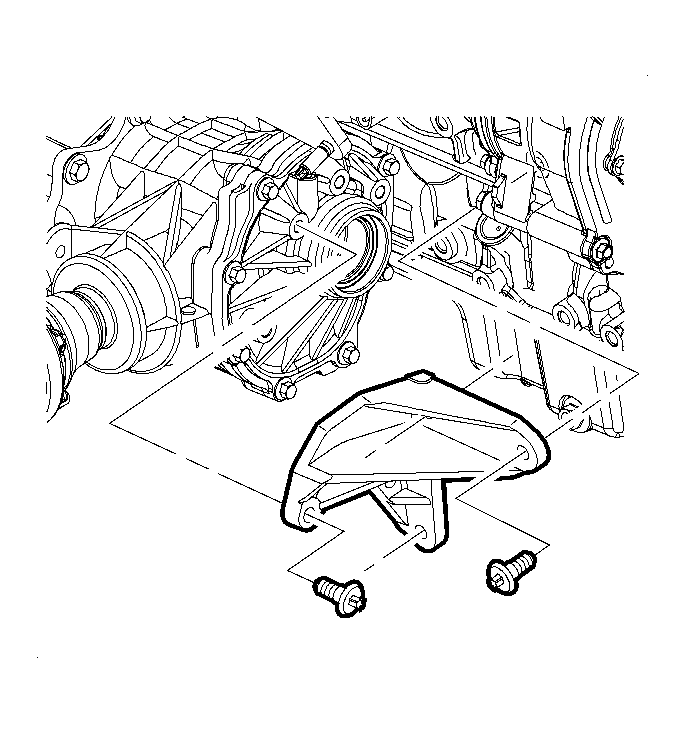

    Fig 1: View Of Transfer Case Mounting Bracket
    GM928962Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  1. Position brace to the vehicle and hand start all bolts.

    Tighten:  Tighten the bolts to 60 N.m (44 lb ft).

  2. Install the right hand axle. Refer to Wheel Drive Shaft Replacement - Front in Wheel Drive Shafts.
