Installation Procedure
WARNING: This page is about a different car, the 2003 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS CORP.

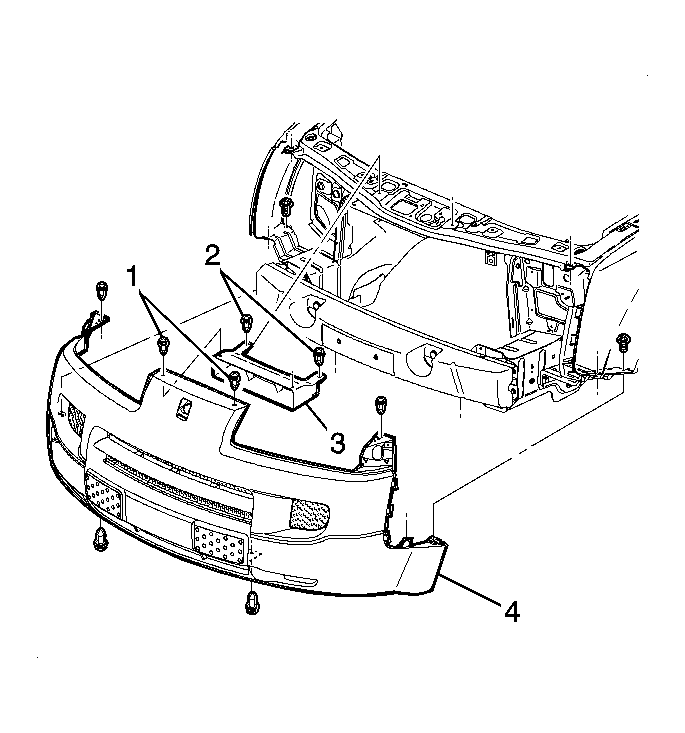

- Align the fascia support (3) with the tie bar and front fascia (4).
- Install the fascia support (3) to tie bar push-in retainers (2).
- Install the fascia support (3) to fascia push-in retainers (1).
