Installation Procedure

WARNING: This page is about a different car, the 2003 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

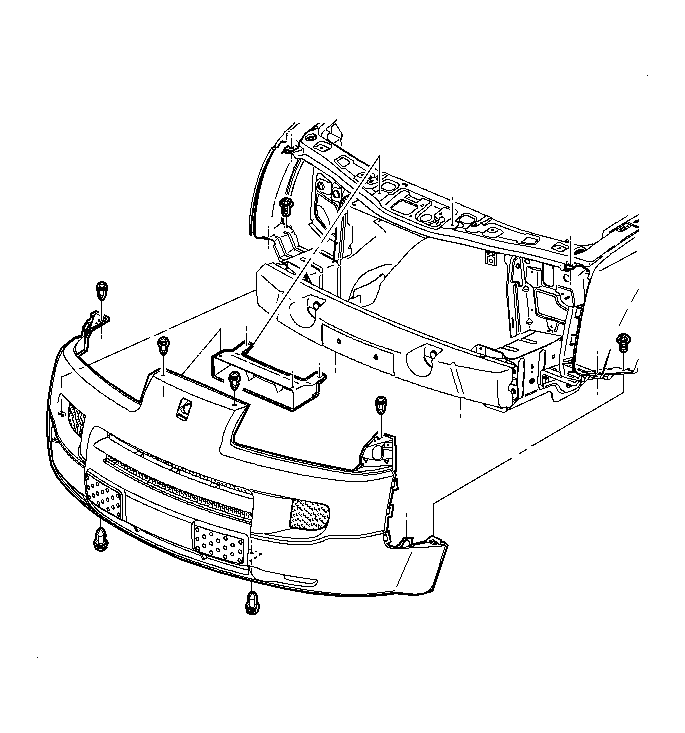

    Fig 1: Fascia To Lower Front Fender Bracket Bolts
    GM929063Courtesy of GENERAL MOTORS CORP.
  1. Position the fascia to the vehicle.
  2. Install the fascia to fascia support push-in retainers.
  3. Install the fascia to body push-in retainers.
    4. NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  4. Install the fascia to lower front fender bracket bolts.

    Tighten:  Tighten the bolts to 9 N.m (80 lb in).

  5. Connect the fog lamp electrical connector (if equipped).
  6. Move the wheelhouse liner forward and install the front wheelhouse push-pins.
  7. Install the front air deflector. Refer to Air Deflector Replacement - Front Bumper Fascia  .
  8. Install the headlamps. Refer to Headlamp Assembly or Headlamp Bulb and/or Cornering, Sidemarker, Park, Turn Signal Bulb Replacement in Lighting Systems.
  9. Install the front side marker lamps. Refer to Marker Lamp Replacement - Side in Lighting Systems.
