Installation Procedure

WARNING: This page is about a different car, the 2003 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

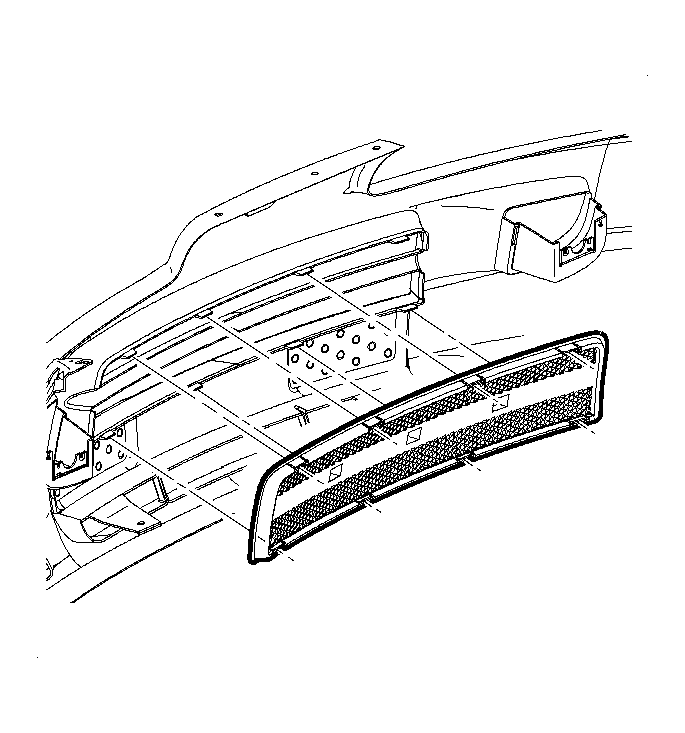

    Fig 1: Fascia Grille (Standard)
    GM929501Courtesy of GENERAL MOTORS CORP.
  1. Align the grille with the locating tabs on the front fascia.
  2. Install the grille to the fascia by pushing the grille on the tabs and ensuring all tabs are secure.
  3. Install the front fascia. Refer to Fascia Replacement - Front Bumper  .
