Park/Neutral Position Switch: Removal

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and suitably support the vehicle. Remove the intermediate exhaust pipe and allow the LH muffler assembly to hang down out of the way. Shift the transmission into Neutral. Remove the nuts retaining the transmission shift control cable bracket to the transmission. See Fig 1 .
  2. CAREFULLY release the shift control cable end clip from the transmission shift lever stud. See Figure . Reposition the transmission shift cable and bracket. Disconnect the Park/Neutral position switch electrical connectors. See Fig 2 .
  3. Using a wrench on the transmission manual shaft wrench flats (in order to keep the shaft from turning), remove the range selector (shift) lever retaining nut.
  4. Remove the range selector (shift) lever. See Fig 3 . Check that the transmission is still in Neutral. Remove the Park/Neutral position switch mounting bolts. Slide the switch off of the manual shaft. See Fig 4 .

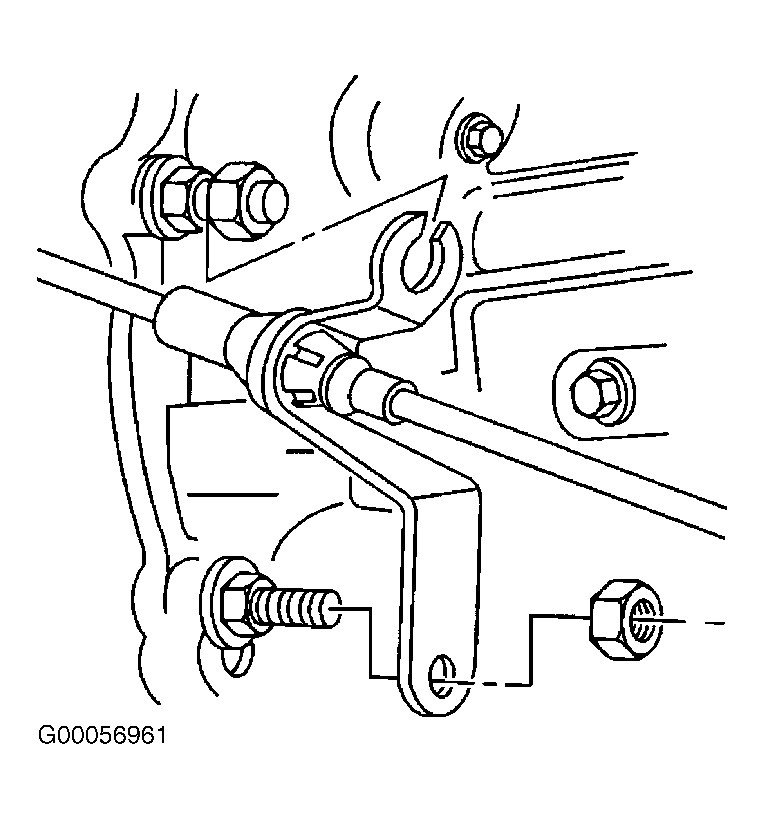

Fig 1: Removing/Installing Shift Control Cable Bracket
G00056961Courtesy of GENERAL MOTORS CORP.

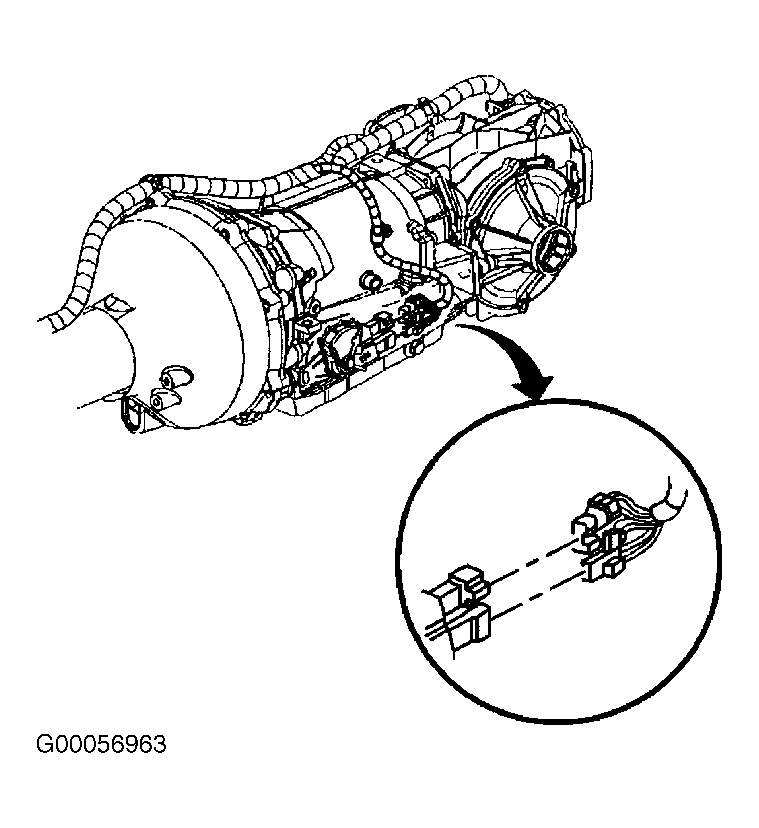

Fig 2: Locating Park/Neutral Position Switch Harness Connector
G00056963Courtesy of GENERAL MOTORS CORP.

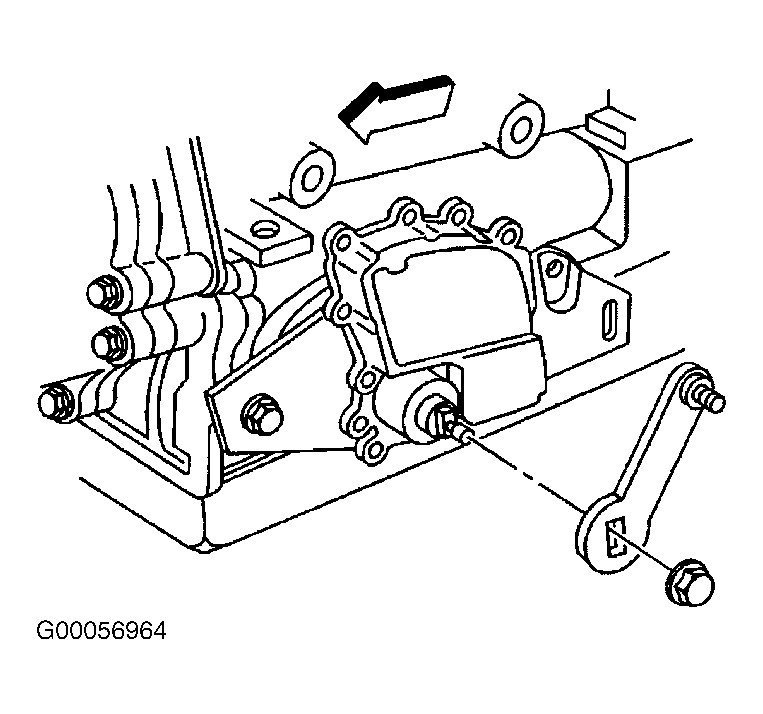

Fig 3: Removing/Installing Range (Shift) Selector Lever
G00056964Courtesy of GENERAL MOTORS CORP.

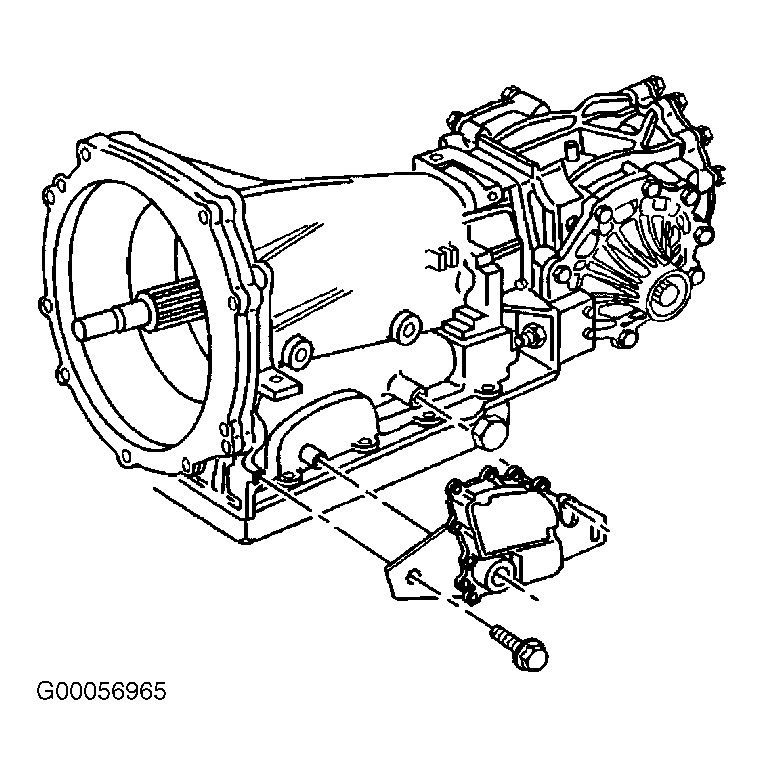

Fig 4: Removing/Installing Park/Neutral Position Switch
G00056965Courtesy of GENERAL MOTORS CORP.
