Removal Procedure

WARNING: This page is about a different car, the 2003 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear wheelhouse liner. Refer to Wheelhouse Liner Panel Replacement - Rear  .
  2. Remove the rear fascia. Refer to Fascia Replacement - Rear Bumper in Bumpers.
  3. Remove the tail lamp. Refer to Tail Lamp Assembly and /or Backup, Sidemarker, Stop, Turn Signal Bulb Replacement in Lighting Systems.
  4. Remove the fuel filler cap strap from the fuel filler door.

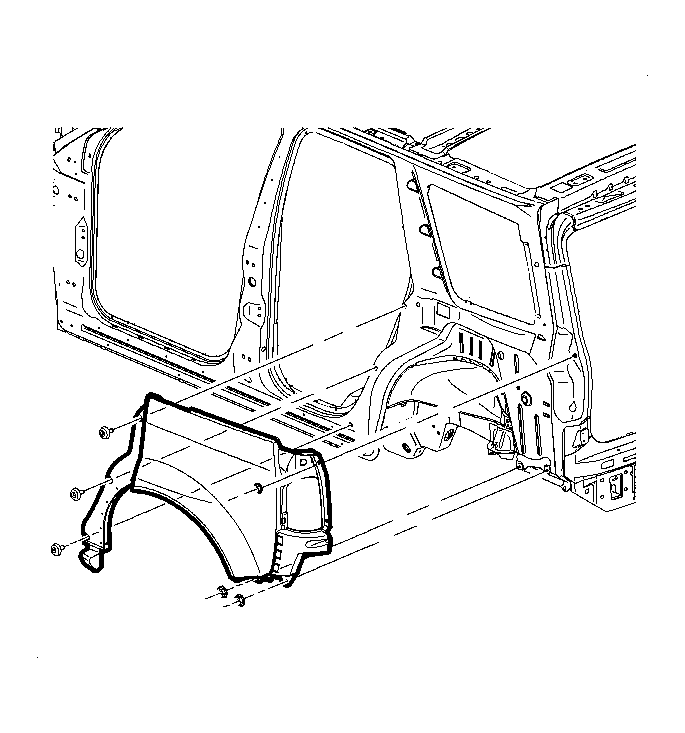

    5. Fig 1: Quarter Panel
    GM929738Courtesy of GENERAL MOTORS CORP.
  5. Remove the quarter panel to body bolts and nuts.
  6. Remove the quarter panel from the vehicle.
