Removal Procedure

WARNING: This page is about a different car, the 2003 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

Remove the carpet retainer. Refer to Carpet Retainer Replacement - Rear .
Remove the lock pillar garnish molding. Refer to Garnish Molding Replacement - Lock Pillar Upper .
Remove the rear upper trim molding. Refer to Molding Replacement - Rear Window Upper .

Fig 1: Rear Upper Trim Molding

Courtesy of GENERAL MOTORS CORP.

Remove the finish molding from the rear upper trim.

Fig 2: Load Floor Storage Bin

Courtesy of GENERAL MOTORS CORP.

On the driver side, remove the fasteners from the load floor storage bin.
On the driver side, remove the load floor storage bin.

Fig 3: Cargo Hooks

Courtesy of GENERAL MOTORS CORP.

Remove the cargo hooks.

Fig 4: Disconnecting Accessory Wire Harness

Courtesy of GENERAL MOTORS CORP.

On the driver side, disconnect the accessory wire harness.

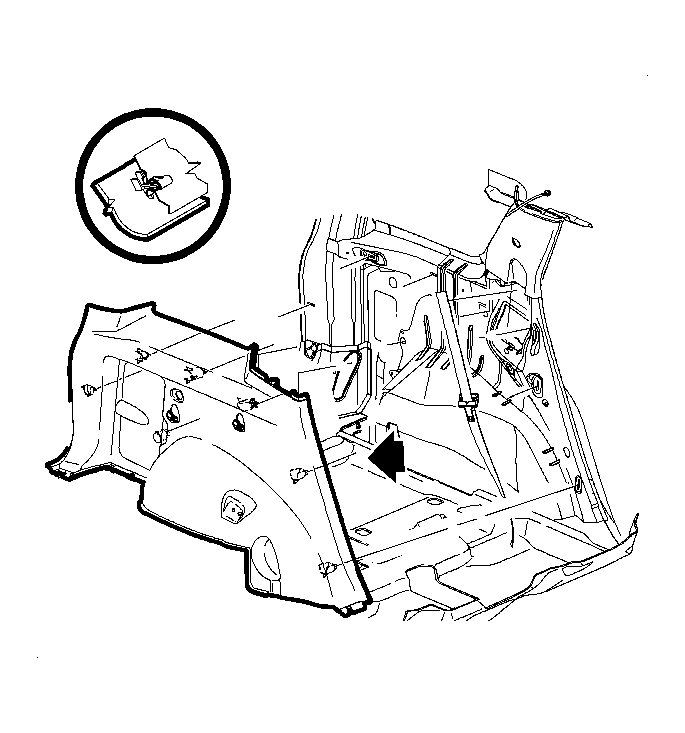

Pull at the clip locations to disengage the side trim panel from the vehicle.
