Installation Procedure

WARNING: This page is about a different car, the 2003 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Attaching Sill Molding To Load Floor Substrate

Courtesy of GENERAL MOTORS CORP.

Attach the sill molding to the load floor substrate.

Fig 2: Pushing On Sill Molding

Courtesy of GENERAL MOTORS CORP.

Position the load floor substrate to the vehicle.
Push on the sill molding to engage the clips.
Secure the weatherstrip over the edge of the sill molding.

NOTE: Refer to FASTENER NOTICE in Cautions and Notices.

Install the load floor substrate fasteners.
Tighten: Tighten the fasteners to 2.5 N.m (22 lb in).
Install the driver side quarter trim. Refer to Trim Panel Replacement - Rear Quarter Lower .

Fig 3: Driver Side Hold Down Hooks & Fasteners

Courtesy of GENERAL MOTORS CORP.

Install the driver side hold down hooks with fasteners.

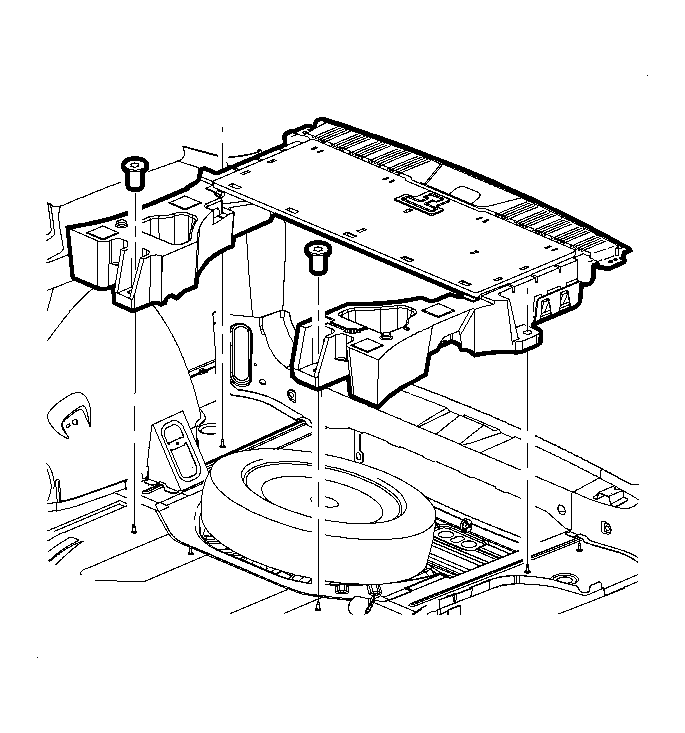

Fig 4: Load Floor Storage Bin

Courtesy of GENERAL MOTORS CORP.

Position the stowage tray into the load floor.
Install the stowage tray fasteners.
Tighten: Tighten the fasteners to 2.5 N.m (22 lb in).
Install the rear compartment closeout panel. Refer to Panel Replacement - Rear Compartment Closeout .
