Installation Procedure

WARNING: This page is about a different car, the 2003 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Left Transmission Mount & Side Rail Bolts

Courtesy of GENERAL MOTORS CORP.

IMPORTANT: Hand start all bolts before tightening.

NOTE: Refer to FASTENER NOTICE in Cautions and Notices.

Install the transmission mount in the side rail.
Tighten: Tighten the transmission mount to side rail bolts to 37 N.m (27 lb ft).
Use the floor jack to raise the powertrain into position.

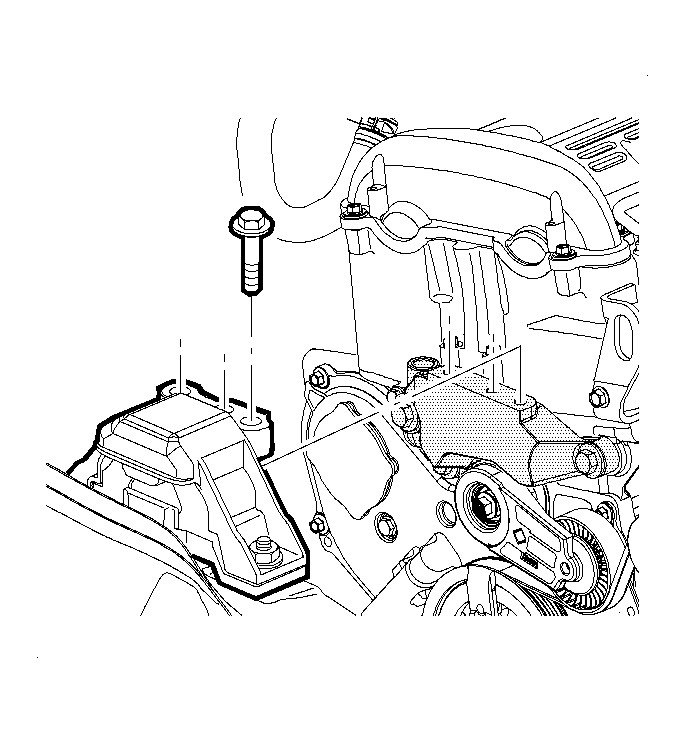

Fig 2: Engine Mount & Mount Bracket Bolts

Courtesy of GENERAL MOTORS CORP.

Align both side mounts with the surfaces flush with the mount brackets.
Align all the bolt holes in both side mounts and hand tighten both upper mount bolts. Three per side.

Fig 3: Left Transmission Mount & Bolts

Courtesy of GENERAL MOTORS CORP.

Tighten the mount bolts starting with the center ones.
Tighten: Tighten both upper mount bolts to 50 N.m (37 lb ft).
Raise the vehicle.

Fig 4: View Of Transaxle Mount And Mounting Bolts

Courtesy of GENERAL MOTORS CORP.

Install the rear mount through bolt. Hand tighten only.

Fig 5: View Of Front Transaxle Mount Through Bolt

Courtesy of GENERAL MOTORS CORP.

Install the front mount through bolt. Hand tighten only.
Perform the powertrain mount balance procedure. Refer to POWERTRAIN MOUNT BALANCE (TOTAL MOUNT) .
Remove the floor jack and block of wood.
Install the battery box. Refer to Battery Box Replacement in Battery.
