Installation Procedure

WARNING: This page is about a different car, the 2003 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.
    Fig 1: Transaxle Case & Shifter Cover Mating Surface
    GM892790Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: Ensure there is not any excessive sealer around the shift rod bushing.
  1. Apply sealer P/N 12378516 to the transaxle case to shifter cover mating surface.
    2. Fig 2: View Of Shifter And Retaining Bolts
    GM513882Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: Install all possible shifter bolts with the shifter in NEUTRAL. Install the last shifter bolt with the shifter in gear, then shift back into NEUTRAL.
  2. Install the shifter.
    3. NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  3. Install the shifter retaining bolts.

    Tighten:  Tighten the bolts to 25 N.m (18 lb ft).

    4. Fig 3: View Of Shifter Guide Bolt
    GM513880Courtesy of GENERAL MOTORS CORP.
  4. Ensure the transaxle is in NEUTRAL.
  5. Apply P/N 21485278 to the shifter guide bolt.
    6. NOTE: Hand start and tighten the shifter guide bolt to avoid damaging the shift lever.
  6. Install the shifter guide bolt.

    Tighten:  Tighten the bolt to 25 N.m (18 lb ft).

  7. Install the left inner splash shield.
  8. Install the wheel. Refer to Tire and Wheel Removal and Installation in Tires and Wheels.

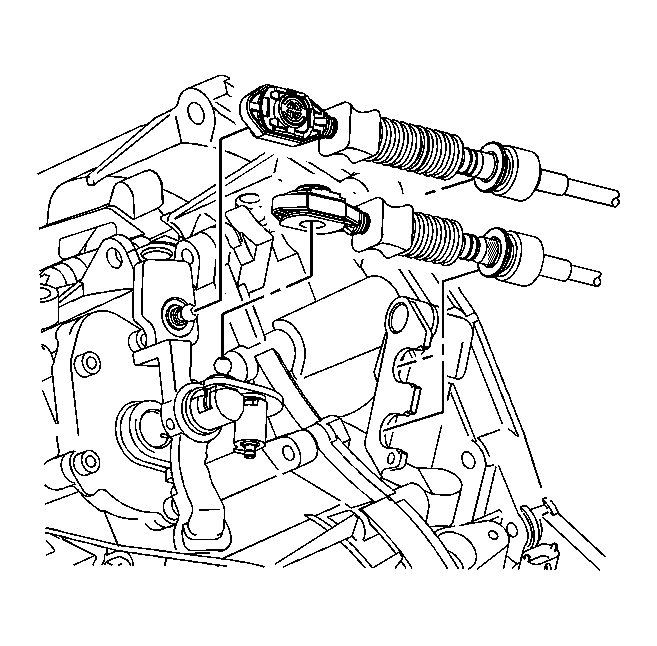

    9. Fig 4: View Of Shift Cables, Cable Connections & Shift Cable Bracket
    GM880090Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: New cable clips must be used to ensure proper retention.
  9. Connect the shift cables to the shift cable bracket.
  10. Connect the shift cable ends to the transaxle.
  11. Lower the vehicle.
