Removal Procedure

WARNING: This page is about a different car, the 2003 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disable the SIR system. Refer to DISABLING & ACTIVATING AIR BAG SYSTEM in SIR.

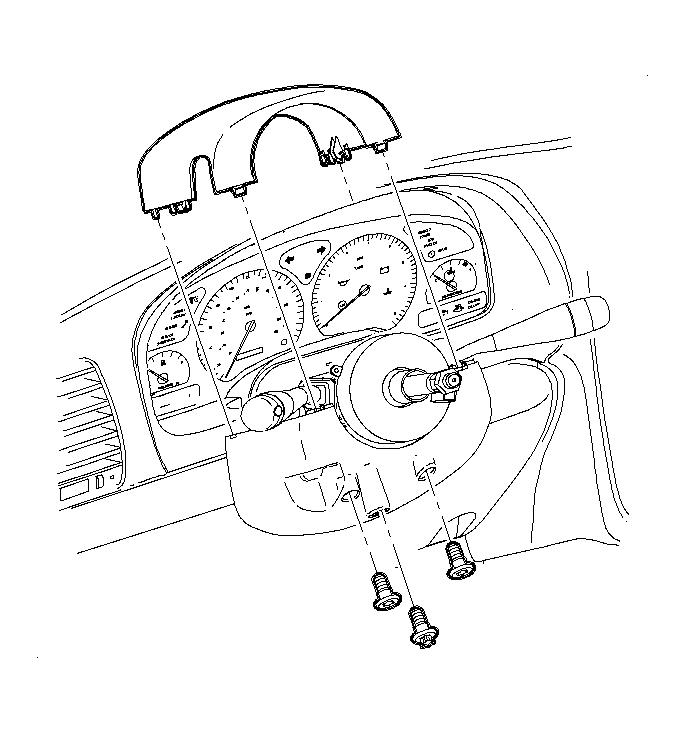

    2. Fig 1: Lower Steering Column Cover & Screws
    GM870643Courtesy of GENERAL MOTORS CORP.
  2. Unsnap and remove the upper steering column cover.
  3. Remove the lower steering column cover screws.
    4. Fig 2: Ignition Switch Bezel
    GM862575Courtesy of GENERAL MOTORS CORP.
  4. Unsnap and remove the ignition switch bezel.
  5. Remove the lower trim cover.
