Installation Procedure

WARNING: This page is about a different car, the 2003 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

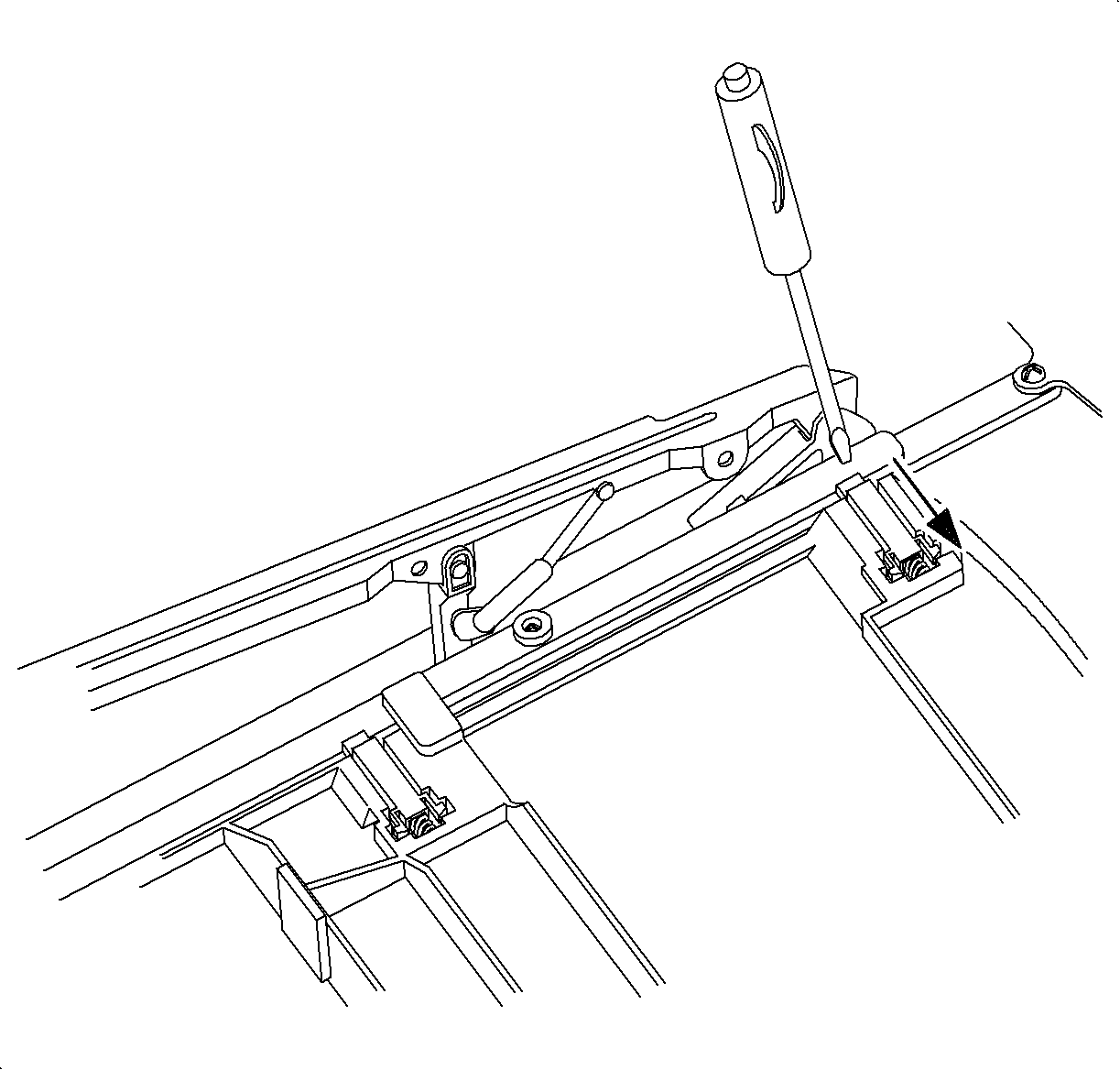

Fig 1: Sunroof Sunshade Panel

Courtesy of GENERAL MOTORS CORP.

Engage one side of the sunshade by positioning the spring clips into the track.
Push the spring retainer clips inward on the opposite side of the sunshade to engage them into the track.
Slide the sunshade back and forth to ensure proper operation.
Slide the sunshade to the half closed position.
Install the rear drain drip channel.
Install the sunroof window. Refer to Sunroof Window Replacement .
