Installation Procedure

WARNING: This page is about a different car, the 2003 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Route the rear drain hose down through the access hole in the side rail.

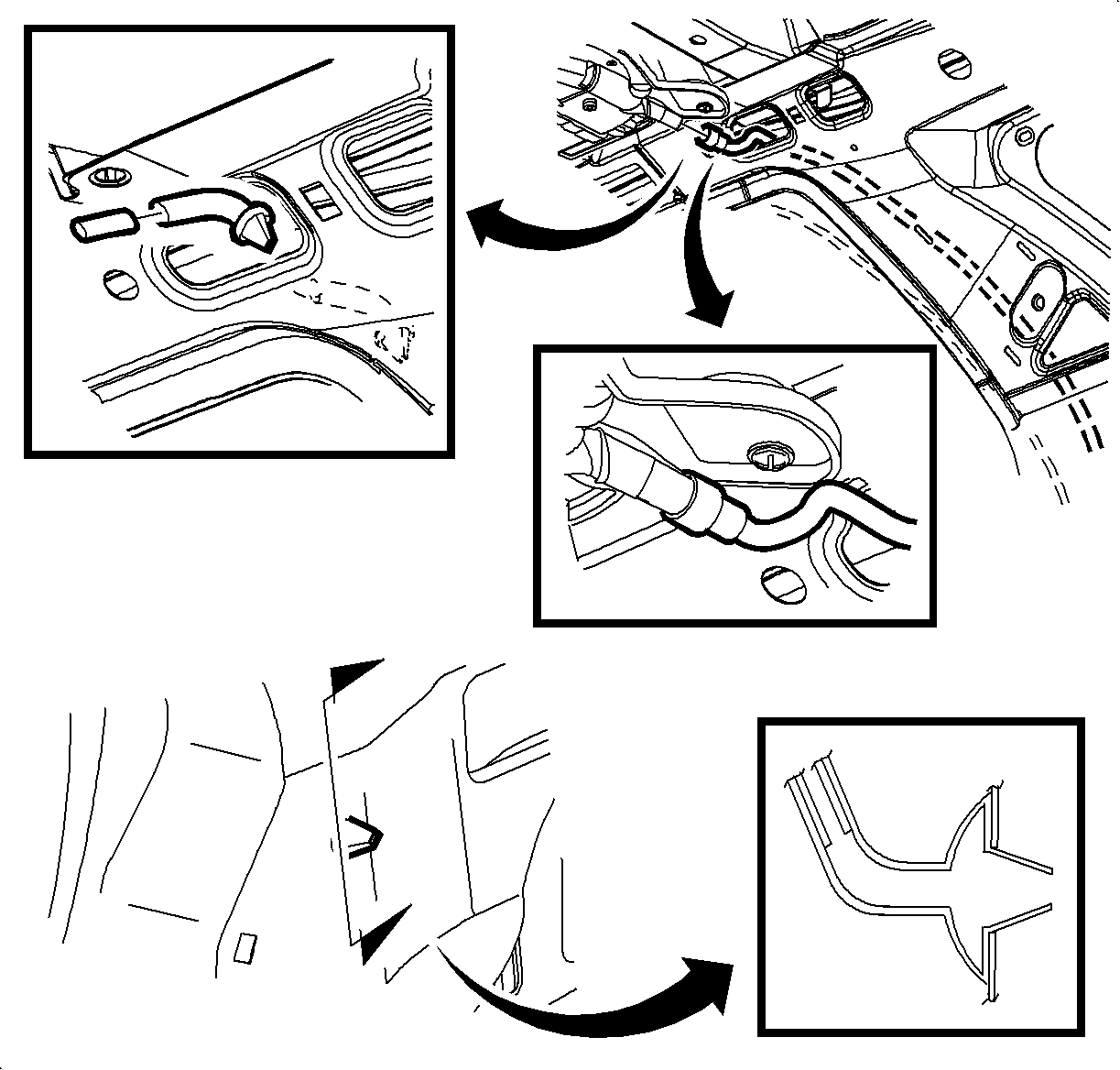

    2. Fig 1: Installing Rear Drain Hoses To Sunroof Module
    GM977369Courtesy of GENERAL MOTORS CORP.
  2. Push the end of the rear drain hoses down into the rear compartment opening.
  3. Clip the lower portion of the rear drain hoses into position.
  4. Install the rear side trim panels. Refer to Garnish Molding Replacement - Center Pillar Upper in Interior Trim.
  5. Clip the upper portion of the rear drain hoses into position.
  6. Install the drain hose spouts on the sunroof module.
  7. Install the headliner. Refer to Headliner Replacement in Interior Trim.
