Installation Procedure

WARNING: This page is about a different car, the 2003 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

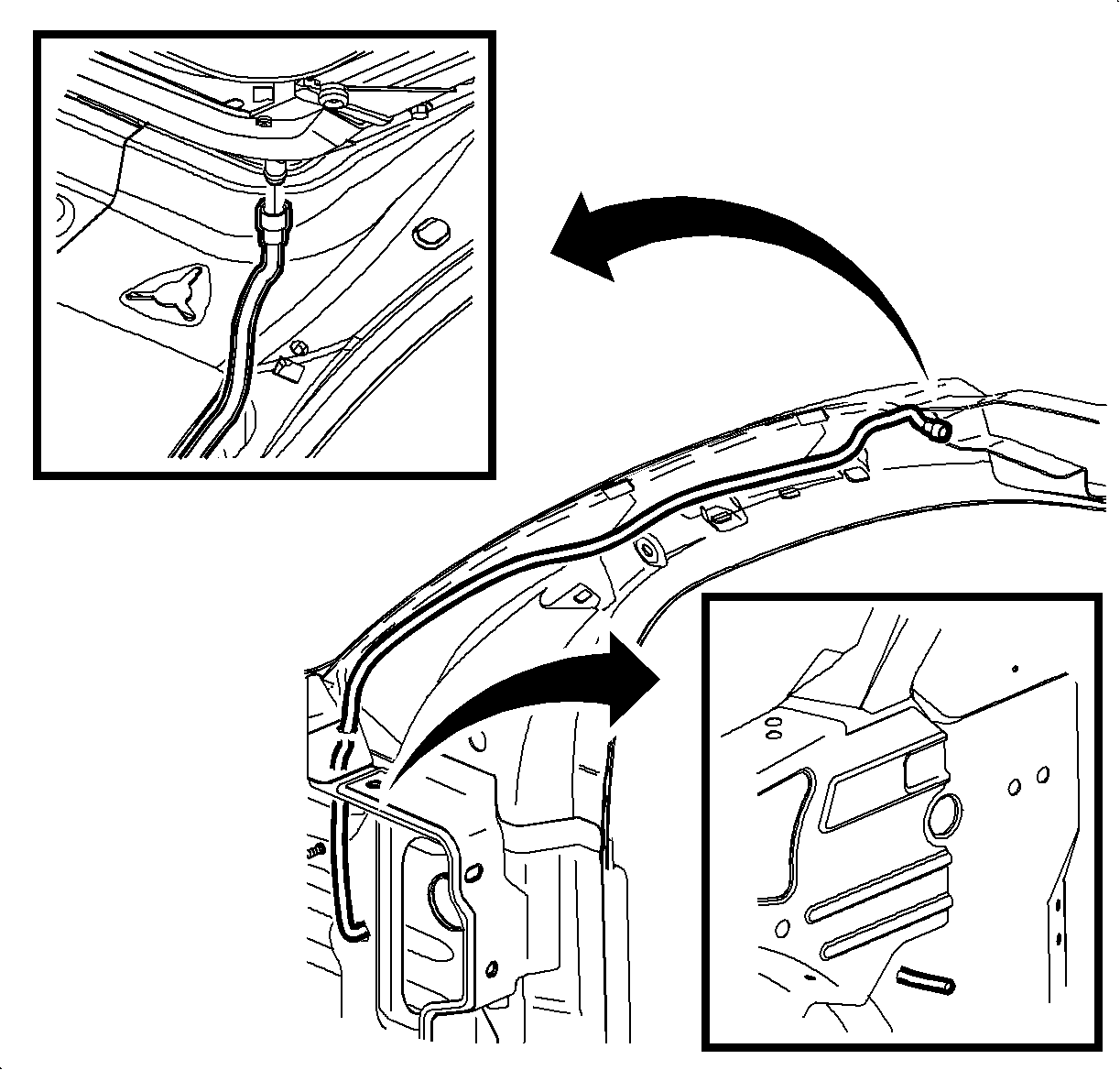

    Fig 1: Sunroof Drain Hose
    GM977361Courtesy of GENERAL MOTORS CORP.
  1. Push the drain hose into the hole in the front hinge pillar.
  2. Connect the front drain hose to the retaining clips.
  3. Connect the drain hose to the sunroof module.
  4. Install the headliner. Refer to Headliner Replacement in Interior Trim.
