Installation Procedure

WARNING: This page is about a different car, the 2003 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.
    Fig 1: Rear Seat Assembly & Fasteners
    GM977241Courtesy of GENERAL MOTORS CORP.
  1. Position the rear seat to the vehicle.
    2. NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the forward fasteners.

    Tighten:  Tighten the fasteners to 20 N.m (15 lb ft).

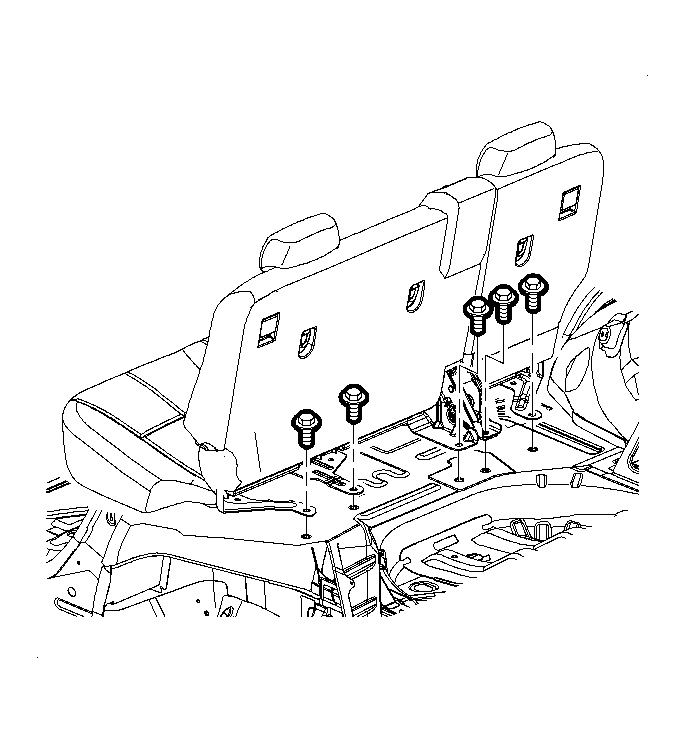

    3. Fig 2: Rear Seat Fasteners
    GM977275Courtesy of GENERAL MOTORS CORP.
  3. Install the rear seat fasteners at the back of the seat.

    Tighten:  Tighten the fasteners to 50 N.m (37 lb ft).

    4. Fig 3: Load Floor Forward Cover
    GM977958Courtesy of GENERAL MOTORS CORP.
  4. Position the load floor forward cover. Push down at the hook and loop locations to secure the load floor to the vehicle.
