Installation Procedure

WARNING: This page is about a different car, the 2003 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

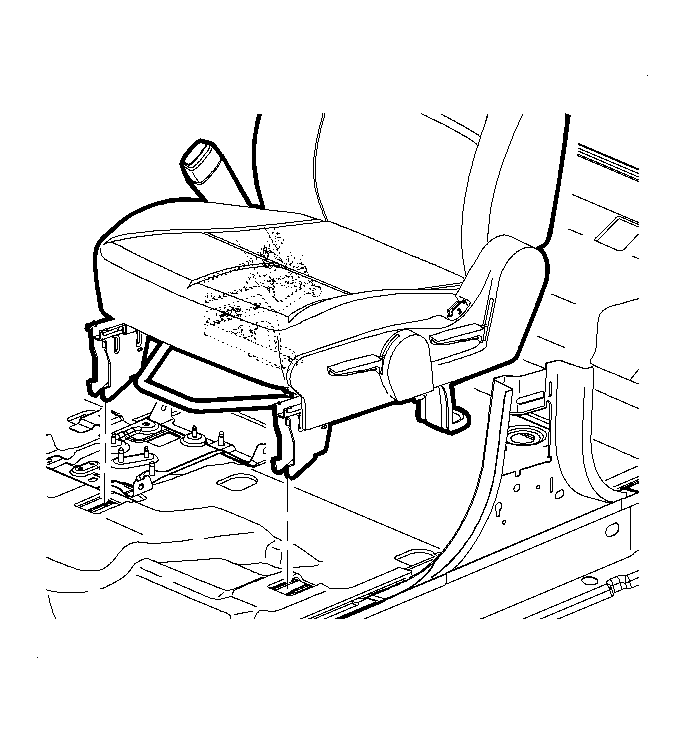

    Fig 1: Positioning Seat In Vehicle & Engaging Front Adjuster Hooks
    GM987349Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: This step must be performed to assure proper timing of the adjusters.
  1. Adjust the seat adjuster tracks to the fully rearward position.
  2. Position the seat in the vehicle and engage the front adjuster hooks in the floor pan.
    3. Fig 2: Connecting Heat Module Electrical Connector
    GM981887Courtesy of GENERAL MOTORS CORP.
  3. Position the seat in the fully forward position to expose the rear bolt locations.
  4. Connect the seat electrical connectors.
    5. Fig 3: Front Seat Adjuster Bolts
    GM981927Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  5. Install the seat adjuster bolts.

    Tighten:  Tighten the bolts to 50 N.m (37 lb ft).

  6. Install the shoulder belt webbing in the quick disconnect anchor.
  7. Inspect the front seat belt for proper operation.
