Installation Procedure

WARNING: This page is about a different car, the 2003 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Recliner Fasteners

Courtesy of GENERAL MOTORS CORP.

Position the recliner mechanism to the seat cushion frame.

NOTE: Refer to FASTENER NOTICE in Cautions and Notices.

Install the recliner fasteners.
Tighten: Tighten the fasteners to 50 N.m (37 lb ft).

Fig 2: Inboard Side Fasteners

Courtesy of GENERAL MOTORS CORP.

Position the driver side seat back assembly to the seat cushion frame and recliner mechanism.
Install the inboard side fasteners.
Tighten: Tighten the fasteners to 50 N.m (37 lb ft).
Lower the seat back trim cover.

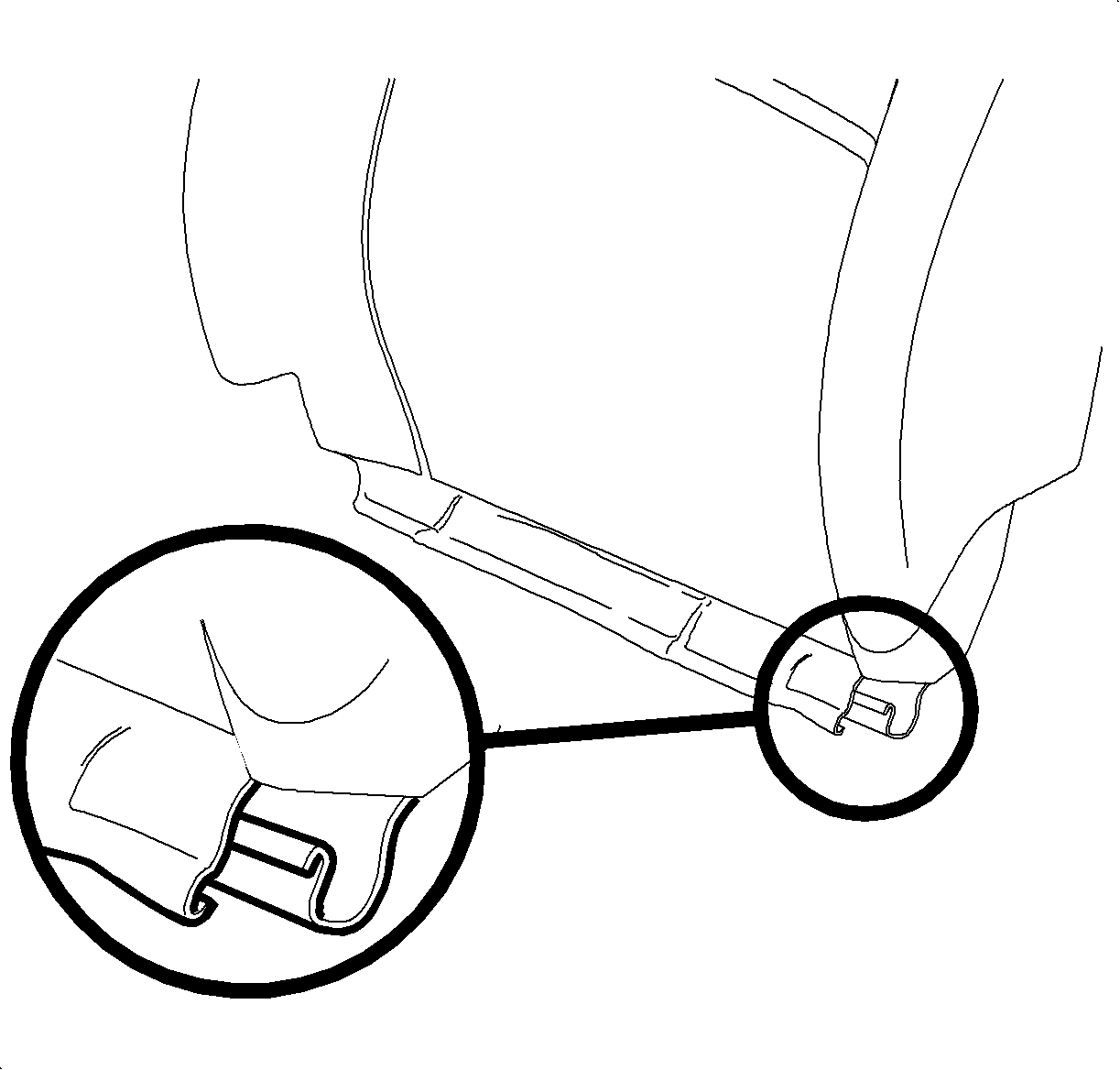

Fig 3: View Of Lower J-Hook Retainer

Courtesy of GENERAL MOTORS CORP.

Connect the J-hook retainer on the seat back trim cover.
Install the outboard seat back bolts.
Tighten: Tighten the bolts to 45 N.m (33 lb ft).
Position the passenger side seat back.
Install the inboard bolts.
Tighten: Tighten the bolts to 50 N.m (37 lb ft).
Lower the seat back trim cover.
Connect the J-hook retainer on the seat back trim cover.
Install the outboard seat back bolt.
Tighten: Tighten the bolt to 45 N.m (33 lb ft).

Fig 4: Shoulder Belt Anchor Bolt & Plate

Courtesy of GENERAL MOTORS CORP.

Install the shoulder belt anchor plate and the bolt to the recliner assembly.
Tighten: Tighten the bolt to 50 N.m (37 lb ft).
Ensure that the seat belt webbing is not twisted.
Verify proper operation of the seat belt.

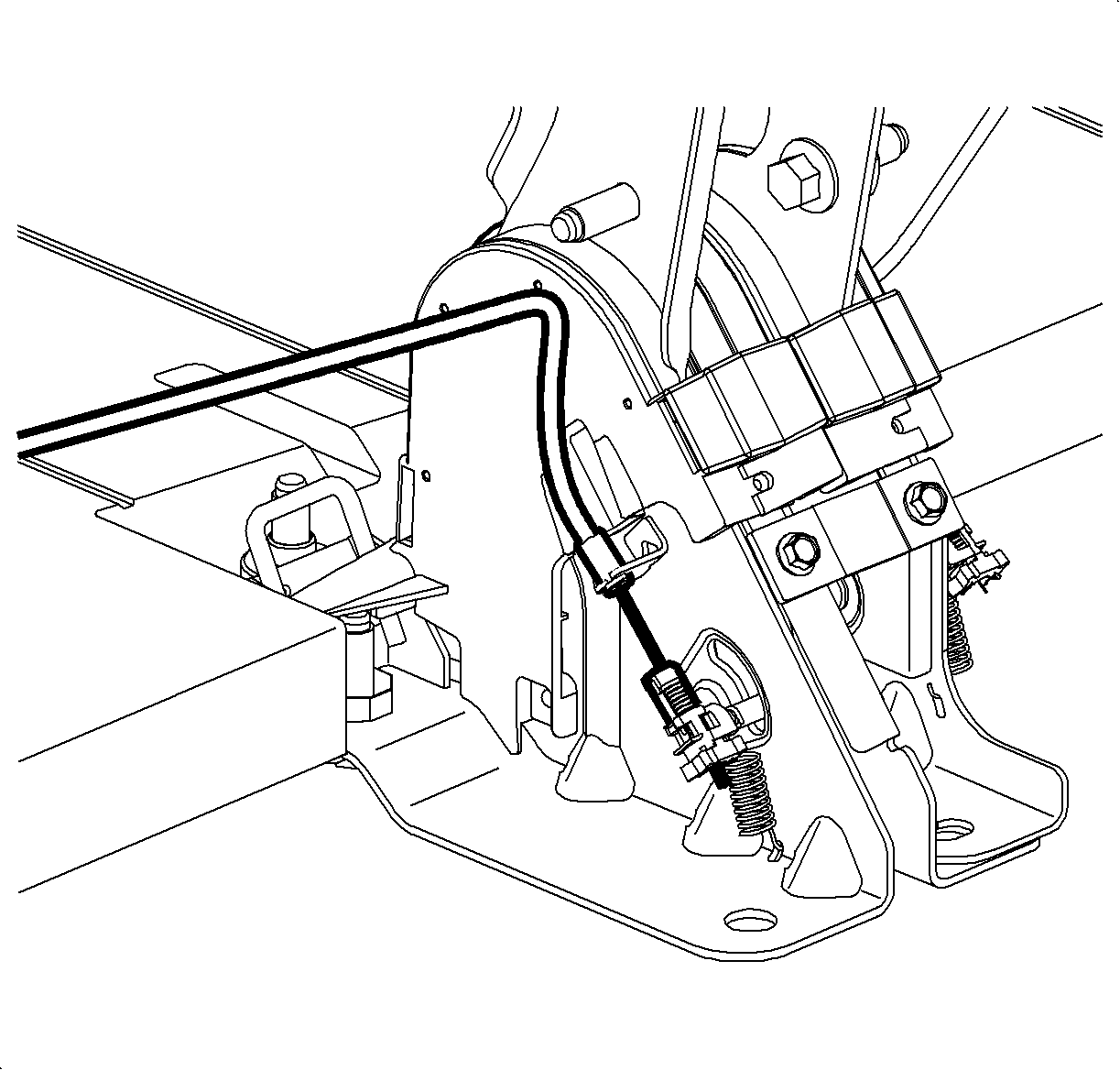

Fig 5: Disconnecting/Connecting Seat Recliner Cable

Courtesy of GENERAL MOTORS CORP.

Connect the recliner cables to both rear seat backs.
Install the rear seat assembly to the vehicle. Refer to Seat Replacement - Rear .
