Installation Procedure

WARNING: This page is about a different car, the 2003 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

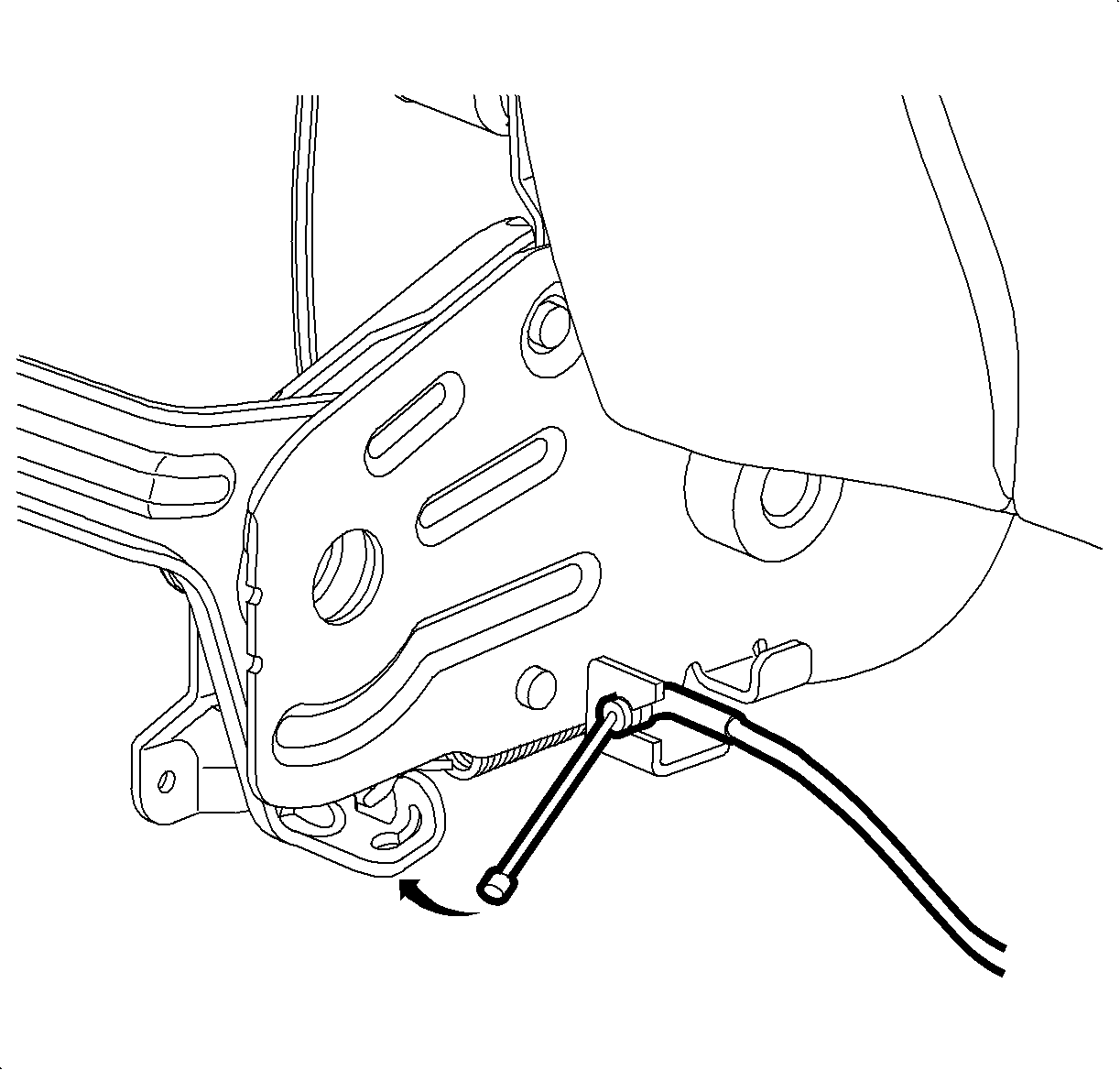

    Fig 1: Connecting Outboard End Of Fold-Flat Cable
    GM987228Courtesy of GENERAL MOTORS CORP.
  1. Install the seat recliner cable mechanism into the outer recliner mechanism.
  2. Snap the recliner cable into the inner recliner mechanism.

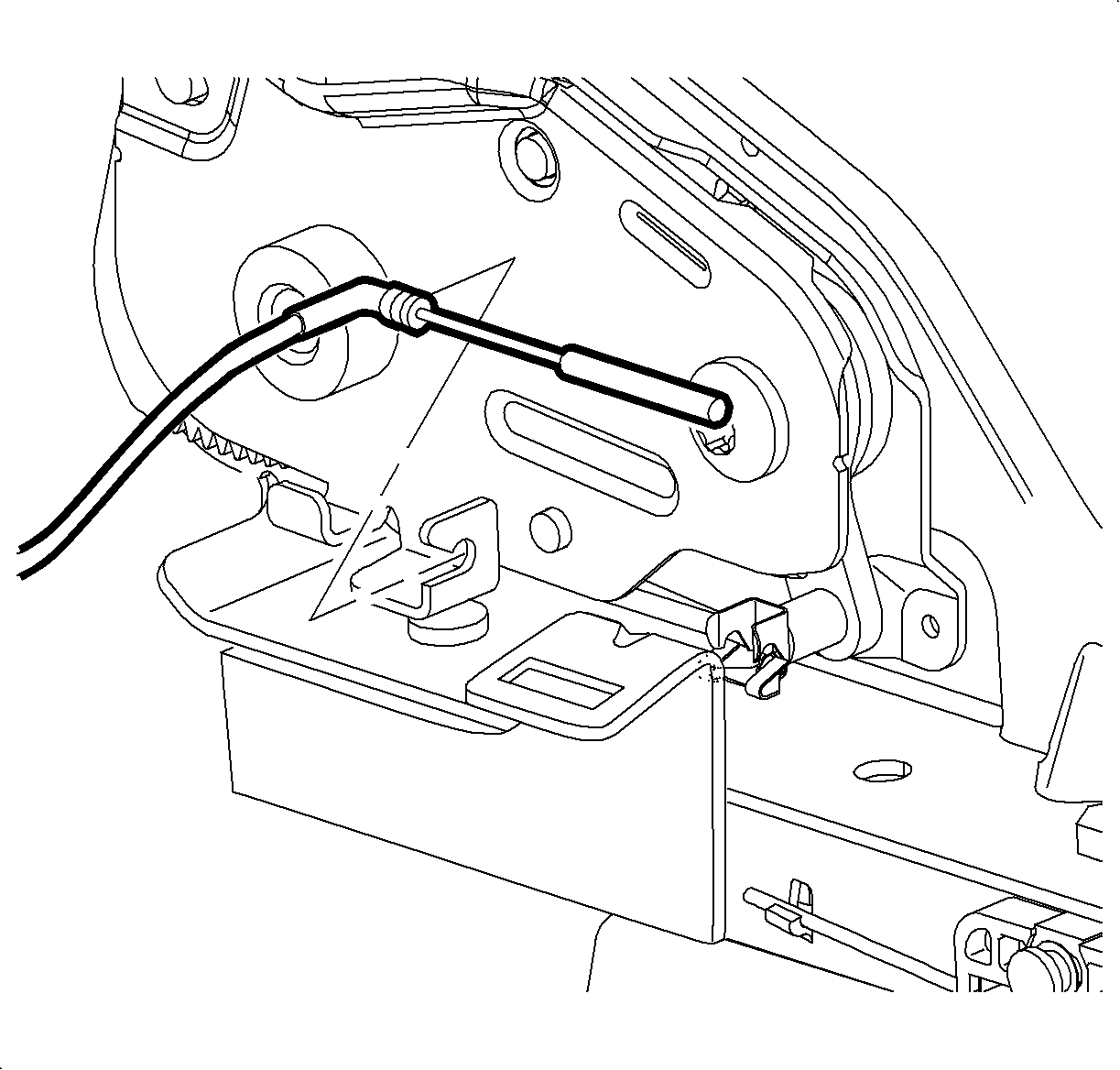

    3. Fig 2: Seat Recliner Cable
    GM987135Courtesy of GENERAL MOTORS CORP.
  3. Remove the slack from the recliner cable by turning the threaded end of the cable in the clip.
  4. Install the seat cushion cover/pad assembly. Refer to Seat Cushion Cover and Pad Replacement - Front .
  5. Install the seat into the vehicle. Refer to Seat Replacement - Front Bucket .
