Removal Procedure

WARNING: This page is about a different car, the 2003 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

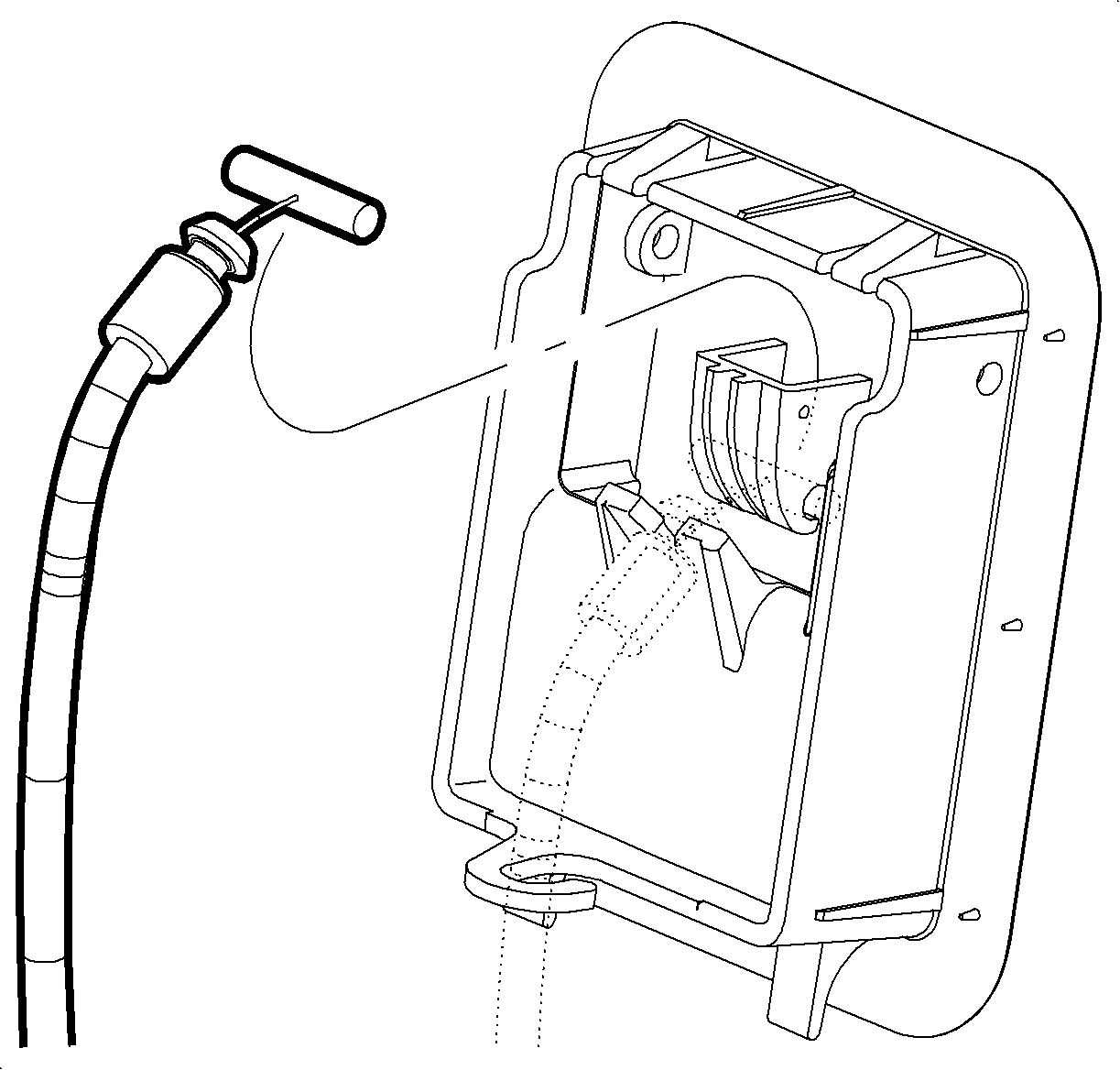

Fig 1: Removing Fastener From Rear Seat Back Latch

Courtesy of GENERAL MOTORS CORP.

Remove the fastener from the rear seat back latch and pull the latch out from the seat back assembly.

Fig 2: Seat Back Recliner Handle & Cable

Courtesy of GENERAL MOTORS CORP.

Detach the latch cable from the latch.

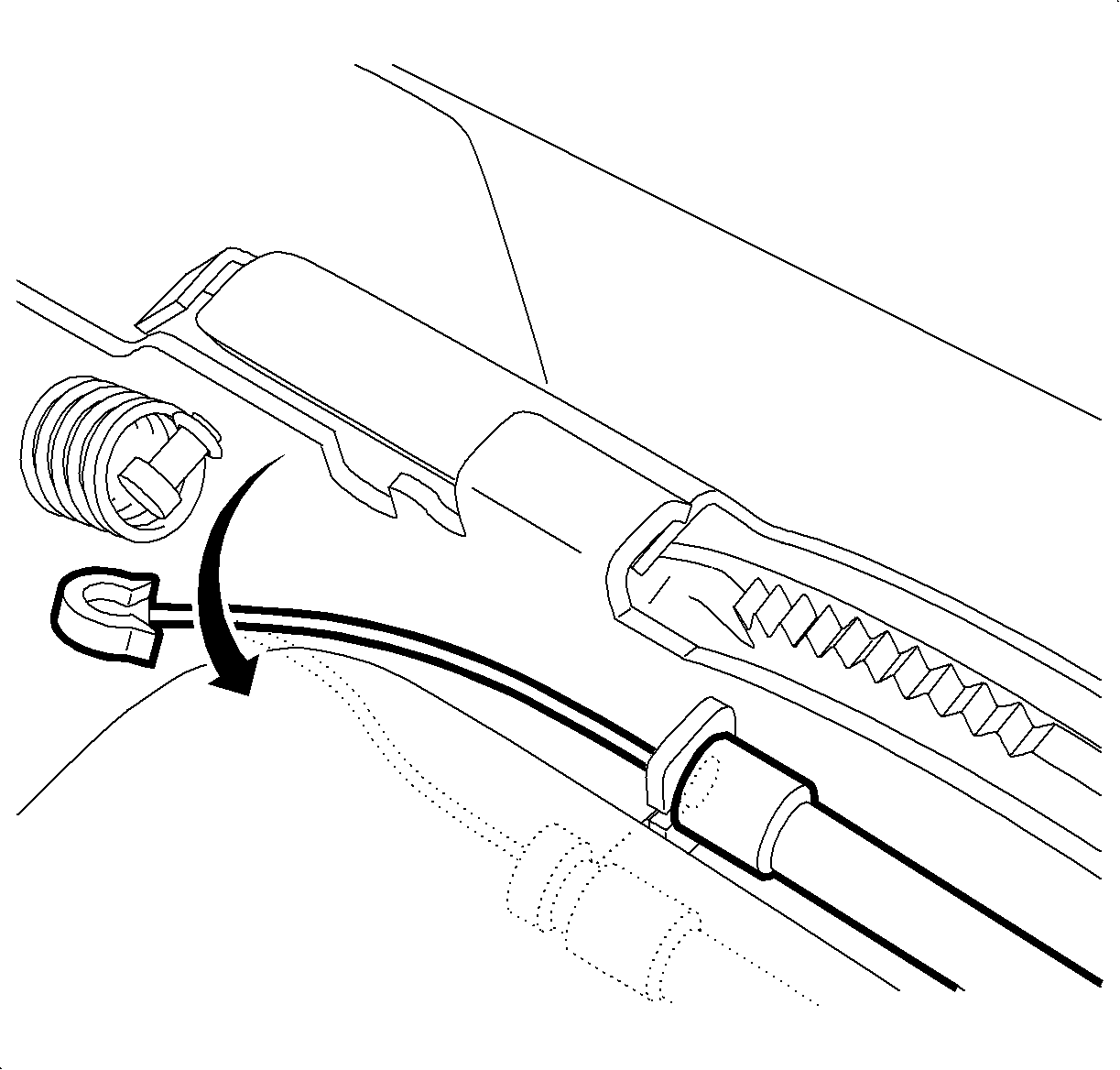

Fig 3: Disconnecting Latch Cable

Courtesy of GENERAL MOTORS CORP.

If you are going to replace the cable, disconnect the latch cable at the seat recliner mechanism.

Fig 4: View Of Lower J-Hook Retainer

Courtesy of GENERAL MOTORS CORP.

Open the J-strip at the bottom of the seat cover.

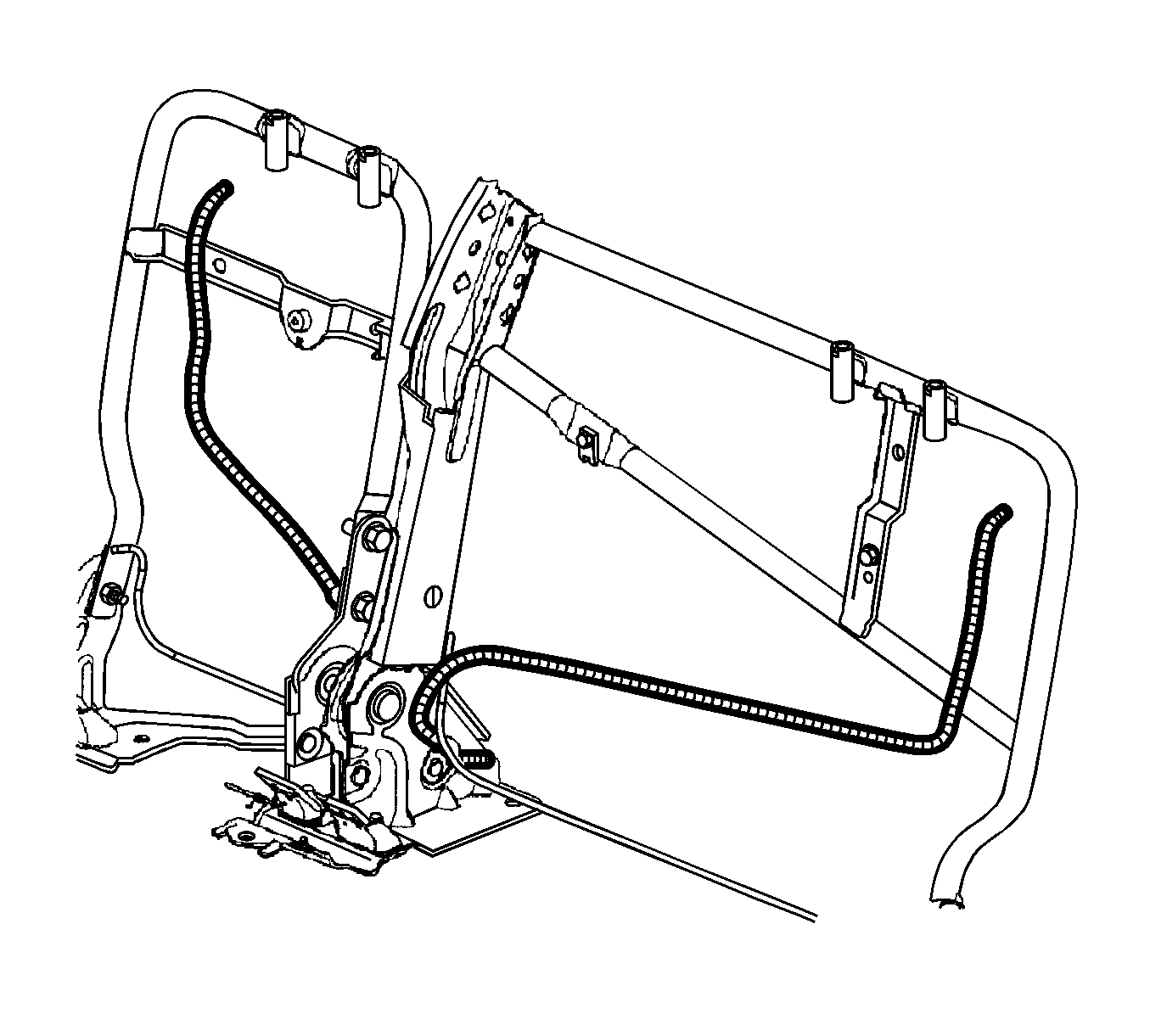

Fig 5: Replacing Cable Out Of Seat Back Assembly

Courtesy of GENERAL MOTORS CORP.

Pull the cable out from the seat back assembly.
