Removal Procedure
WARNING: This page is about a different car, the 2003 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

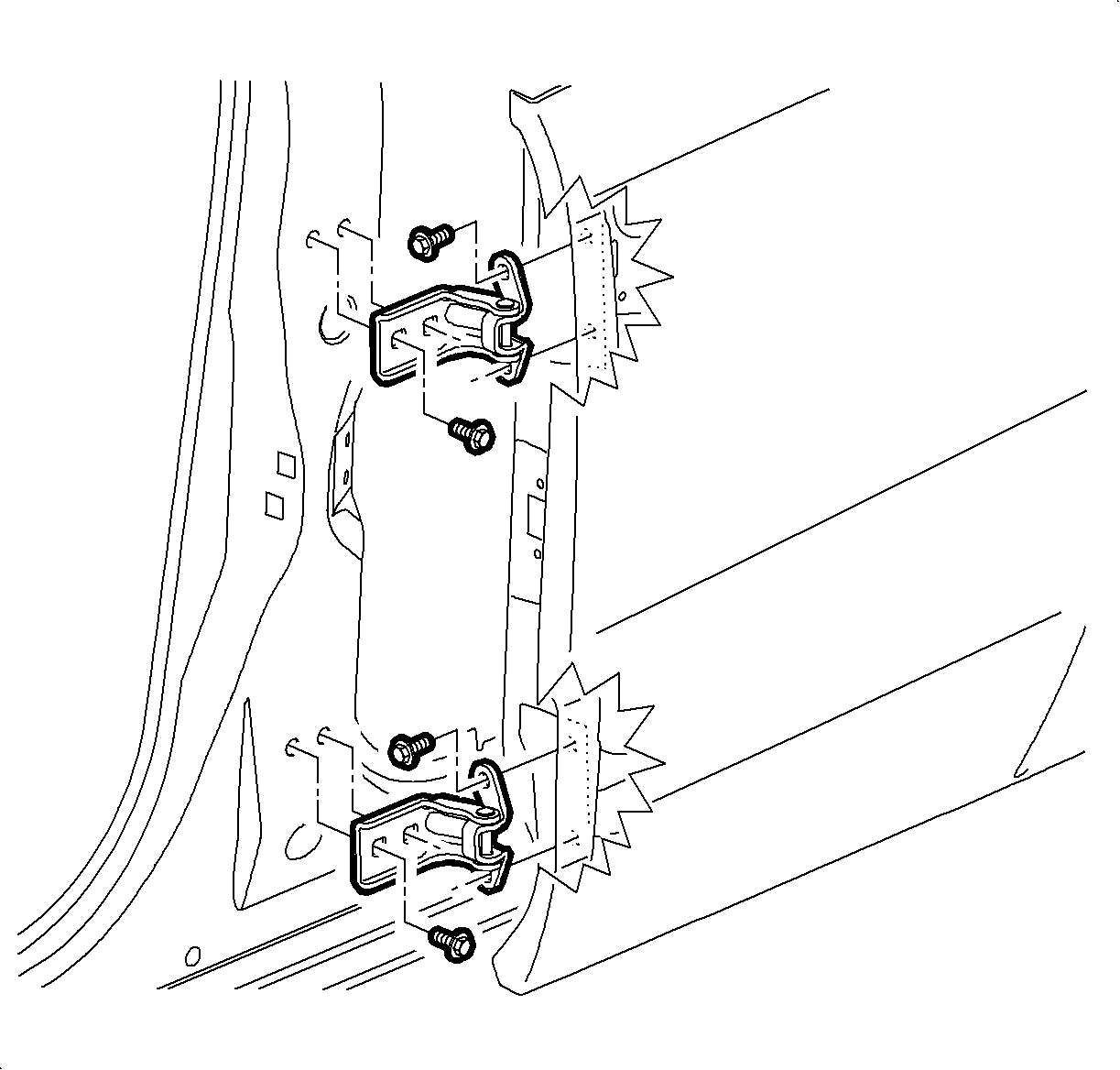

- Mark around the hinge location with a soft marker for installation alignment purposes.
- Support the door.
- With the door fully latched on the striker, remove the hinge to door bolts.
- Remove the hinge to body bolts and remove the hinges one at a time.
CAUTION:
In order to prevent SIR deployment, personal injury, or unnecessary SIR system repairs, do not strike the door or the door pillar in the area of the side impact sensor (SIS). Turn OFF the ignition and remove the key when performing service in the area of the SIS.
