Data Link Connector (DLC) Schematics (M/T)

WARNING: This page is about a different car, the 2003 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

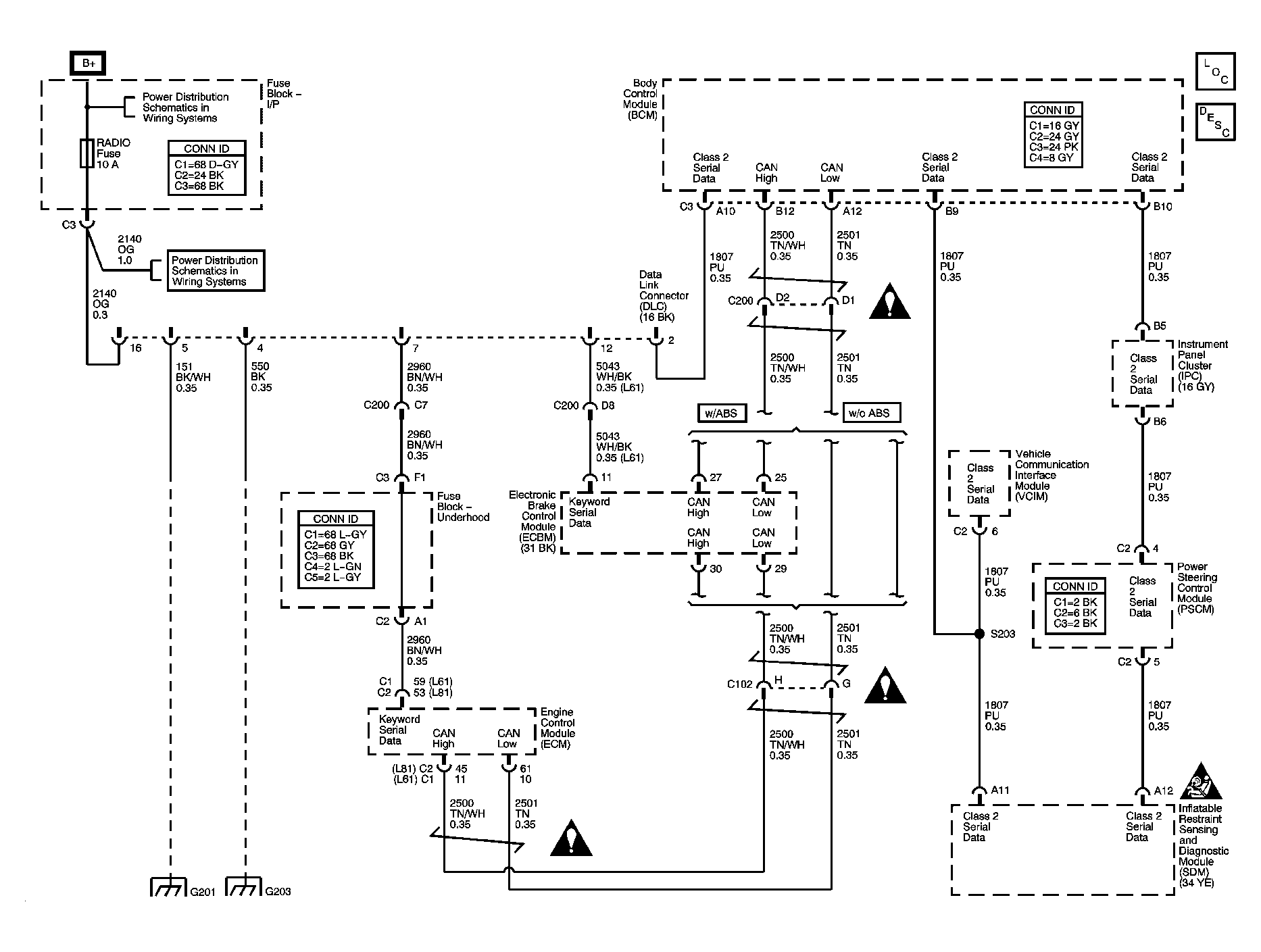

Fig 1: Data Link Connector (DLC) Schematics (M/T)
GM1210295Courtesy of GENERAL MOTORS CORP.
