Starting and Charging Schematics

WARNING: This page is about a different car, the 2003 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

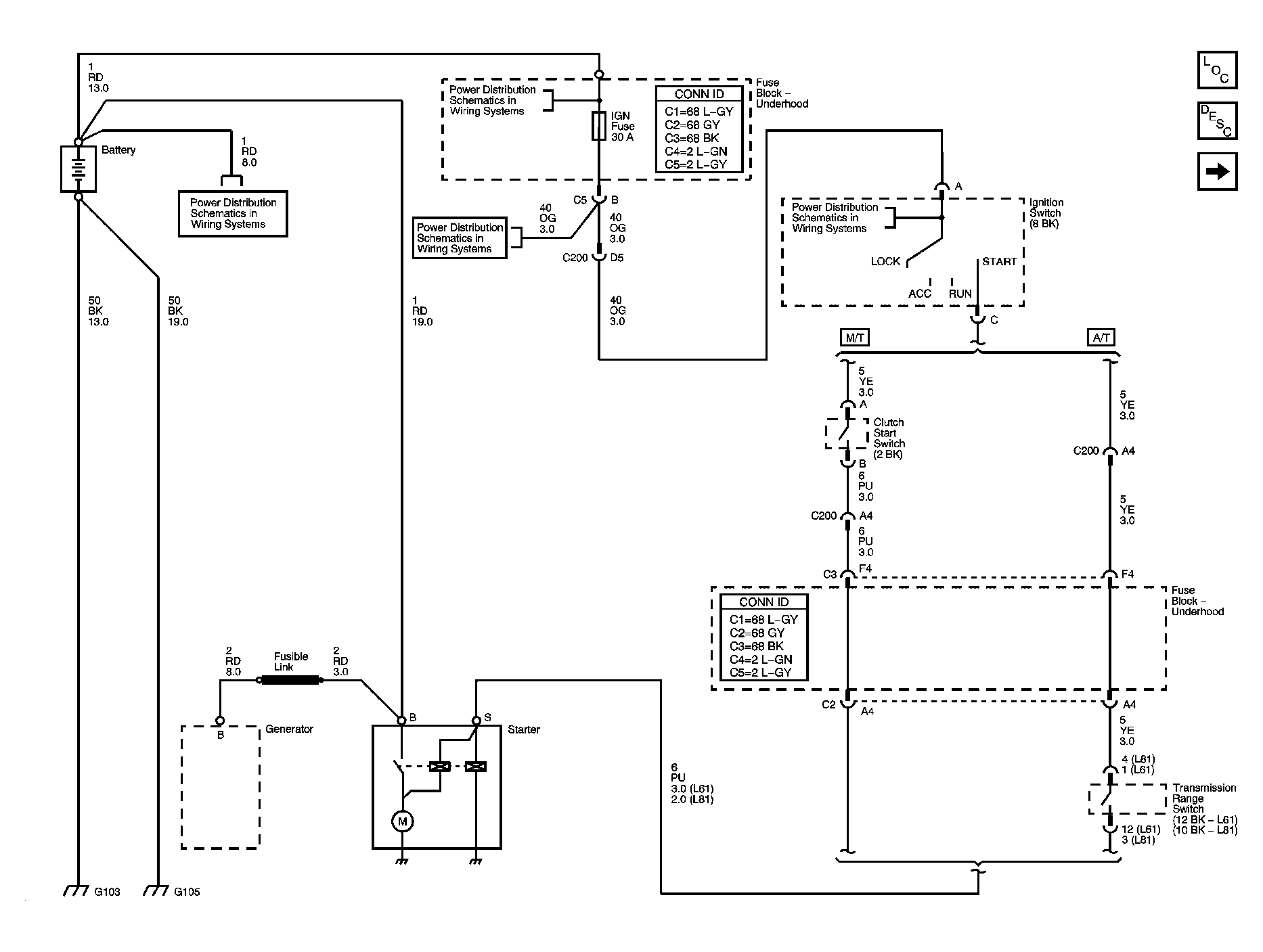

Fig 1: Starting & Charging Schematics
GM1204046Courtesy of GENERAL MOTORS CORP.

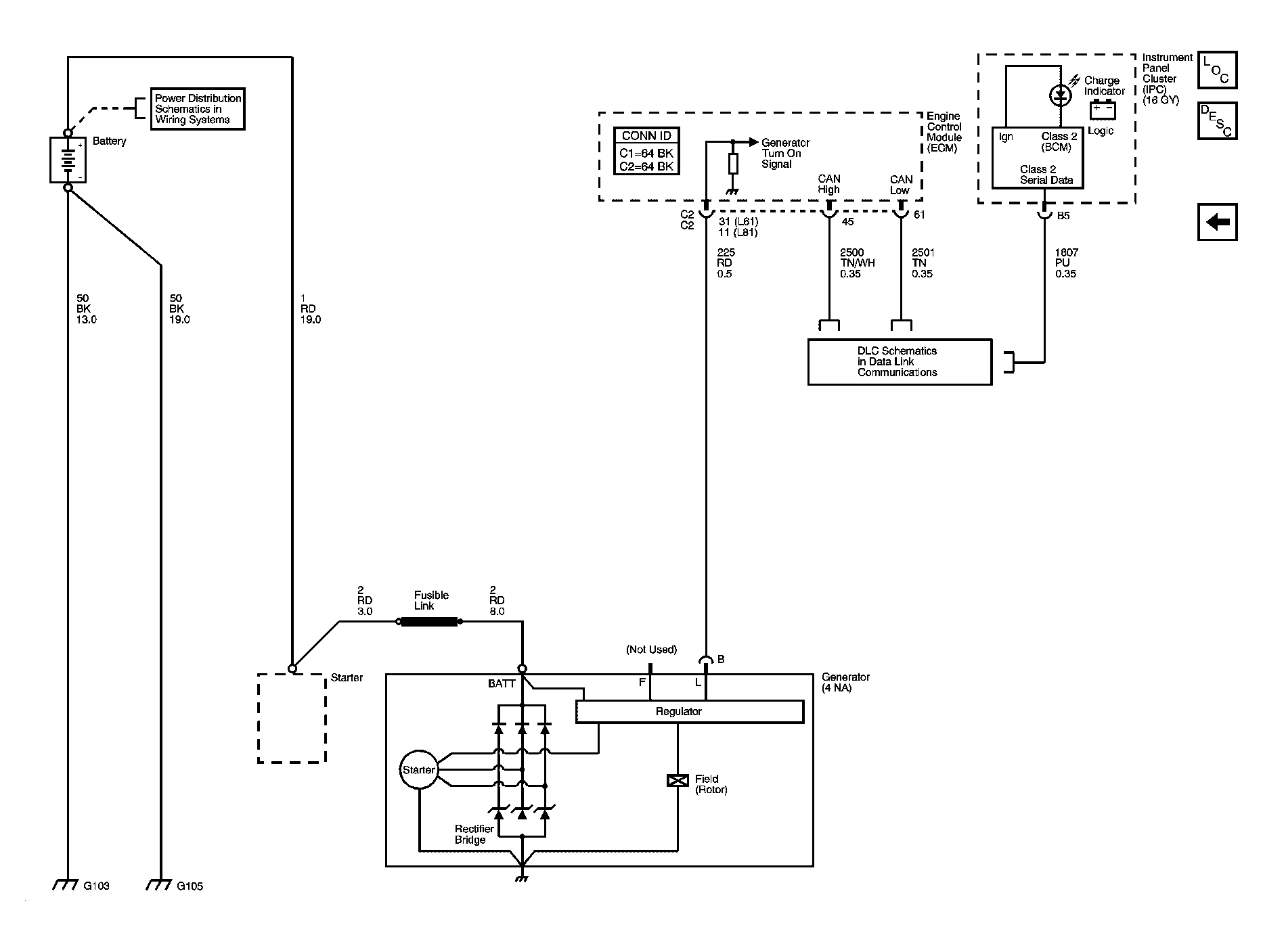

Fig 2: Charging & Indicators
GM1204048Courtesy of GENERAL MOTORS CORP.
