Exterior Lights Schematics

WARNING: This page is about a different car, the 2003 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

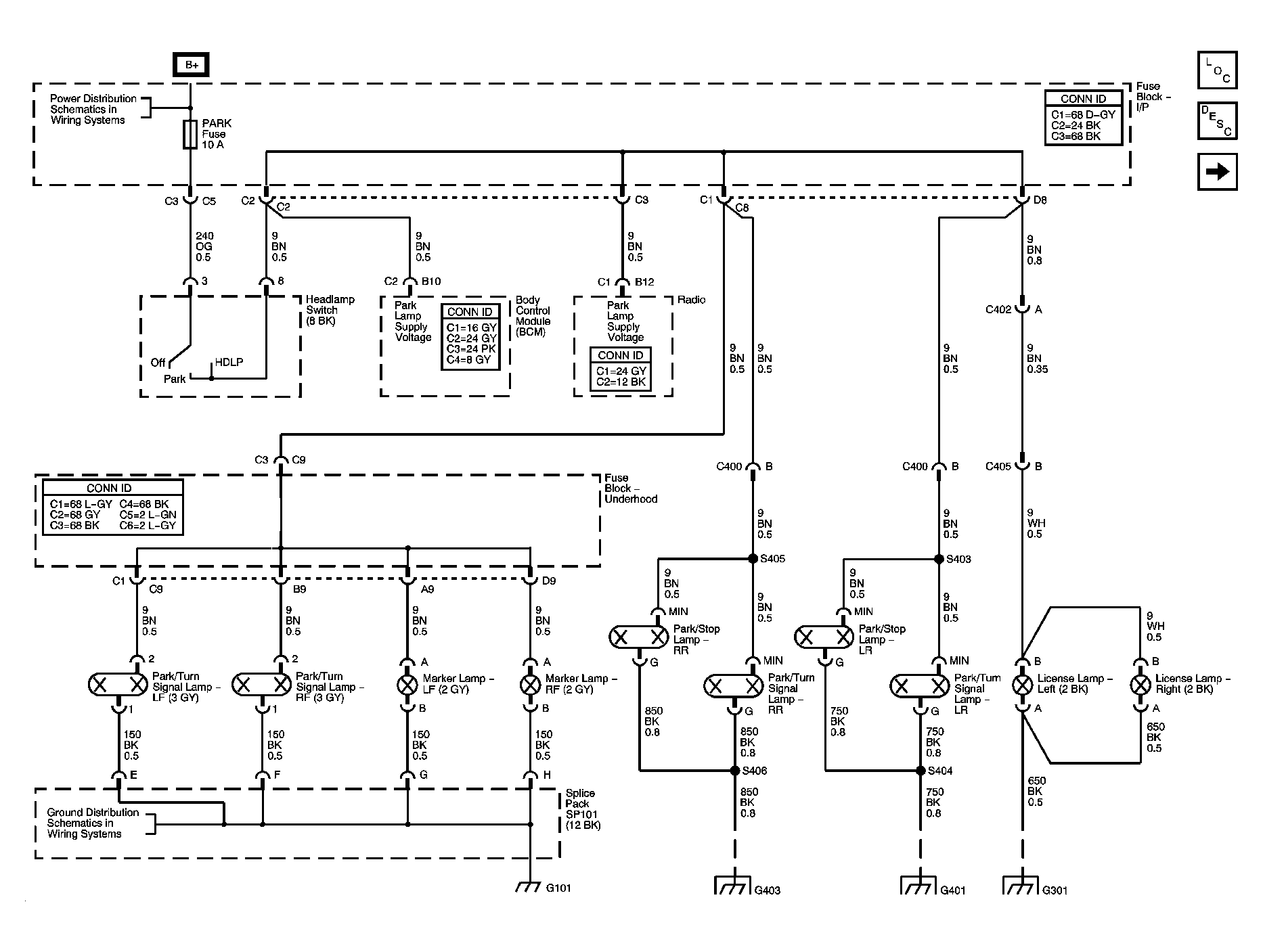

Fig 1: Park Lamps

Courtesy of GENERAL MOTORS CORP.

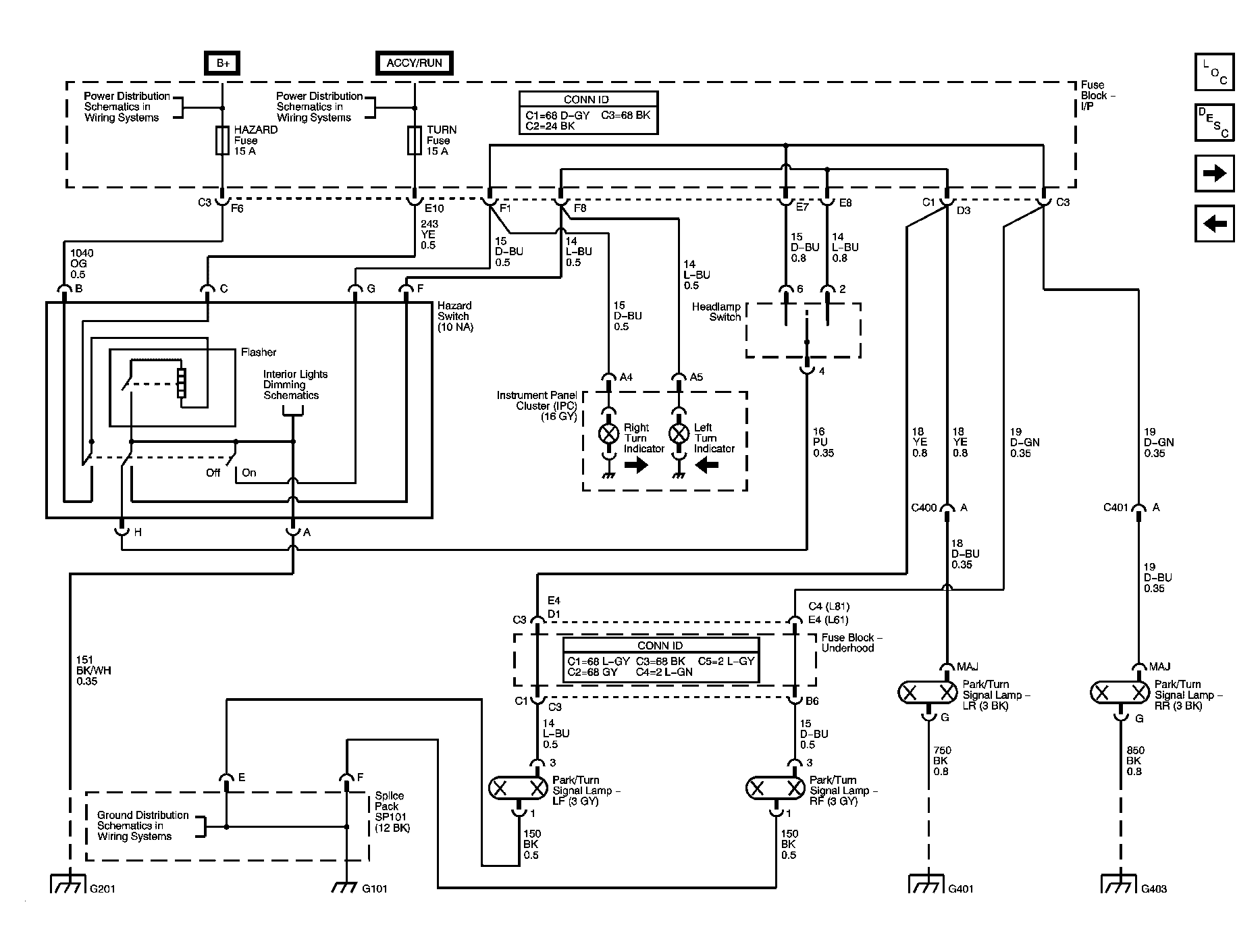

Fig 2: Hazards & Turn Signals

Courtesy of GENERAL MOTORS CORP.

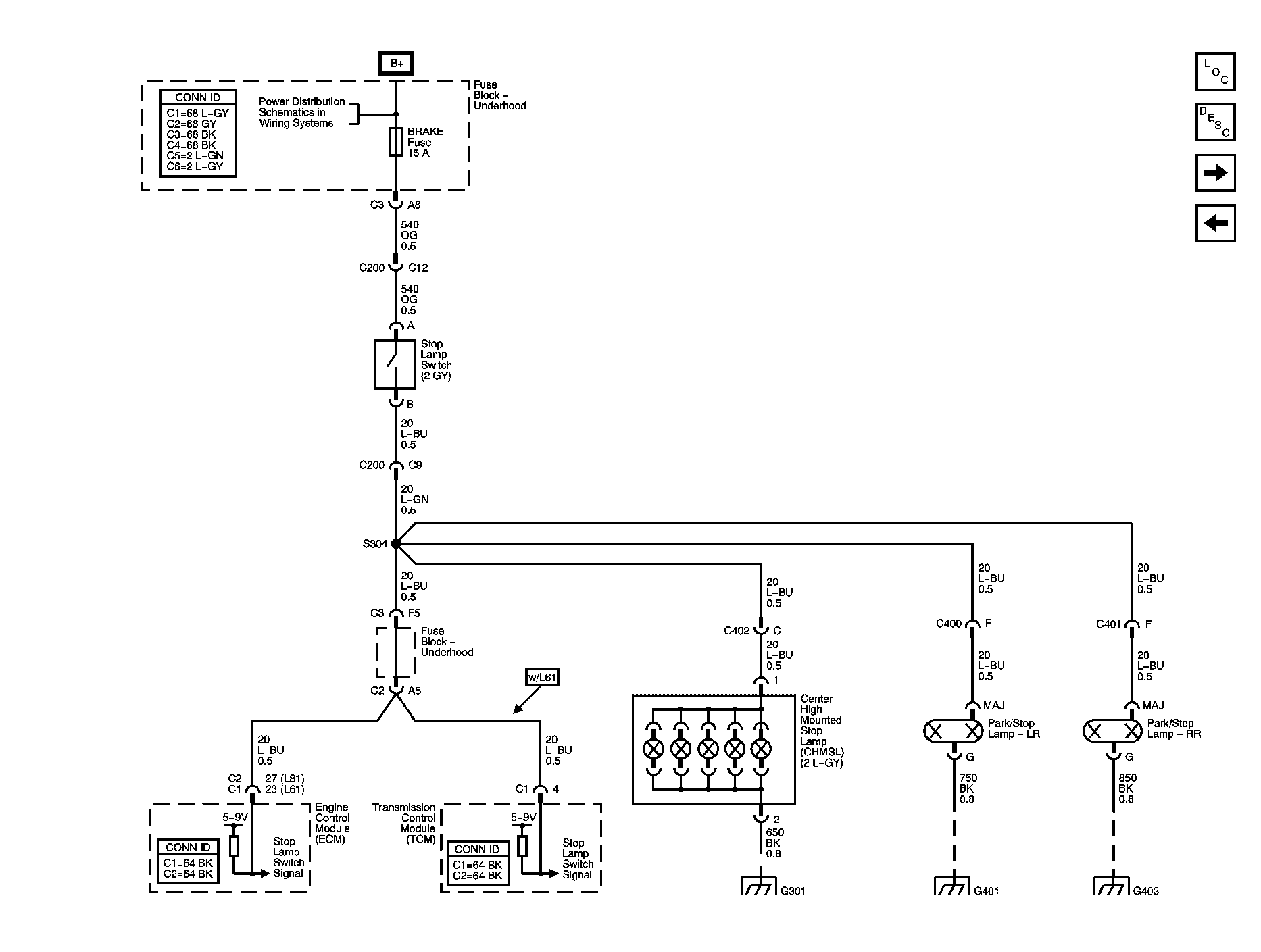

Fig 3: Stop Lamps

Courtesy of GENERAL MOTORS CORP.

Fig 4: Back-up Lamps

Courtesy of GENERAL MOTORS CORP.
