Section 1728 (Entertainment System)
>>
Schematic and Routing Diagrams
>>
Radio/Audio System Schematics (w/ U1C/UM7)
Radio/Audio System Schematics (w/ U1C/UM7)
WARNING:
This page is about a different car, the 2003 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

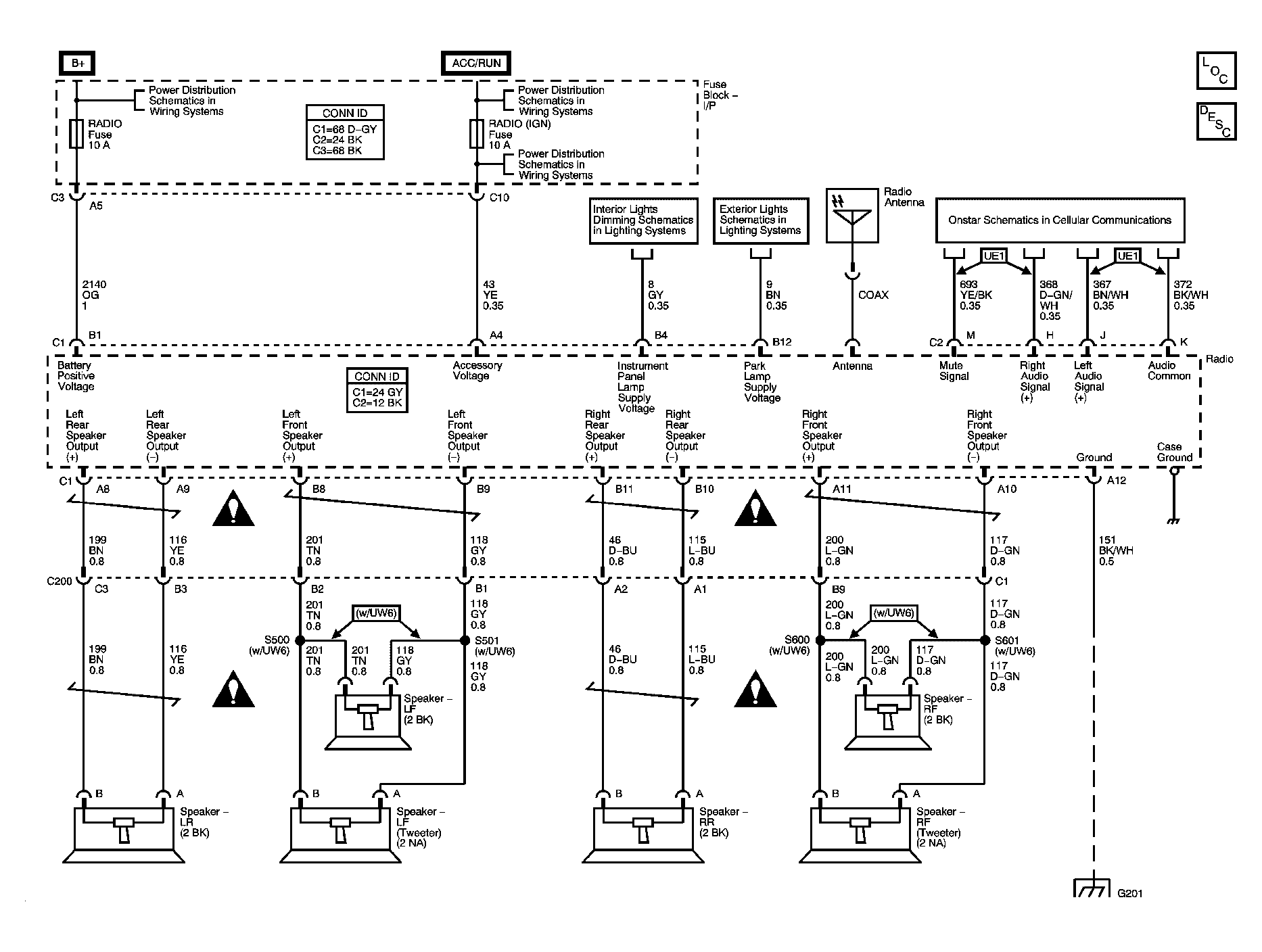

Fig 1: Radio/Audio System Schematics (w/ U1C/UM7)
Courtesy of GENERAL MOTORS CORP.
