Removal Procedure

WARNING: This page is about a different car, the 2003 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: View Of Drain Valve

Courtesy of GENERAL MOTORS CORP.

Drain the coolant. Refer to Draining and Filling Cooling System .

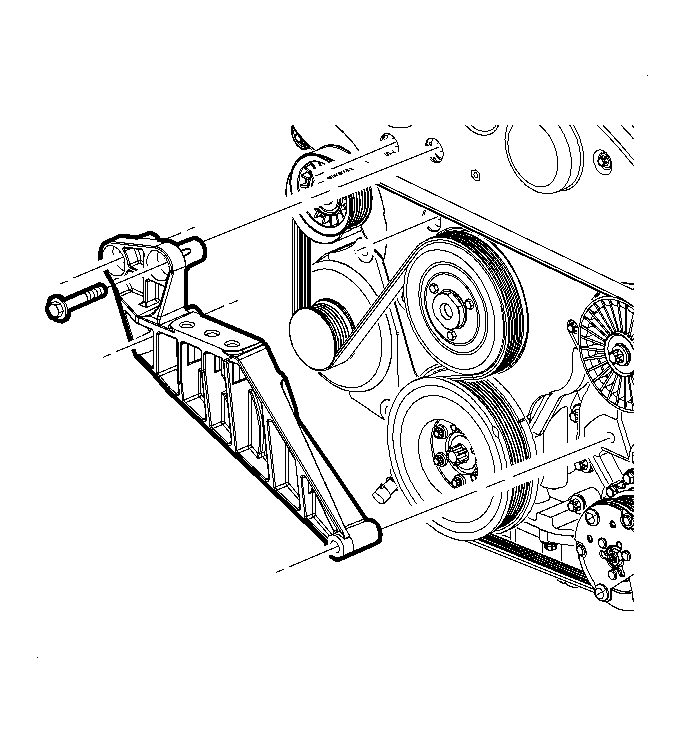

Fig 2: Front Timing Belt Cover (L81)

Courtesy of GENERAL MOTORS CORP.

Remove the front timing belt cover. Refer to FRONT COVER .

Fig 3: Water Pump

Courtesy of GENERAL MOTORS CORP.

IMPORTANT:

When a vehicle is diagnosed to have coolant leaking inside the timing belt cover, a visual inspection of the timing belt should be completed. If there is any indication that coolant has leaked onto the timing belt (i.e. wetness, staining, etc.), the timing belt should be replaced.
When replacing the water pump, coolant will be spilled onto the timing belt. Replacement of the timing belt due to coolant spillage on the belt is not necessary.

Remove the water pump assembly bolts.
Remove the water pump and O-ring.
