Removal Procedure

WARNING: This page is about a different car, the 2003 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

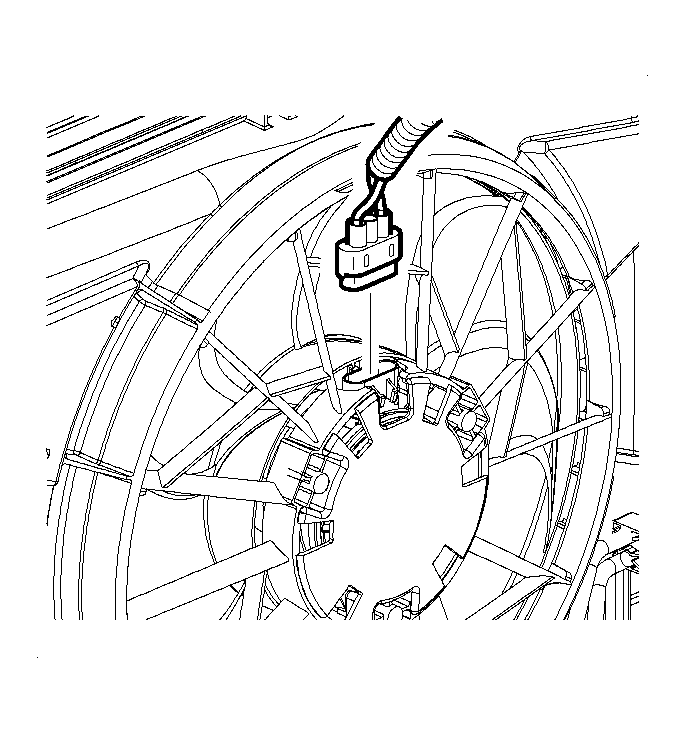

Fig 1: Cooling Fan & Shroud (L61)

GM947025

Courtesy of GENERAL MOTORS CORP.

Remove the front fascia. Refer to Front Fascia removal procedure in Body Front End.
Drain the coolant. Refer to Draining and Filling Cooling System .
Disconnect the fan motor from the engine harness.

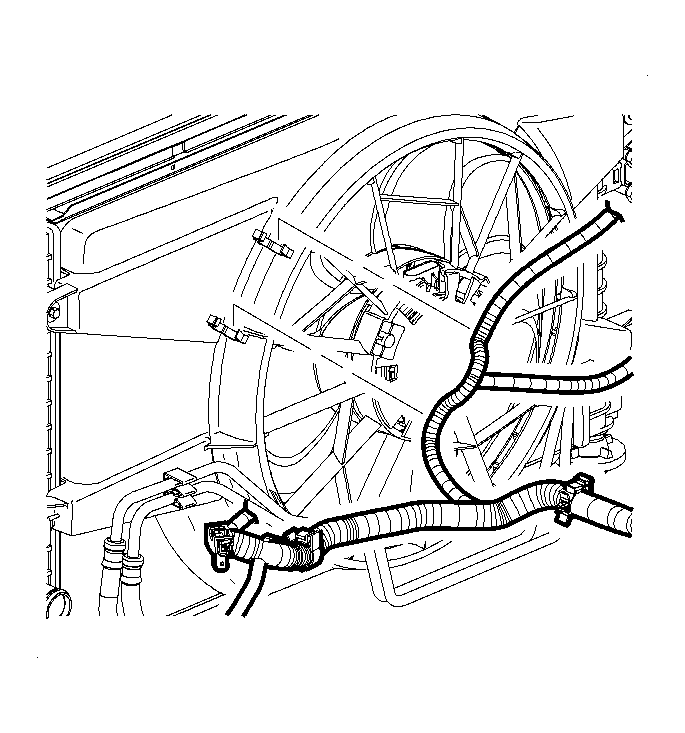

Fig 2: Unclipping Wire Harness From Fan Assembly

GM951431

Courtesy of GENERAL MOTORS CORP.

Unclip the wire harness from the fan assembly.

Fig 3: Unclipping Transaxle Lines From Fan Assembly

GM949017

Courtesy of GENERAL MOTORS CORP.

Unclip the transmission cooler lines from the fan assembly.

Fig 4: Battery Box Inlet Air Duct

GM948926

Courtesy of GENERAL MOTORS CORP.

Remove the battery box inlet air duct.

Fig 5: View Of CRFM Closeout/Splash Panel To Condenser

GM948958

Courtesy of GENERAL MOTORS CORP.

Remove the condenser splash shield.

Fig 6: Radiator Inlet Hose

GM931395

Courtesy of GENERAL MOTORS CORP.

Remove the radiator inlet hose.

Fig 7: Radiator Outlet (L61) Hose Clamp

GM931390

Courtesy of GENERAL MOTORS CORP.

Remove the radiator outlet hose.

Fig 8: View Of CRFM Mounting Brackets To The Radiator Support

GM948980

Courtesy of GENERAL MOTORS CORP.

Remove the upper CRFM bracket assemblies.

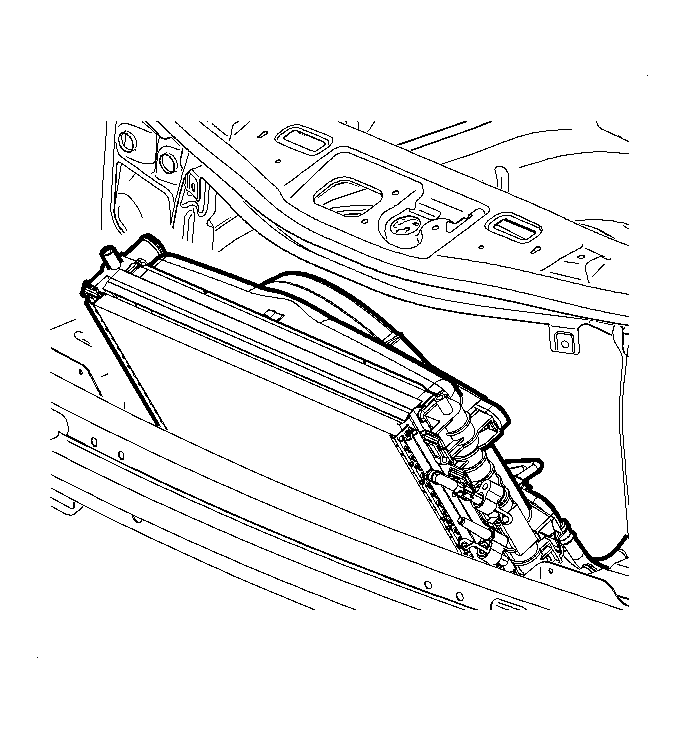

Fig 9: Lifting CRFM Assembly From Lower Mounts

GM949028

Courtesy of GENERAL MOTORS CORP.

Lift the CRFM assembly from the lower brackets and carefully move the bottom of the assembly rearward while tilting the top forward.

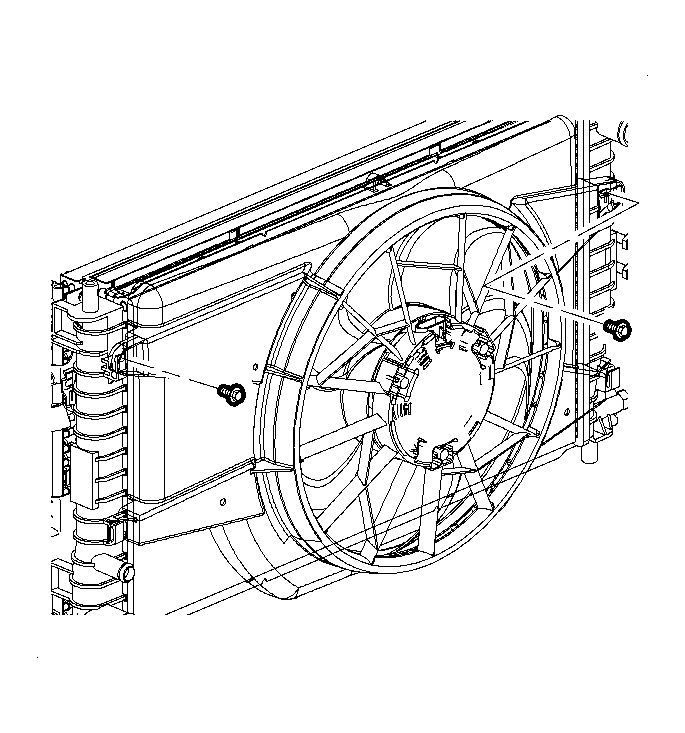

Fig 10: Fan Assembly To Radiator Bolt

GM931378

Courtesy of GENERAL MOTORS CORP.

Remove the fan assembly to radiator bolt.
Remove the fan assembly.
